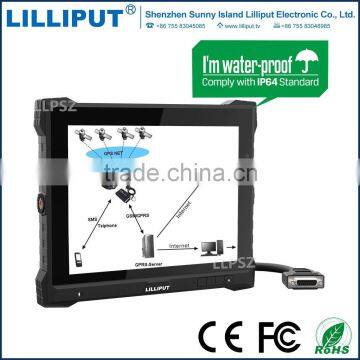

Lilliput 9.7 inch Multi Touch Capacitive Mobile Data Terminal Vehicle Driver Management System

 Display Screen

  9.7" IPS

  Resolution

  1024×768

  Touch Panel

  Capacitive

  Brightness

  350cd/m2

  Aspect Ratio

  4:3

  Contrast

  900:1

  Viewing Angle

  178°/ 178°(H/V)

  OS

  Android 4.3.1 / Linux Debian 7.0 / WinCE  7.0

  CPU

  Freescale iMX.6 Quad core 1.0GHz

  GPU

  3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP

  Media

  Audio: MP3, MP4, WMA, WAV…
  Video Decode 1080p60 H.264
  Video Encode 1080p30 H.264 BP/ Dual 720p

  Core

  ARM Cortex-A9

  Memory

  ROM: 8GB Flash, RAM: DDR3-1066 (533MHz) 1GBytes, up to 2GBytes

  Expansion Storage

  Micro SD card slot, USB Device 2.0, USB host 2.0

  LAN

  LAN Ethernet

  Interface

  RS232×4 / RS232×3, RS485×1 / RS232×2, RS422×1, RS485×1
  (optional RS485 / RS422 interface)
  GPIO input×4, GPIO output×6

  Audio

  Ear phone jack ×1, Microphone jack (optional)

  Optional Extensions

  3GWi-Fi & BluetoothCameraGPSACCPoE (Power over Ethernet)

  Power Consumption

  9W(Normal mode), 24W(Charging mode)

  Working Temperature

  -20 - 60ºC

  Storage Temperature

  -30 - 70ºC

  Power Supply

  DC 9-36V

  Battery

  Built-in 5000mAh (optional)

  Dimension(LWD)

  252 × 211 × 37mm

  Weight

  1340g

1. Extended cable

1 piece

2. Power adapter

1 piece

3. Mini USB cable

1 piece

4. Driver disk

1 piece

5. Operation manual

1 copy

6. Touch pen

1 piece

7. 9.7" Gimbal bracket (optional)

1 piece

8. VESA 75mm rail slot(optional)

1 copy

9. VESA folding bracket(optional)

1 piece

10. GPS antenna(optional)

1 piece

11. 5000mAh Li-ion battery(optional)

1 piece

12. Micro SD card(optional)

1 piece
