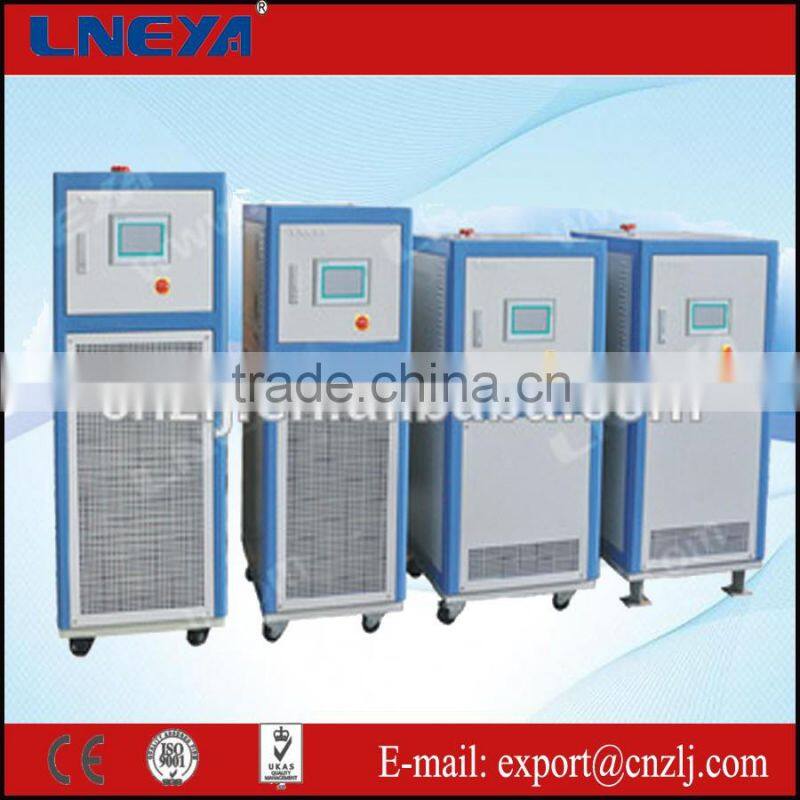

Thermostatic Cooling Unit Applied to Reactor Temperature Range From - 25 up to 200 Degree
- Shanghai
You May Like
-
Mini Chiller Applied to Rotary Evaporator
-
Chiller With Good Quality Temperature Range From 5~35 Degree
-
Refrigerated Baths and Circulators Temperature Range From - 25 up to 200 Degree
-
Single Refrigeration Equipment Applied to Reactor Temperature Range From - 105 up to -60 Degree
-
Cooling and Heating System Applied to Vacuum System Temperature Range From - 25 up to 200 Degree
-
High Precision Cooling and Heating Unit Apply to Glass-Lined Reactor Temperature Range From -50 to 250 Degree
Product Details
| Type | Other, Temperature control system | Place of Origin | Jiangsu, China | |
| Brand Name | LNEYA | Model Number | HR-25N | |
| Certification | CE | After-sales Service Provided | Overseas third-party support available |
Product Description
Cooling And Heating Temperature Control systems
HR-25N -25℃ ~ 200℃ Parameter
Description:
The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60℃.
The cycle is closed,there is no oil mist at high temperature and no water vapor at low temperature; Wide working temperature range of heat transfer oil; The entire circulation system without use of mechanical and electric valve.
FEATURES:
1.Wide working temperature range with cooling and heating function, temperature range: -20~200℃.
2.With 2pcs of LED display controller, can show the setting temperature & actual value, and alarm value for overtemperature.
3.Efficient fast, simple topping up liquid.
4.Ensure fast cooling at high temperature and can acheive 200℃ ~ -20℃ temperature control continuously.
5.The cycle system is closed, there is no oil mist and water vapor happend, so as to assure the lab safety and heat transfer fluid lifetime.
6.Use copeland brand compressor,circulation pump,stable performance and reliable quality.
7.Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
8.Use the same kind of heat conducting in the whole heating-cooling cycle when control heat conducting medium temperature.
9.High-lift design and meet the long-distance transportation of heat conducting medium.
Model | HR-25N | HR-35N | HR-50N | HR-70N | HR-100N | HR-150N | |
Temperature range ℃ | -25℃~200℃ | ||||||
Controller | PID adaptive controller | ||||||
Temp. control | Heat-conducting medium outlet temp. control | ||||||
Communication protocol | MODBUS RTU Protocol, RS 485 Interface | ||||||
Temperature feedback | Heat-conducting medium temperature feedback PT100 | ||||||
Temp. accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | |
Heating power | 2.5kW | 3.5kW | 5.5kW | 7kW | 10kW | 15kW | |
Cooling capacity | 200℃ | 2.5kW | 3.5kW | 5.5kW | 7kW | 10kW | 15kW |
100℃ | 2.5kW | 3.5kWW | 5.5kW | 7kW | 10kW | 15kW | |
20℃ | 2.5kW | 3.5kW | 5.5kW | 7kW | 10kW | 15kW | |
-5℃ | 2kW | 3 kW | 4.5kW | 6.6kW | 8kW | 12kW | |
-20℃ | 1kW | 1.8kW | 2.8kW | 3.8kW | 4.6kW | 7kW | |
Circulation pump | Max25L/min 2BAR | Max35L/min 2BAR | Max35L/min 2BAR | Max35L/min 2BAR | Max50L/min 2BAR | Max50L/min 2BAR | |
Compressor | Copeland | Copeland | Copeland | Copeland | Copeland | Copeland | |
Evaporator | Plate heat exchanger | ||||||
Operation panel | Display setting temperature and testing temperature; 7-inch Touch screen display | ||||||
Safety protection | Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection. | ||||||
Closed circulation system | The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature. | ||||||
Refrigerant | R-404A | ||||||
Connection size | DN-15 | DN20 | DN20 | DN20 | DN20 | DN-20 | |
Connection size (air-cooled) | 400*600*1050 | 500*680*1350 | 550*680*1450 | 550*680*1650 | 620*680*1550 | 750*750*1750 | |
Weight (air-cooled) | 115KG | 135kg | 160kg | 205kg | 250kg | 280kg | |
Power | AC 220V 50HZ 4kW (max) | AC 380V 50HZ 6kW (max) | AC 380V 50HZ 8kW (max) | AC 380V 50HZ 11kW (max) | AC 380V 50HZ 14kW (max) | AC 380V 50HZ 21kW (max) | |
Case material | Cold rolled steel | ||||||
Optional | Optional 7-inch color touch screen controller, temperature curve record, data export to excel format. | ||||||
Optional | SUS304 case material | ||||||
Optional power | 220V 60HZ three-phase, 440V~480V 60HZ three-phase | ||||||
2015 Corning Reactor and its Ancillary Equipment Technology Exchange Meeting
