Product Details
| Brand Name | LNEYA | Model Number | SC-5005 | |
| Place of Origin | Jiangsu, China |
Product Description

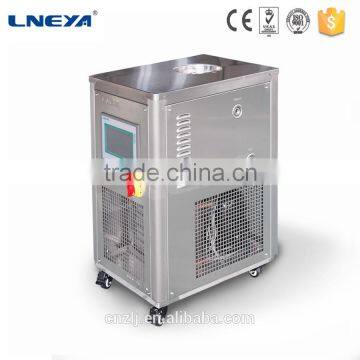

-50~100 degree Laboratory Refrigerated Heating Thermostatic Devices
Product Application
Widely used in petrochemical, chemical, pharmaceutical, bioengineering, life science, Light industry and food,Industry, sample testing and so on, provide a high-precision constant temperature liquid environment.
Safety system
• Refrigeration system high and low pressure protection and display
• Condensing temperature display and protection
• A variety of fault alarm (over-temperature alarm, sensor alarm, high pressure alarm, compressor overheating alarm;)
• Boot delay protection;
• All parts are safety grounding.
Techinial parameter
Model | SC-5005 | |
Temperature range | -50.00℃~100.00℃ | |
Temperature accuracy | ±0.03℃@ - 40℃ | |
Temperature resolution | 0.01K | |
Tank volume(mm) | Diameter 200*150 | |
Slot opening sizemm | Diameter 200 | |
Effective volume | 5L | |
Temperature control mode | PID adaptive controller | |
Circulation pump flow rate | 10L/min 0.7bar The default is inside the loop, but it can receive into the outer loop mode | |
Input Display | 7-inch color touch-screen input and display | |
Data record | Temperature curve records, USB data export ( excel format) | |
Alarm function | Over-temperature alarm, sensor malfunction alarm, independent overheat prevention device, refrigeration unit abnormal alarm | |
Sensor | PT100 | |
Heating power | 600W | |
Cooling capacity | 20℃ | 600W |
-20℃ | 400W | |
-35℃ | 300W | |
-45℃ | 200W | |
-60℃ |
| |
-75℃ |
| |
| System defined above 30℃ prohibit open refrigerator | |
Material tank | SUS304 | |
Case material | SUS304 | |
Interface size | 12mm (Outer diameter) | |
Compressor | SECOP | |
Dry filter | Emerson | |
Refrigerant | LNEYA mixed refrigerant | |
Machine size (mm) | 400*550*750 | |
Power supply | 220V 50HZ 1200W (max) | |
Total Weight | 55kg | |
