Galvanized Steel Shutter Door Roll Forming Machine
- TIANJIN XINGANG
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Tile Forming Machine, roller shutter door forming machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | AS | Model Number | According customers' requirement | |
| Power(W) | 3+3kw | Voltage | 380V 50Hz 3phases, 380V | |
| Dimension(L*W*H) | 7.35*1.2*1.5 | Weight | 3.2T | |
| Certification | CE/ISO9001 | Warranty | 1 Year, 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Company information:
We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame.
Customers show
Parameters of galvanized steel shutter door roll forming machine
Item | Parmeters | |
Raw material | Type |
Galvanized sheet |
Thickness(mm) | 0.5-1.0 | |
Decoil Type
|
3T Manual | |
Processing Speed |
8-15m/min | |
Roller stands |
13 stands | |
Main Shaft Material |
GCR15, HRC58-62° | |
Main Shaft Diameter |
65mm | |
Main Motor power |
5.5KW(The actual design may increase the motor power) | |
Transmission |
Chain type | |
Working flow
Decoiling the sheet — Sheet guiding — Roll forming — Measure
length Cutting the panel— panels to the supporter
Components of machine:
Decoiler | 1set (3MT capacity) |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |

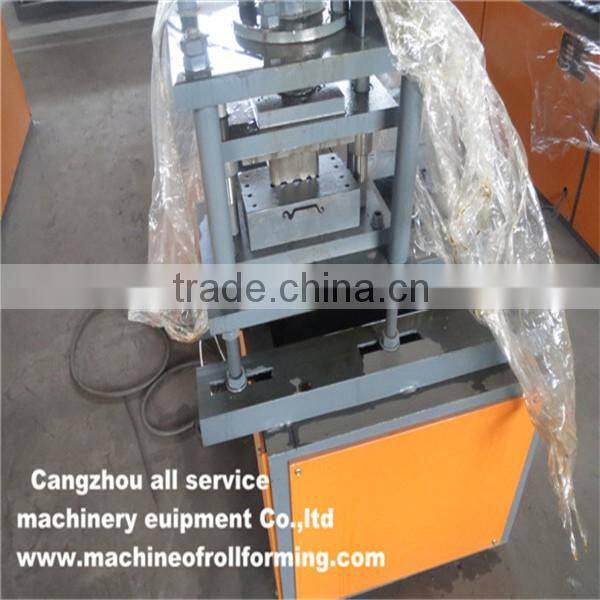

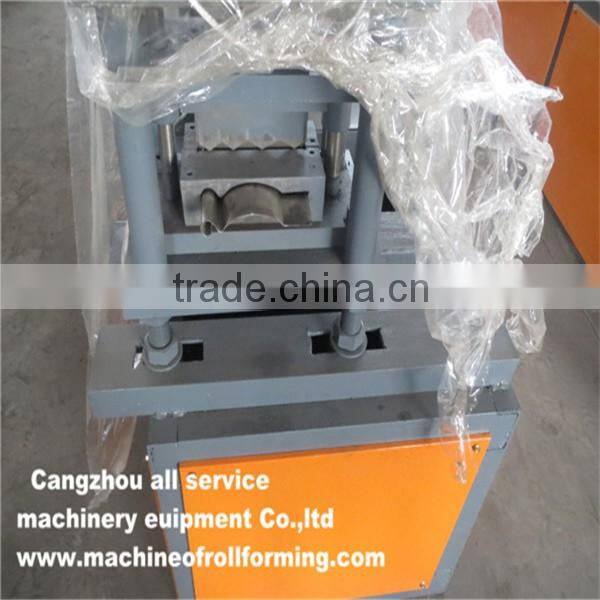

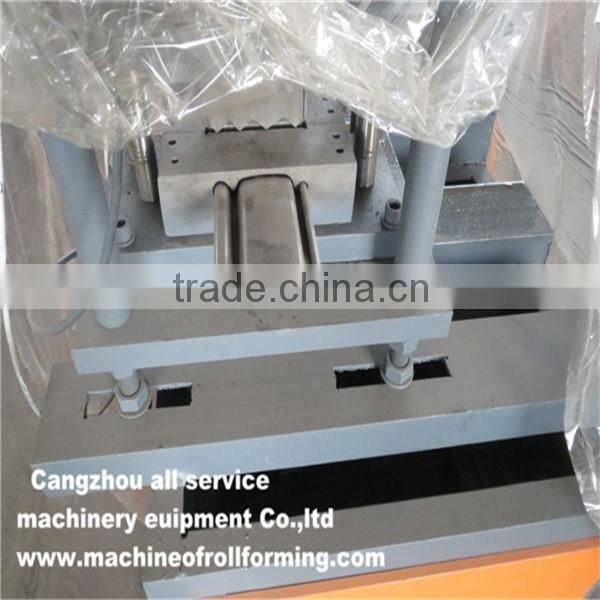

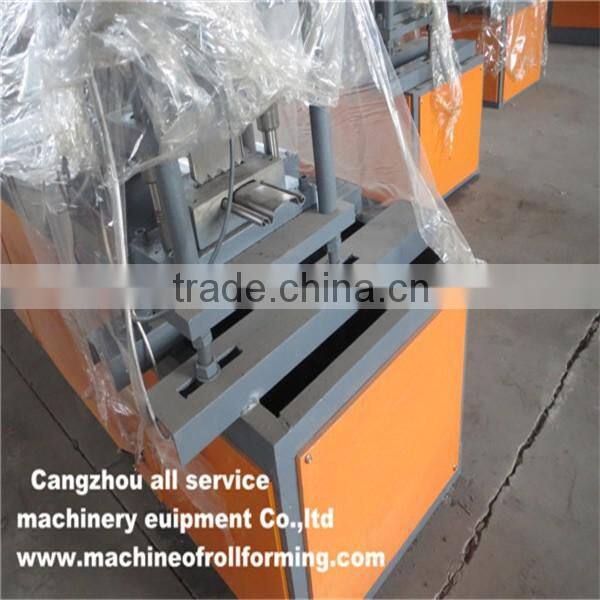

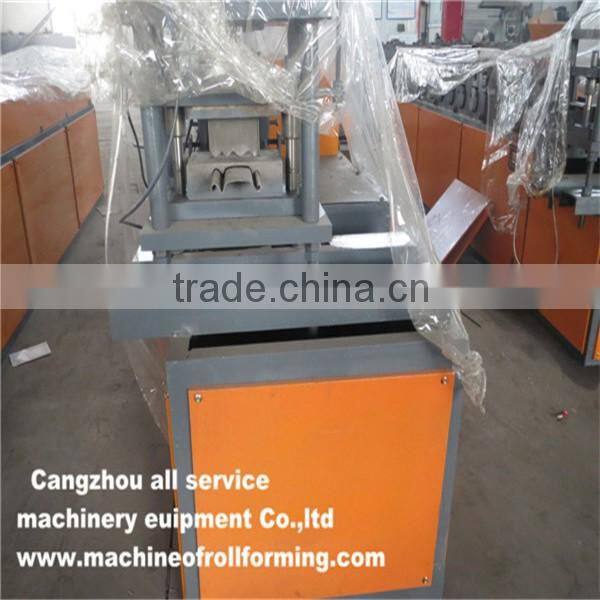

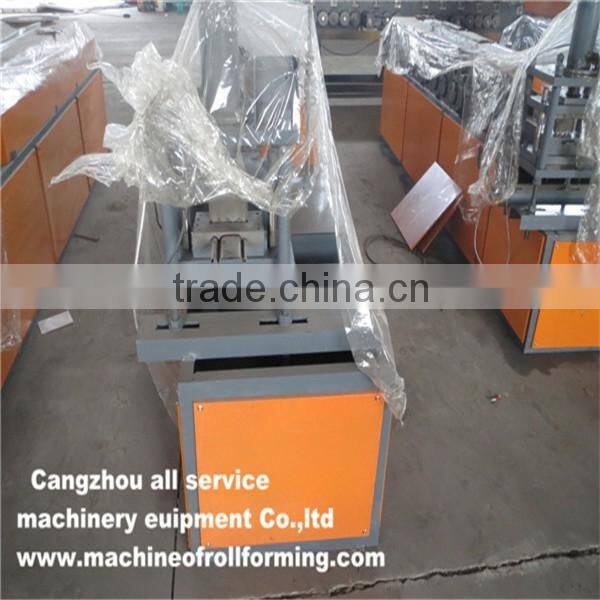

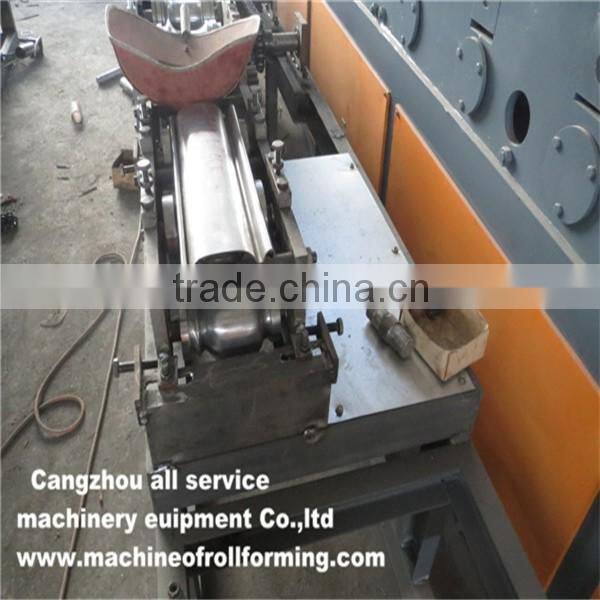

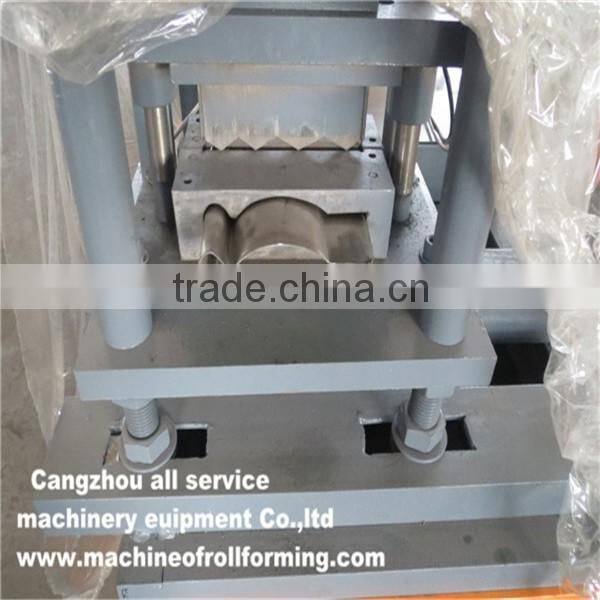

Machine pictures
1:Nude in container with plastic film.
2:We can do the packaging according to your need.
Our machines at customers' workshop
1 | One-year quality assurance for all the machine |
2 | Technical staff available to service machine overseas |
3 | Permanent free for technical support |
4 | Design and produce according to your sample or drawing |
Attentions:
Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free,but you need pay theexpress cost yourself.If after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
Can you be responsible for transport?
Yes,please tell me the destination port or address.We have rich experience in transport.
You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
How long the machine could be made?
Normally speaking, common shutter door roll forming machine could be made within 40 working days.
If you need machines in a hurry, we can make it for you less than a month.
