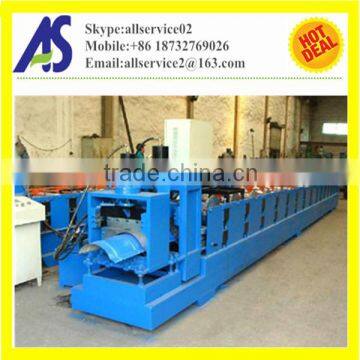

Ridge Panel roll forming machine
- 50 Set / Sets per Month
- Tianjin Xingang Port
- T/T
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-10m/min | Place of Origin | Hebei, China | |
| Brand Name | AS | Model Number | 312 | |
| Power(W) | 4 Kw | Voltage | as your requirement | |
| Dimension(L*W*H) | 7.35*1.2*1.5m | Weight | 3.5T | |
| Certification | CE/ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Cangzhou All Service Machinery Equipment Co.,Ltd. is located in Botou, Cangzhou City - the home of roll forming machine. With 20 years of production experience, we can offer you good quality machine at favourable price. Our main products as below:
1.Roof and wall panel forming machines
2.Corrugated tile roll forming machine
3.Double layer roll-forming machine
4.Joint hidden roll forming machine
5.Downspout and waterspout roll forming machine
6.Metal roll forming machine
7.Sandwich panel roll forming machine
8.Shearing bend slitting Uncoiler curving machine
9.Russia roll forming machinery
10.Especially for Asia type ,Russia type and Africa type
Details of the Ridge Panel Roll Forming machine
(1) Type and Specification: Ridge Panel Roll Forming Machine
(2) Suitable Material:
A. Colored Steel Sheet
B. Galvanized Steel Sheet
C. Aluminum Plating Steel Sheet
D. Aluminum-zinc Steel Sheet
(3) Processing Technique and Deployment Processes:
Manual Decoiler-Roll Forming Machine-PLC System-Hydraulic System-Tile Pressing-Die Cutting-Stack
B.Technical Parameters
1. Configurations: Guiding Platform, Main Machine Of Roll Forming, Electro-Motor, Cutting device, Hydraulic Station, PLC Control Output Table.
2. Electrical control system: PLC control system with famous brand
3. Main Motor Power: 4 KW with cycloidal reducer
4. Pump Power: 4 KW
5. Roll Station: 14 stands
6. Shaft Diameter: 75mm
7. Feeding Thickness of the material: 0.3-0.8mm
8. Working Speed: 10-12m/min
9. Backboard Thickness: 14mm
10. Feeding Width: 312mm
11. Main Frame: 300mm H-Beam
12. Material of roller: High grade 45# forged steel plated with hard chrome plating
13. Material of cutting: Cr12 mould steel with quenched treatment
14. Electric tension: 380V 3phase 50HZ or as the customer's requirements
15. Driving mode: Chain
16. Working time: Can be 12-15 hours
17. Workers: 1-2 only
Sales Terms
1.Terms of payment: T/T, 30% T/T should be paid as advanced deposit, 70% T/T before shipment.
2.Delivery time: within 60 workdays after receipt of the deposit.
3.Installation: Buyer will be born for round traveling expense, accommodation, safety, and interpreter of technicians, and pay 150 USD/day/person, then seller will dispatch technician for guide installation and give training to buyer's workers.
4. Guarantee:12 months guarantee. If some part of the machine is broken. We will supply the best part, but your side should shipped.
5. Package: naked with simple plastic films.
1: How to play order:
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C ---then OK
2: How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
If any questions, you can call me mobile phone at any times: 0086-18732769026
3: When we exported the machines:
We have been making and exporting the machines for more than 10 years.
4: If you want to get more pictures or videos of the machines,
I can send them to you by Email or Skype.
