High Quality Metal Glazed Roof Tile Roll Forming Machine
- TIANJIN XINGANG
- T/T
You May Like
-
Automatic Metal Glazed Roof Tile Roll Forming Machine
-
Glazed Roof Tile Roll Forming Construction Machine Tile Machine for Sale Supplier's Choice
-
Zinc Glazed Roofing Sheet Machine, Tile Roll Forming Machine
-
Roof Wall Glazed Metal Roof Tile Roll Forming Machine
-
Tile Forming Machine, Glazed Tile Forming Machine, Steel Glazed Tile Roll Forming Machine
-
Hydraclic Bending Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 1-3m/min | Place of Origin | Hebei, China | |
| Brand Name | AS | Model Number | According customers' requirement | |
| Power(W) | 5.5 Kw | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 7.35*1.2*1.5 | Weight | 4.5T | |
| Certification | CE/ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Working Flow:
Processes: Manual de-coiler—Roll forming machine—PLC system— Hydraulic system-Cutter
Components of machine:
Decoiler | 1set (5MT capacity) |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |
Parameters of High Quality Metal Glazed Roof Tile Roll Forming Machine
1.manual decoiler:manual expansing,passive uncoil
2.weight capacity of deociler:5T
3.machine stand:welded structure steel
4.type of forming machine:single station with chain transmission
5.material of roller:high grade 45 steel
6.surface of roller coated with chrome 0.05mm thickness
7.type of cutting:hydraulic cutting
8.line speed:3m/min

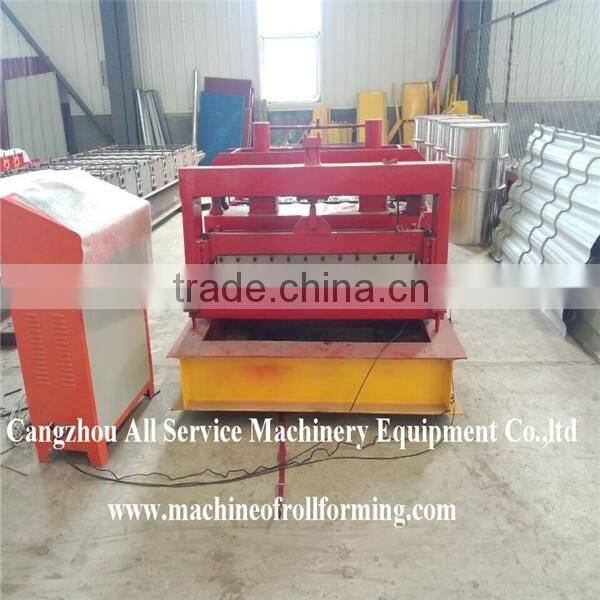

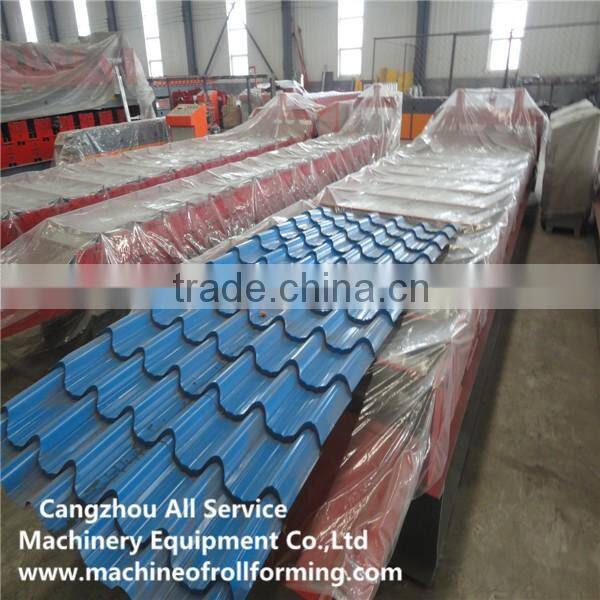

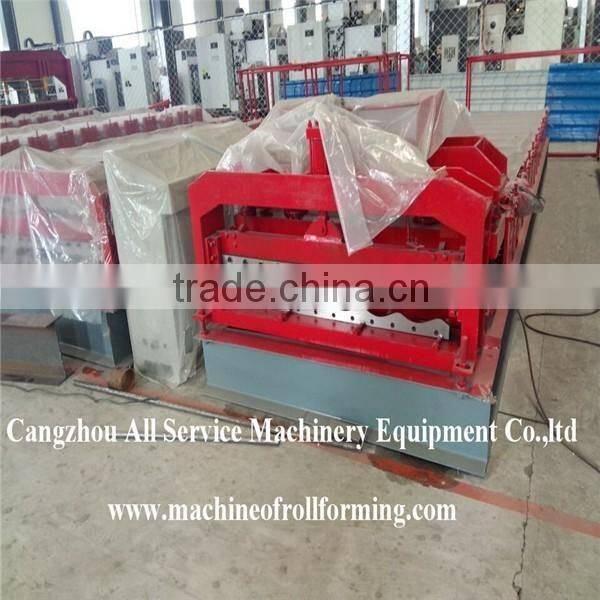

Please check our pictures :
We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame.
Customers show:
1:Nude in container with plastic film.
2:We can do the packaging according to your need.
Our machines at customers' workshop:
1 | One-year quality assurance for all the machine |
2 | Technical staff available to service machine overseas |
3 | Permanent free for technical support |
4 | Design and produce according to your sample or drawing |
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free,but you need pay the express cost yourself.If after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes,please tell me the destination port or address.We have rich experience in transport.
7. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
8. How long the machine could be made?
Normally speaking, common roof profile roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
