Ultral Fast Recovery Rectifier Diode ES07B

 Part Number: Ultral Fast Recovery Rectifier Diode ES07B

Feature:

Glass passivated device
Ideal for surface mouted applications
Low leakage current
Metallurgically bonded construction
High temperature soldering:250℃/10 seconds at terminals

Maximum Ratings and Electrical Characteristics

Maximum recurrent peak reverse voltage: 100V

Maximum RMS voltage: 70V

Maximum DC blocking voltage:100V

Maximum average forword rectified current: 1.0A

Peak forward surge current 8.3ms single half-sine-wave superimposed on rated load TL=25℃: 30A

Typical thermal resistance: 180K/W

Maximum reverse recovery time：25nS

Operating temperature range: -55 to 150℃

Storage temperature range：  -55 to 150℃

Production Information
1. Your complete source of TVS diode, schottky diode, super fast recovery rectifier and transistors back by 50 years          experiences!.
2. Raw material used by GPP wafer!
3. High power tvs diodes up to 30KW and 10KA, max breakdown voltage at 600V!
4. Both axial & high voltage rectifier available!

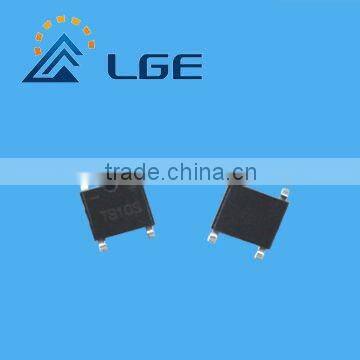

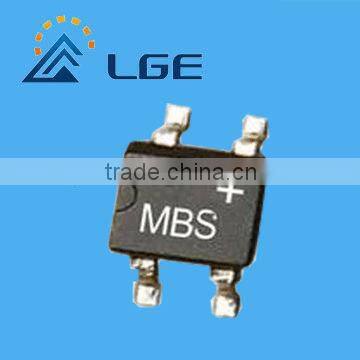

5. One stop service solution, axial series range from 1A to 15A, Surface mount series range from 1A to 8A, Bridge rectifier range from 0.5A to 60A!

LGE Roadmap

LGE to become a globally present World class Brand.
Constant evolution to new and innovative products to satisfy the market demands.
Set up Overseas Branches and Development Centers.
Continuously Increase Investment to Complete Full Automatic Production Lines in 2018

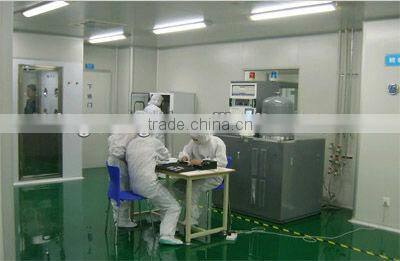

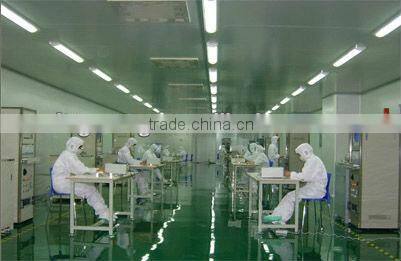

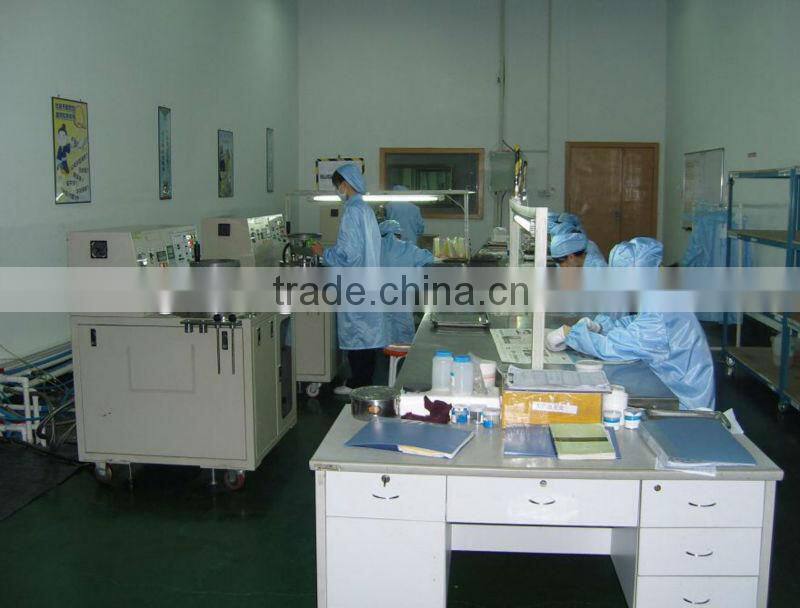

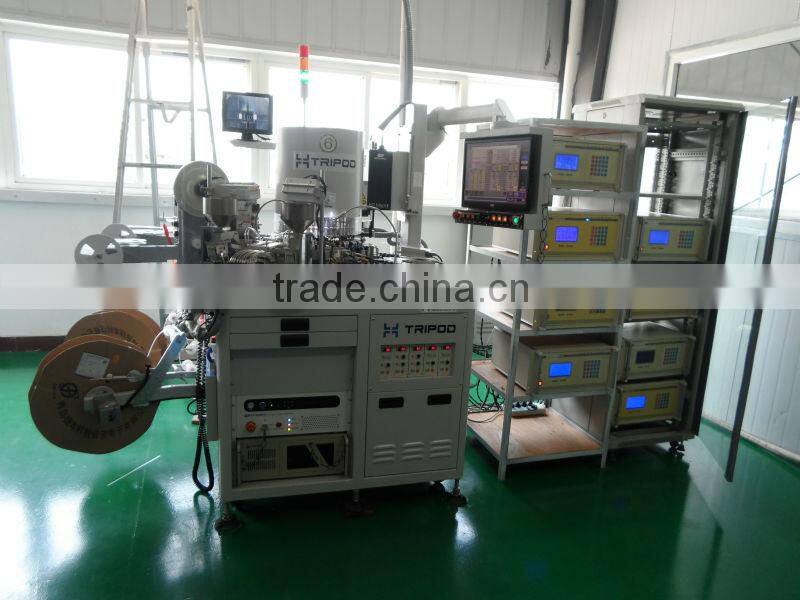

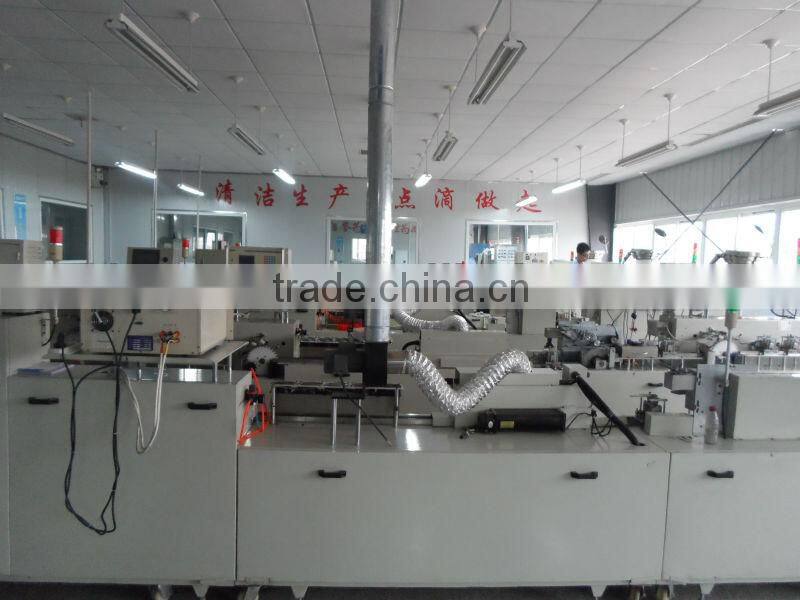

LGE Production Line

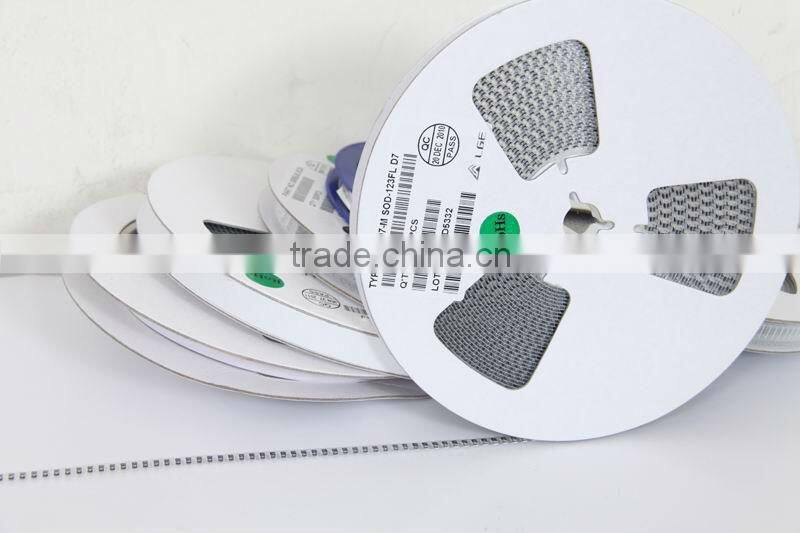

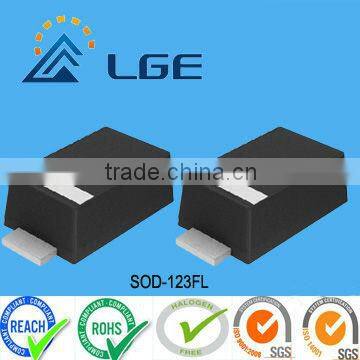

 Full-automatic SOD-123 production line
* Full-automatic DO-214AC/SMA production line
* Full-automatic DO-214AB/SMB production line
* Full-automatic DO-214AA/SMC production line
* DO-201AD / DO-27 production line
* DO-41 Production line

More information, pls feel free to contact us!
