Home > Products > Ceramic Tube for Fuse > Metalized Ceramic Tubes for Fuse Manufacturer/Supplier
Metalized Ceramic Tubes for Fuse Manufacturer/Supplier
- Shenzhen
- D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Ultronic | |
| Model Number | Client's Drawing | Type | Insulating Ceramics | |
| Material | Other, Alumina, 95% Alumina |
customer's
Product Description
Metalized Ceramic Tubes for Fuse Manufacturer/Supplier
The alumina ceramic tube have many advantages as follows.
1.High mechanical strength
2.Low loss in high frequency
3.High dielectric strength
4.Low gas leakage coefficient
5.High voltage resistance
6.High dimensions precision
Materials Performance
| Item |
Unit | Performance | |||||
Alumina ceramic |
steatite ceramic | |||||||
90% | 92% | 95% | 96% | |||||
Ceramic Body
| Appearance | Color | - | white,ivory white,brown,black | White off-white | |||
Mechanical Characters |
Bulk Density | g/cm3 | ≥3.6 | ≥3.65 | ≥3.7 | ≥3..75 | 2.7 | |
Water Absorption | % | 0 | 0 | |||||
Flexural strength | MPa | 280 | 300 | 310 | 320 | 150 | ||
(HV) Hardness | GPa | 12 | 5.8 | |||||
Thermal Characters |
Coefficient of linear thermal expansion | 20℃~800℃ ×10-6mm/℃ | 6.3~7.3 | 6.4~7.4 | 6.5~7.5 | 6.8~7.8 | 8.0 | |
Thermal Conductivity | W/(m.K) | 12 | 16 | 20 | 23 | 2 | ||
Electrical Characters |
Dielectric constant(1MHz) | — | 9~10 | 9~10 | 9~10 | 10 | 7.5 | |
Dielectric loss angle | ×10-4 | ≤6 | ≤5 | ≤4 | ≤3 | 8 | ||
Dielectric Strength | KV/mm | 15 | 20 | 24 | 28 | 18 | ||
Metalized Ceramics |
Gas leakage coefficient | Pa.m3/s | ≤10-8 | - | ||||
Volume resistivity | Ω.cm | ≥1015 | - | |||||
Combined strength | MPa | ≥120 | - | |||||
Thickness of Metal | μm | ≥20 | - | |||||
Company Profile
Ultronic Ceramic Technology Co., Ltd is located in Changsha City, the capital of Hunan Province. Since its establishment in September 2010, Ultronic has been devoted to manufacturing alumina ceramics and steatite ceramics for electric components and industrial ceramics. Now we have the forming technologies of hot pressing, dry pressing, injection molding, tape casting, and isostatic pressing. We also have the special process of surface metallization, glazing, and polishing. Our routine products include ceramic thermostat housing, ceramic rod, metalized ceramic GDT tube, faucet cartridge ceramic disc, ceramic insulating plate and so on. And we supply to leading companies in respective business, such as and so on.
We have below product categories
Ceramic Substrate
Zirconia Ceramic
Steatite Ceramic Parts
Ceramic Pin/Rod
Ceramic Tube/Ring
Ceramic Lamp Holder
Thermostat Ceramic Parts
Ceramic Faucet Cartridge Discs
Metalized Ceramic Parts

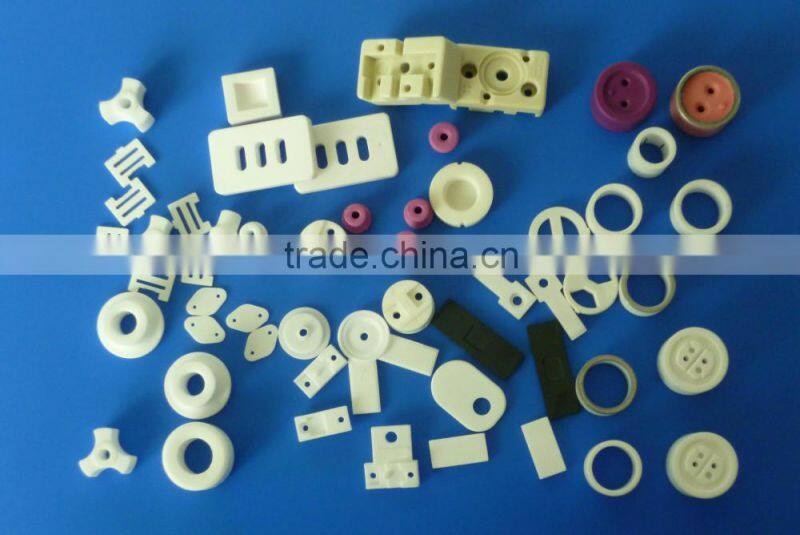

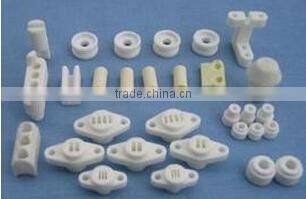

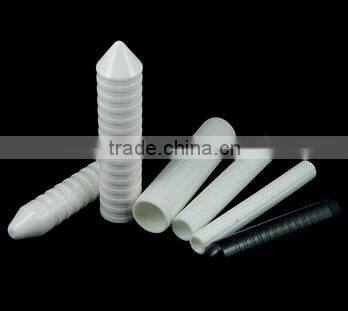

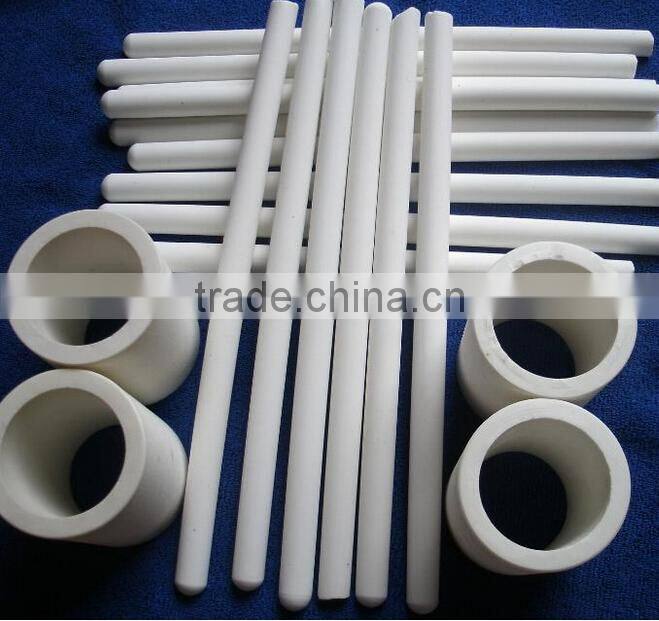

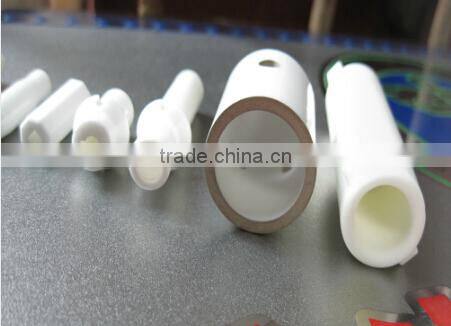

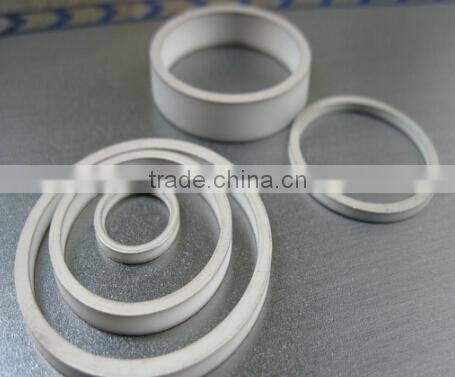

Products show
Welcome to contact us if you need.We can produce the right products according to your drawing.
Company Profile
Ultronic Ceramic Technology Co., Ltd is located in Changsha City, the capital of Hunan Province. Since its establishment in September 2010, Ultronic has been devoted to manufacturing alumina ceramics and steatite ceramics for electric components and industrial ceramics. Now we have the forming technologies of hot pressing, dry pressing, injection molding, tape casting, and isostatic pressing. We also have the special process of surface metallization, glazing, and polishing. Our routine products include ceramic thermostat housing, ceramic rod, metalized ceramic GDT tube, faucet cartridge ceramic disc, ceramic insulating plate and so on.
