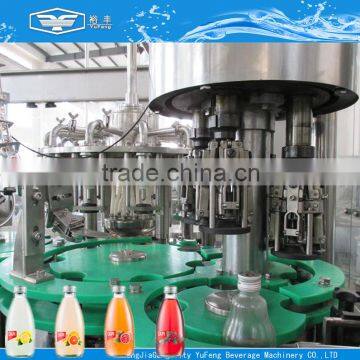

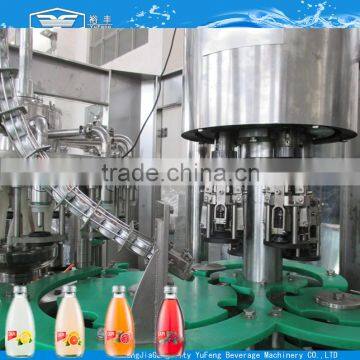

Juice Bottling Line With Aluminum Cap

General description

This Juice bottling line with aluminum cap  has washing,filling,capping three functions in one body,total process is automatic.
Bottles are transferred to bottle filling machine through poking bottle star-wheel.The bottle is hold by neck holding plate after it is in the bottle filling machine. The filling valve ascends and descends by the action of cam. It applies pressure filling method. When filling valve descends and touches bottle jack, it opens and finishes the filling course, when finished, the filling valve ascends and leaves the bottle while the bottle is transferred into capping machine through transition star-wheel that clamps bottle neck.

Main features

1) High Quality Bottle Filling Machine has compact structure, complete control system, easy operation and high degree automation.
2) To change bottle shape, its only need replace star-wheel, inlet bottle screw and arc guide plate.
3) Aseptic bottle filling machine applies high speed filling valve, the liquid has precise level and no waste. That guarantees the demand of filling technology.
4) The capping head applies constant magnetic torque device to secure capping quality and wont damage bottle cap.
5) The Juice bottling line with aluminum cap applies high effect cap arranging system that has complete self control and protective device.
6) The  Juice bottling line with aluminum cap  is equipped with complete overload protection device that can secure equipment and operator effectively.
7) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting etc.

MORE PHOTOS FOR REFFERENCE:

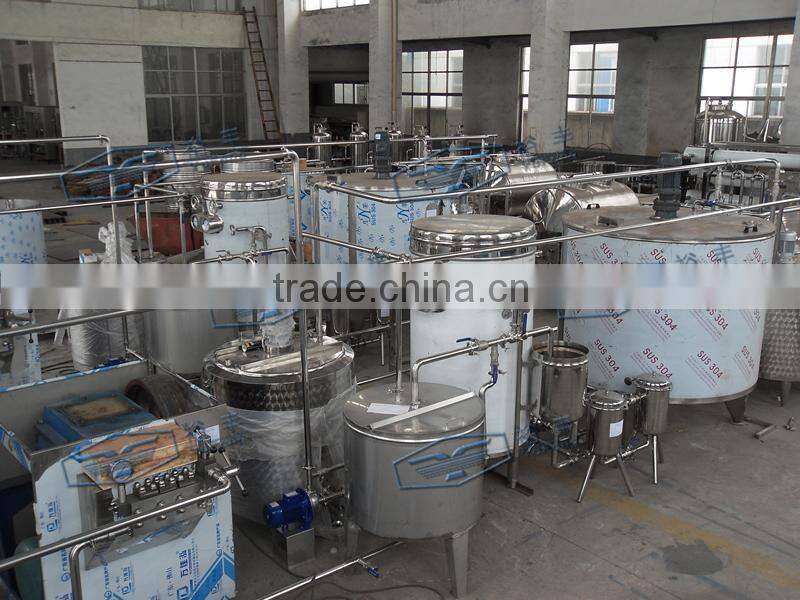

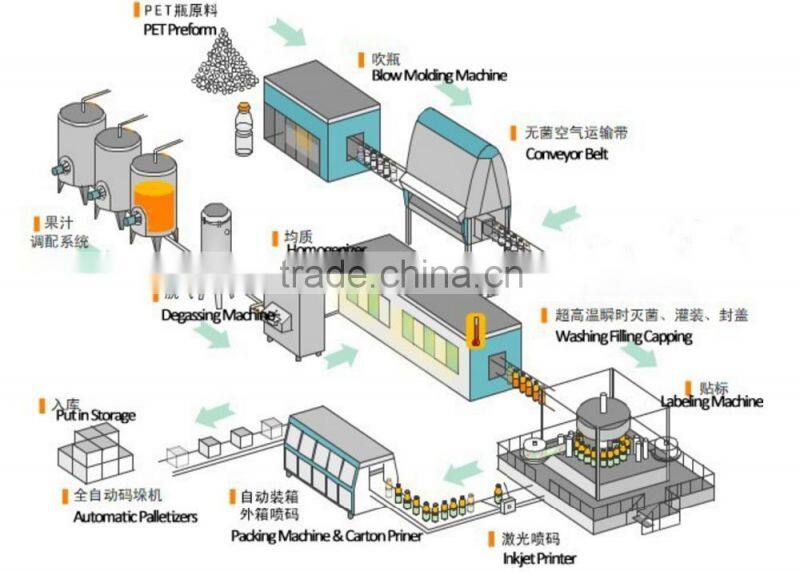

  Juice bottling line with aluminum cap juice production system

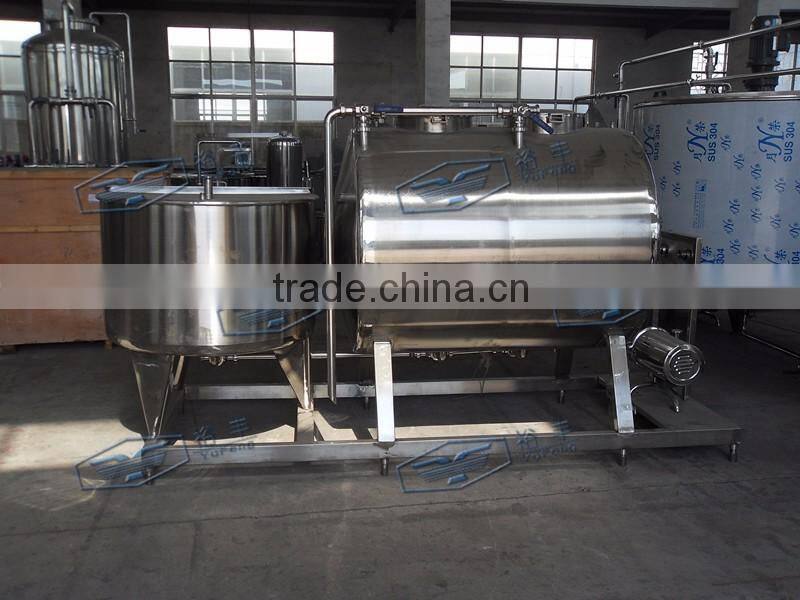

Juice bottling line with aluminum cap  CIP system

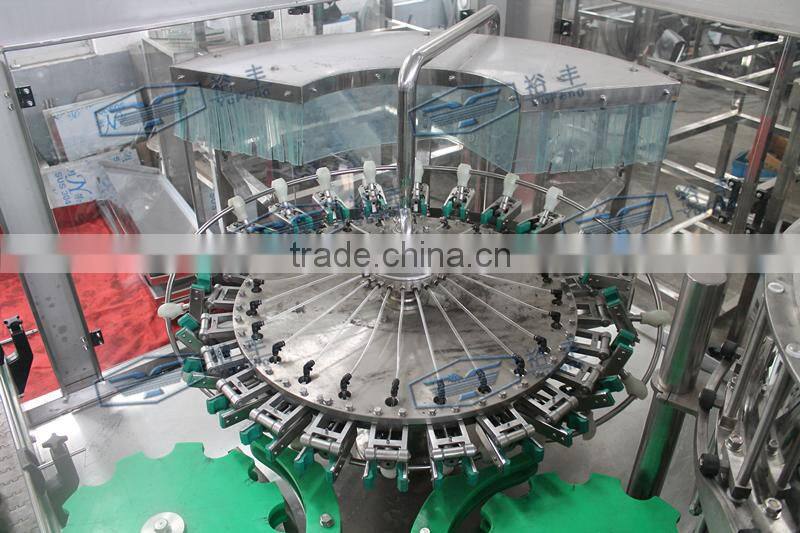

  Juice bottling line with aluminum cap  washing part

  Juice bottling line with aluminum cap  filling part

  Juice bottling line with aluminum cap  capping part

  Juice bottling line with aluminum cap  bottle warming tunnel & reverse sterilization

Juice bottling line with aluminum cap  packing part
