Automatic 3 in 1 2000-15000BPH Glass Bottled Beer Filling Machinery
- shanghai port for beer filling machinery
- T/T Credit Card
You May Like
-
Banana-lemon-milk Juice Production Line/filling Machine Cost
-
6000bph Glass Bottle Beer Filling Machine, Beer Bottling Machine, Beer Machine
-
Glass Bottled Tea Making Equipment/tea Drinks Filling Line
-
Zhangjiagang Bottle Juice Machine/juice and Tea Hot Filling Line
-
3 in 1Tea And Juice Filling Line/ Hot Filling Machine
-
10000BPH Glass Bottled Juice Drink Filling Machine and Production Line Quality Choice
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Glass | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380v | Power | 3KW | |
| Place of Origin | Jiangsu, China | Brand Name | YuFeng | |
| Model Number | RCGF32-32-10 | Dimension(L*W*H) | 3200*2200*2000 mm | |
| Weight | 2500Kg | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
When is the ''Automatic 3 in 1 2000-15000BPH glass bottled beer filling machinery ‘’the perfect choice?
If you are looking for a filler that ...
- can reliably fill juice for glass bottles
- is particularly economic to operate.
- guarantees highly precise fill quantities.
- can provide low-foam filling and is gentle on the product.
1. Fully automatic rinsing, filling and rotary capping combined machine. Whose main technique was imported from Italy, can realize to asepsis filling. Because it equipped with constant temperature controlling system.
2. It can apply to fill hot frult juice. Tea and other beveerage into thermal proof PET bottle by changing few parts.
3. The complete set of machine is more advanced in technique, smaller in space occupied, more compact in structure.
4. It is suitable for normal temperature filling or hot filling PET bottled no gas contained beverages (Mineral water, purified water, distilled water, fruit juie, tea and so on).
5. As well as washing, filling and sealing other liquid, such as vinegar, It achieves 1990"s international advanced level, It is the best choice of taking place of imported one.
Automatic 3 in 1 2000-15000BPH glass bottled beer filling machinery
---Main electric brand
| Touch screen | Weinview or Siemens |
| PLC program controller | Mitsubishi or Siemens |
| Inverter | Mitsubishi or Siemens |
| Photoelectrical controller | Omron or Autonics |
| Proximity switch | Omron |
| Other electrical components | Schneider |
| Pneumatic component | Airtac or SMC or Festo |
| Water pump | CNP or Grundfos |
| Main motor | SL or ABB or SEW |
| Bearing | Harbin or Igus |
Automatic 3 in 1 2000-15000BPH glass bottled beer filling machinery
---Working principle
When bottles are sent to the machine by conveyor continuously, they firstly are deliveried to the receiving wheel by air-slide conveyor and then to washing part. The bottle clamps hold the bottles and trun over 180°to wash, then return back to their original position after enough washing and drying. Then, the bottles are sent to the middle thumb wheel 1 and to the filling part to be filled, then moved by middle thumb wheel 2 and reach to capping part to be capped, at the same time, cap trimmer sends caps to the top of the bottles and capper screws caps. At last, bottles are sent to the conveyor chain by the out stirring wheel to next working position.
| Model | RCGF12/12/4 | RCGF18/18/6 | RCGF24/24/8 | RCGF32/32/10 | RCGF40/40/12 |
| Capacity(500/ml/bottle/h) | 3000-4000 | 5000-6000 | 8000-10000 | 12000-14000 | 16000-18000 |
| Suitable bottle shape | glass circular or square | ||||
| Bottle diameter(mm) | Φ 50- Φ 90 | ||||
| Bottle height(mm) | 150-310 | ||||
| Compressed air pressure(MPa) | 0.3-0.7 | ||||
| Washing medium | aseptic water | ||||
| Washing water's pressure(MPa) | 0.25 | ||||
| Total Power(KW) | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 |
| Overall dimensions(mm) | 2230*1630*2250 | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 |
| Weight (kg) | 2200 | 2500 | 4200 | 6000 | 7000 |

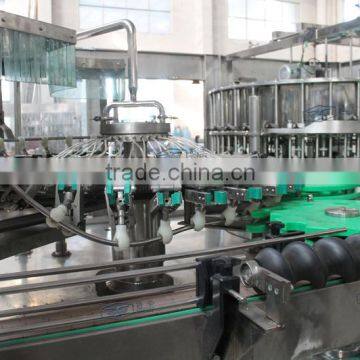

--Glass bottle rinsing part

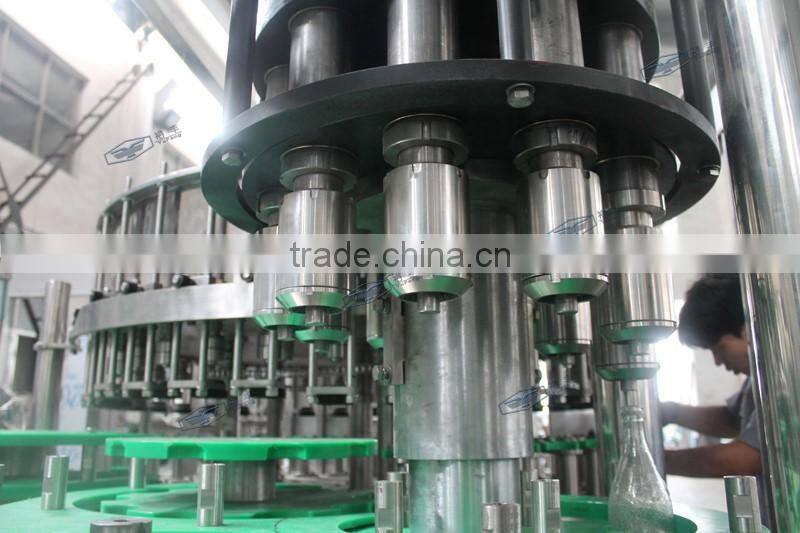

---Glass bottle filling part
Automatic 3 in 1 2000-15000BPH glass bottled beer filling machinery
Automatic 3 in 1 2000-15000BPH glass bottled beer filling machinery
We can do more:
1,PET bottle blow molding machine
2, RO Water treatment system
3, Juice & carbonated drink processing line
4,Filling machine for PET bottle / Glass bottle
5, Bottle packing line
Automatic 3 in 1 2000-15000BPH glass bottled beer filling machinery
---Our electric components supplier
ZhangJiaGang City YuFeng Beverage Machinery Co.,Ltd. is located in the economy developed golden delta zone along Yangster River.To the west of ShangHai and the east of NanJing,domestic and overseas transportation is very convenient.
We are a manufactorying enterprise specializing in producing beverage packing equipment and various water advenced technologyfrom hone and abroad.So we have win high reputation among our customers.
At present we produce:productiong lines for mineral water,pure water,fruit juice,tea drink,milk drink and carbonated drink with capacity 1000-20000bottles per hour; production lines for vinegar,soysouceand wine 1000-20000bottles per hour;3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants.
"Honsty,Sincerity and good faith"is our spirit while "High technology ,high quality and high level"is what we aim.We try our best to satisfy our customers with our good after sale service.We would like to welcome all our society to cooperate and develop together.
Automatic 3 in 1 2000-15000BPH glass bottled beer filling machinery
---After Sales Service
1. Find our products through http://yufengjx.en.china.cn/
2. One year warranty for the whole system
3. Free equipment installation and debugging
4. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
5. Every 3 years, we can help to overhaul the machine free (Labor)
6. We can provide internship service and help you train the operator and mechanic
7. Free production technology and process configuration
8. We can help you to design the production line, workshop and provide turn-key project
If any doubts,pls let me know ---Sunny Sun
