Water Curtain Spray Booth (CE Approved)
US$ 8,000 - 10,000
/ Piece
1 Piece(Min. Order)
- Guangzhou
- Credit Card PayPal
You May Like
Product Details
| Power | 8kw | External Size | 8000/4000/3050mm | |
| Internal Size | 6900/3900/2650mm | Voltage | 380V/50HZ | |
| Certification | CE | Disc Dia. | Electric Spray Paint Booth | |
| No Load Speed | 0.25m/s | Place of Origin | Guangdong, China | |
| Brand Name | Qiangxin / Xin Guang Li | Model Number | QX3000 |
Product Description
Water Curtain Spray Booth (CE approved)
We are professional leading factory in Guangzhou,China.
Specializing in manufacture kinds of paint spray room system.
And also offering full garage equipments,car care equipment.
Parameter
| Outer Size | 8000×4000×3050(mm)(L×w×H) | Inner Size | 6900×3900×2650(mm)(L×w×H) |
| Entrance Door | One set door with 1.8mm aluminum alloy wrap-around .Size:1000*2000mm(W/H) | ||
| Wall | 50mm EPS (epispastics polystyrene )with 0.426mm colored steel | ||
| Lighting | Equipped with 8 groups (24lamps) lamp boxes, each group has three 36w FSL lamp | ||
| Intake Fan | Air Supply: 2 sets environmental special fans, each fan parameter:YOW5.6m.1.5kw.12500m3/nIntake air from the roof , exhaust from the down side. It can settle based on the current situation | ||
| Exhaust Fan | 1 set axial flow fan:YOW4 m. 3kw.18000m3/h | ||
| Filtration System | Inlet fan has item 300 pre-filter equipment, Room equipped with CC-G650 high-efficiency filtering device,which can effectively filter 5pm dust particles.Air inlet has item 300 primary cotton filter . Roof is made of light steel. | ||
| Roof | Roof is made of galvanized sheet. Roof construction is consist of six square tubes (each tube size:40*80) | ||
| Control System | Including Painting , Baking, Temperature Controller, Fault LED, Power Switch, Emergency Stop Switch, and Hour Meter | ||
| Water Curtain Table | 1 set stainless double deck water curtain table ,size:2800×1400(mm) 1 set special pump | ||
| Voltage | 380V 50HZ | ||
| Wind Speed | more than 0.25m/s | ||
| Light Intensity | more than 1000lx | ||
| Total Power | 8kw | ||
| Floor | Galvanized grille. The column is made of U-steel which is convex shape.Checkered plate use high anti-rust treatment . | ||
| Air Outlet Pipe | The wind pipe is made of Galvanized plate(thickness is 0.8mm) with stiffener. Two Straight Pipes(Each pipe size:700*700*1000), One Bend Pipe | ||
For more details,welcome to contact Yuvi!
Structure
Certifications

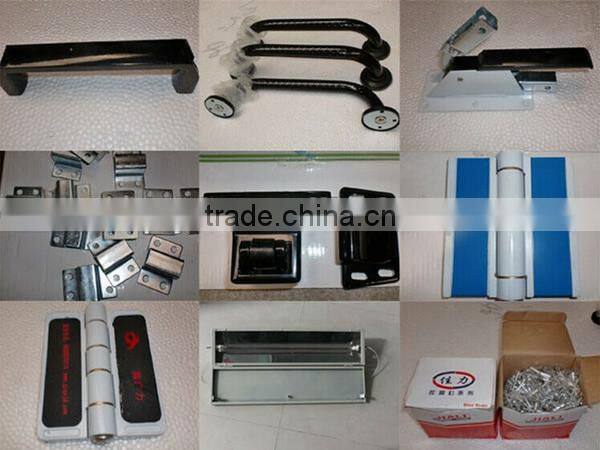

Accessories

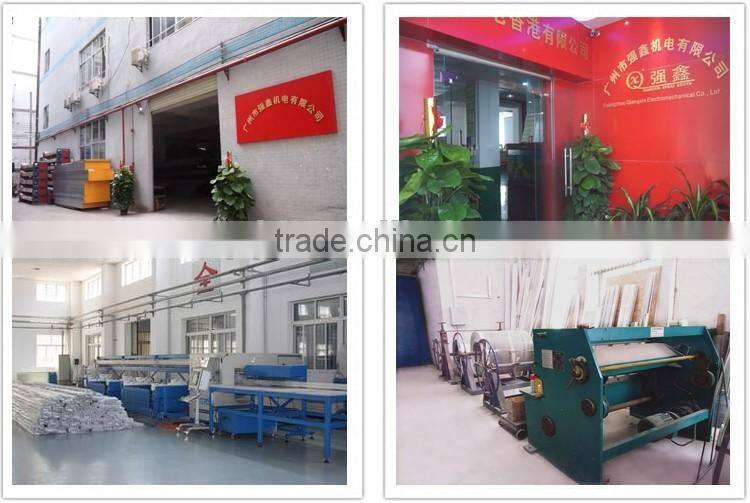

Professional factory
Export packing&loading
Installation team
Cooperated customers
Welcome to Contact Yuvi at once!
