Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 3P 50Hz | Power | 3KW | |
| Place of Origin | Jiangsu, China | Brand Name | YuFeng | |
| Model Number | DCGF40-40-12 | Dimension(L*W*H) | 2800*2200*2000 | |
| Weight | 3000kg | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DCGF40-40-12 PLC control PET bottled carbonated beverage filling machine
Carbonated beverage filling machine---Technical parameter
Model | DGCF18-18-6 | DGCF24-24-8 | DGCF32-32-10 | DCGF40-40-12 |
Production Capacity(B/H) | 4000-6000 | 6000-8000 | 8000-12000 | 12000-14000 |
Filling Precision | <=5mm(Liquid Level) | |||
Filling Pressure(MPa) | <0.4 | |||
Polyester Bottle Satandard(mm) | Bottle Diameter: φ50-φ100 Height:150-320 | |||
Suitable Cap Shape | Plastic Screw Cap | |||
Water Pressure of Washing Bottle(MPa) | 0.18-0.25 | |||
Water Consumption for Washing Bottle(kg/h) | 2000 | 2500 | 3000 | 3500 |
Spraying Position | 5 | 6 | 12 | 18 |
Dripping Bottle Position | 3.0 | 3.5 | 7 | 10 |
Gas Source Pressure(MPa) | 0.4 | |||
Gas Consumption(m³/min) | 0.4 | 0.4 | 0.5 | 0.6 |
Total Power(kw) | 5.03 | 6.57 | 8.07 | 9.5 |
Total Weight(kg) | 3000 | 4000 | 5000 | 6000 |
Dimension(L*W*H)(mm) | 2450*1800*2200 | 2750*2180*2200 | 3600*2200*2600 | 3800*2400*2600 |
carbonated beverage filling machine --- Link with hot melt gule labeling machine
Carbonated beverage filling machine---Filling part

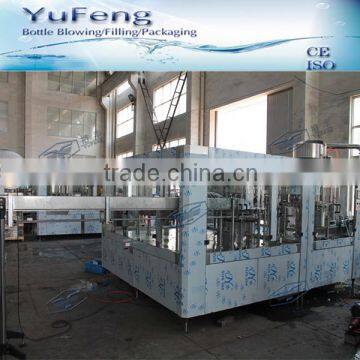

Carbonated beverage filling machine---rinsing,filling and capping 3 in 1 unit
