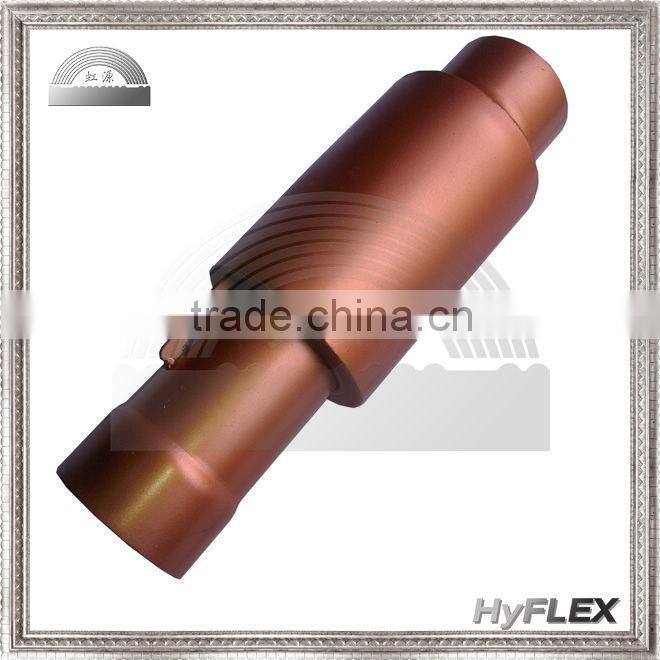

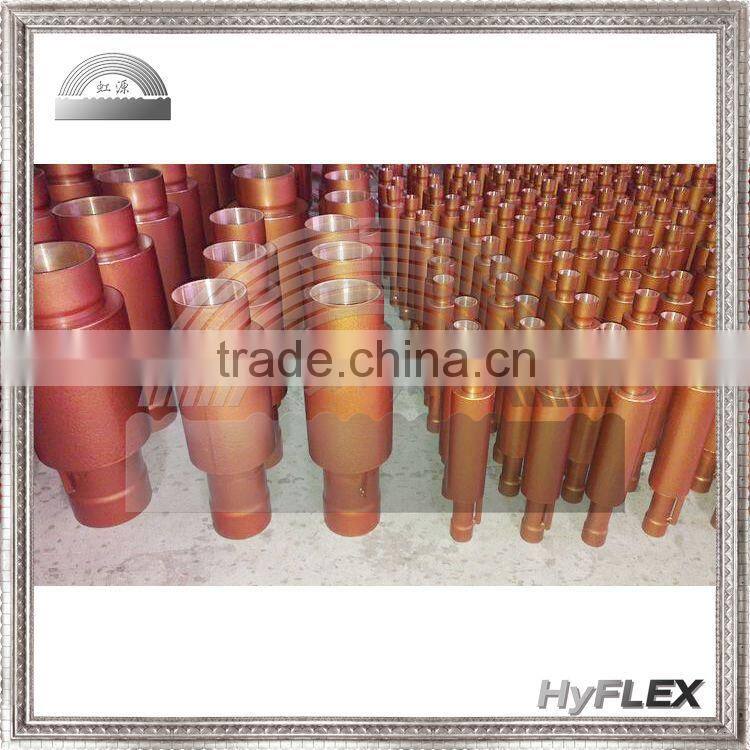

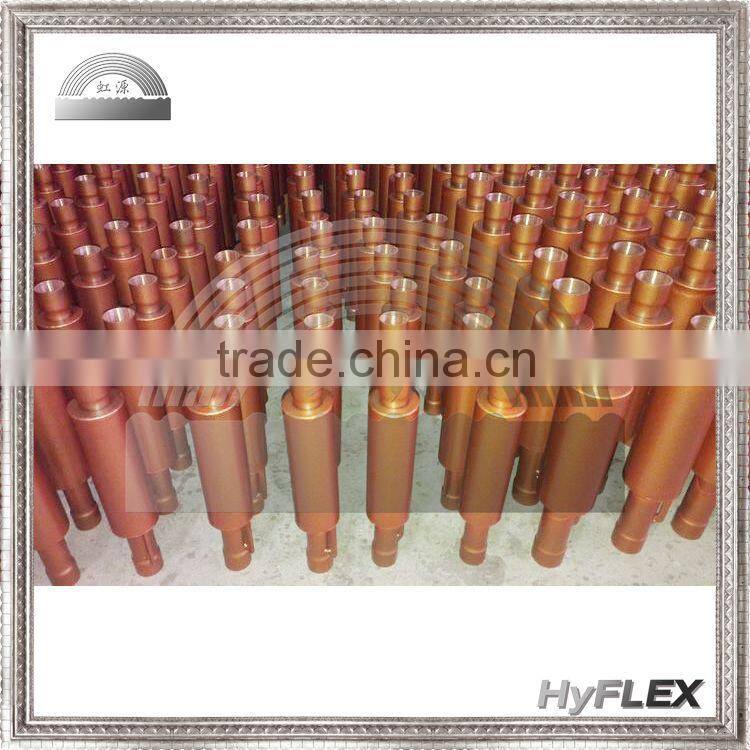

Expansion Compensator for Bronze / Copper Tube
Negotiable
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
EXPANSION COMPENSATORS COPPER TUBE ENDS
-
EXPANSION COMPENSATOR / Expansion Joint / Copper Sweat Ends
-
3/4" Sweat Expansion Compensator / Female X Female Sweat Compression
-
LOW PRESSURE EXPANSION COMPENSATOR
-
LOW EXPANSION PRESSURE 2 INCH COMPENSATOR
-
3/4" FML X FML 2" Compression Expansion Joint Compensator
Product Details
| Material | Copper | Type | Other, copper sweat ends | |
| Place of Origin | Jiangsu, China | Connection | Welding |
Product Description
This expansion joint is designed for axial movement only. Pipe must be properly guided and anchored per the recommendations of the Expansion Joint Manufacturers Association.
CAUTION: Silver Brazing used in construction. Do not exceed 1000° F during installation.
Design Data:
Temp. 500° F Press. 150 PSI
Test Press. 225 PSI
2" Compression
1/2" Expansion
Material:
Bellows-Multi-Ply S.S. T304
Other Parts – S.S. & Copper
| For copper systems, 2" compression | ||||
| PART NO. | Pipe Size | Pressure / Temp | Compression | Extension |
| HYSSC20075 | 3/4" | 150 PSIG at 500 deg F. | 2" | 1/2" |
| HYSSC20100 | 1" | 150 PSIG at 500 deg F. | 2" | 1/2" |
| HYSSC20125 | 1-1/4" | 150 PSIG at 500 deg F. | 2" | 1/2" |
| HYSSC20150 | 1-1/2" | 150 PSIG at 500 deg F. | 2" | 1/2" |
| HYSSC20200 | 2" | 150 PSIG at 500 deg F. | 2" | 1/2" |
| HYSSC20250 | 2-1/2" | 150 PSIG at 500 deg F. | 2" | 1/2" |
| HYSSC20300 | 3" | 150 PSIG at 500 deg F. | 2" | 1/2" |
| HYSSC20400 | 4" | 150 PSIG at 500 deg F. | 2" | 1/2" |
| For copper systems, 3" compression | ||||
| PART NO. | Pipe Size | Pressure / Temp | Compression | Extension |
| HYSSC30075 | 3/4" | 150 PSIG at 500 deg F. | 3" | 1/2" |
| HYSSC30100 | 1" | 150 PSIG at 500 deg F. | 3" | 1/2" |
| HYSSC30125 | 1-1/4" | 150 PSIG at 500 deg F. | 3" | 1/2" |
| HYSSC30150 | 1-1/2" | 150 PSIG at 500 deg F. | 3" | 1/2" |
| HYSSC30200 | 2" | 150 PSIG at 500 deg F. | 3" | 1/2" |
| HYSSC30250 | 2-1/2" | 150 PSIG at 500 deg F. | 3" | 1/2" |
| HYSSC30300 | 3" | 150 PSIG at 500 deg F. | 3" | 1/2" |
| HYSSC30400 | 4" | 150 PSIG at 500 deg F. | 3" | 1/2" |
