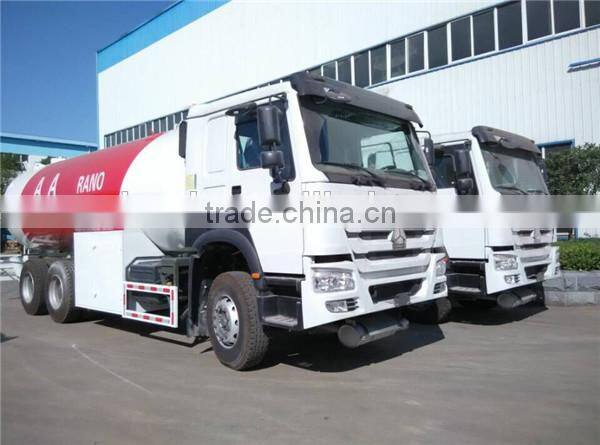

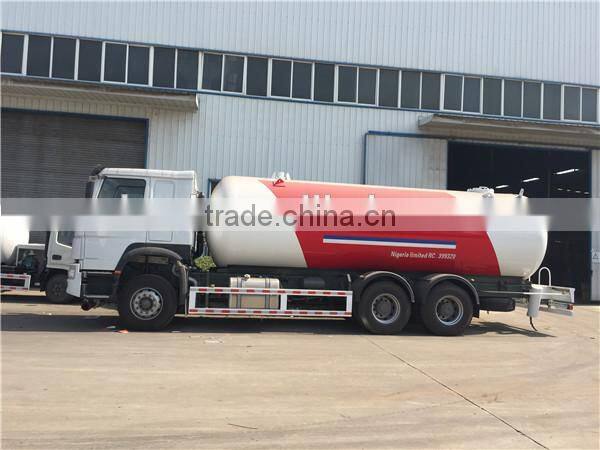

SINO Howo LPG Gas Truck Mobile Gas Refueling Trucks

Item

unit

Parameter

Vehicle model

15000L LPG dispenser tank Truck(LHD)

Horse Power

ps

170

Overall dimension

Mm

7600*2462*3250

Fact cubage

L

15000

GVW

Kg

12100

Rated loading capacity

6300

Mass in working order

5800

Wheel base

4700

F/R track base

1900/1800

Approach/departure angle

33/17

Exhaust/Hp

ml/ps

5900/170

Max speed

Km/h

90

Tire specification

11.00-20

Engine type

wd615.65

Traction system

6*4

transmission

8-speed

Number of axles

2

Electric system

24v

Operation control system

Electrically hydraulic control

Allowable passengers in cab

2

Equipment

1. Meterial: carbon steel.

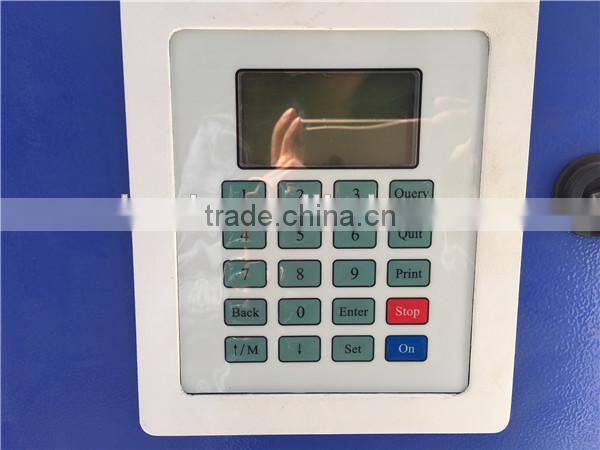

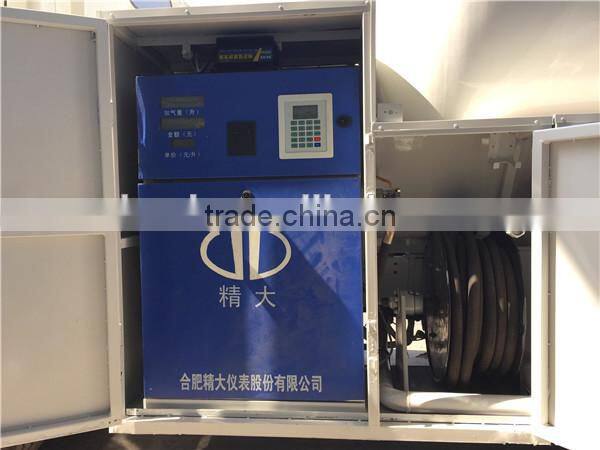

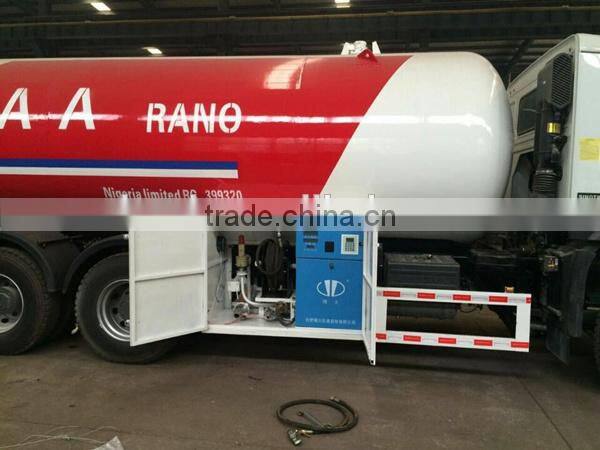

2.Equipped with counter DN50, lpg dispenser,PTO and pump etc.

Production cycle

Warranty

30 days

12months from the supply day

Tank

Design

1.77Mpa

Design temperature

50°

capacity

15m³

Filling medium

LPG

Tank material

Q345R

Corrosion allowance

1.00 mm

Heat treatment method

PWHT

Tank mass

5800 kg

Hydraulic test pressure

2.66Mpa

Vessel’s sort

The third kind

Service Years

ten years

Safety valve

Type

A412F-2.5

Model

Inner full liff

Nominal Pressure

PN2.5MPa

Nominal Diameter

DN80mm

Opening Pressure

1.86-1.95MPa

Closing Pressure

>1.49MPa

Complete Opening Pressure

<2.12MPa

Urgency Switch Valve

Type

QGJ43F-2.5

Nominal Pressure

PN2.5Mpa

Nominal

Diameter

Gas Phase

DN25mm

Liquid Phase

DN50mm

Operation Way

Manual

Closing Time

10sec

Melting switch temperature

70±5°

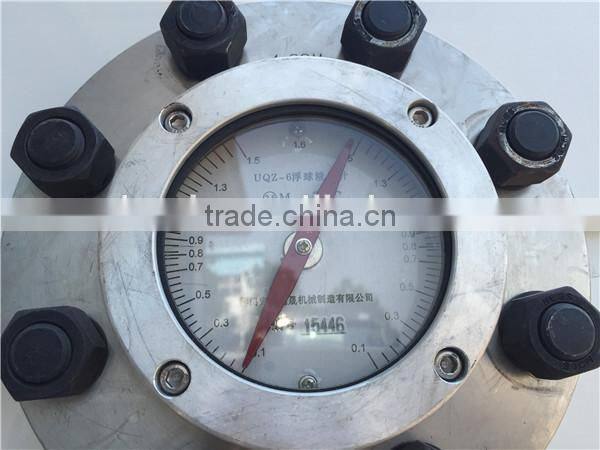

Indicator for liquid level

Type

UQZ-2.5-1500

Model

Ball float style

       Nominal Pressure

PN2.5MPa

Surveying range

0-1500

Precision

2.5 Grade

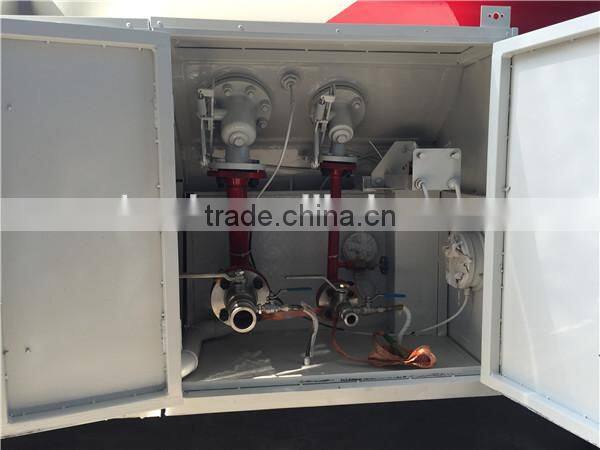

Load and unload system

Type

Q41F-2.5P/CQA41F-2.5p

Nominal Pressure

PN2.5MPa

Tie-in model

Quick tie-in

Gas phase pipe

DN25mm

Liquid phase pipe

DN59mm

Production cycle

Warranty

30 days

12months from the supply day
