Home > Products > New Products > JR131 OEM - Solid Carbide Long Flute End Mill

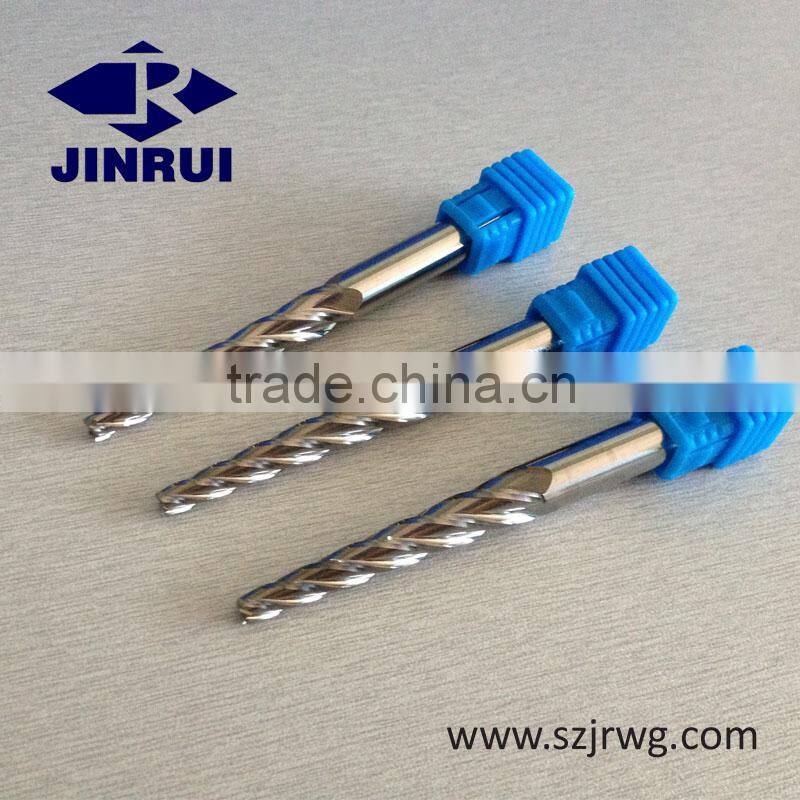

JR131 OEM - Solid Carbide Long Flute End Mill
US$ 3.8 - 55
/ Piece
20 Pieces(Min. Order)
- shenzhen
- T/T Credit Card PayPal
You May Like
-
JR139 0.3mm-3mm Radius Solid Carbide Corner Rounding End Mills
-
Wholesale And Sales Tungsten Straight Flute End Mill, Carbide End Mill Router,Carbide End Mills For Cutting Acrylic (JR111)
-
China Supply Good Quality Kennametal Cutting Tools (JR134)
-
1 Flute End Mill,acrylic Plastic Cutting Tools.helix Cutter, Solid Carbide Spiral Cutter(JR113)
-
2 Flute 3 Flute 4 Flute 3mm-16mm Cemented Carbide End Mill
-
JR133 Ultra Micro Grain Carbide End Mills
Product Details
| Place of Origin | Guangdong, China | Brand Name | JINRUI | |
| Model Number | JR131 | Material | Other, Tungsten carbide | |
| Diameter | 3mm-16mm | Type | End Mill | |
| Coating | Other, Uncoating | Overall Length | 38mm-89mm |
Product Description
Specifications
Carbide end milling cutter:1.HRC<45 degree
2.Sipral flutes and flat bottom;
3.OEM is ok,
4.Import materials.
Product Description
1. Standard Size / specification
| Item no. | ||||||||
| Description | 2-flutes | 3-flutes | 4-flutes | Flute diameter mm | Shank diameter mm | Flute length mm | Overall length mm | |
| solid carbide long flute end mill | JR131Z2- 030 | JR131Z3-030 | JR131Z4-030 | 3 | 3 | 8 | 38 | |
| JR131Z2- 040 | JR131Z3-040 | JR131Z4-040 | 4 | 4 | 11 | 43 | ||
| JR131Z2- 050 | JR131Z3-050 | JR131Z4-050 | 5 | 5 | 13 | 47 | ||
| JR131Z2- 060 | JR131Z3-060 | JR131Z4-060 | 6 | 6 | 13 | 57 | ||
| JR131Z2- 080 | JR131Z3-080 | JR131Z4-080 | 8 | 8 | 19 | 63 | ||
| JR131Z2- 100 | JR131Z3-100 | JR131Z4-100 | 10 | 10 | 22 | 72 | ||
| JR131Z2-120 | JR131Z3-120 | JR131Z4-120 | 12 | 12 | 22 | 76 | ||
| Material: tungsten carbide | JR131Z2- 140 | JR131Z3-140 | JR131Z4-140 | 14 | 14 | 26 | 83 | |
| JR131Z2- 160 | JR131Z3- 160 | JR131Z4- 160 | 16 | 16 | 32 | 89 | ||
JR131 OEM - solid carbide long flute end mill
solid long flute end mill | carbide long flute end mill | long flute end mill
2. Pictures
Packaging & Shipping
1. Package of ours (Four steps only and three packaging schemes )
1) We offer as many shipping options as possible which including TNT, UPS, DHL, Fedex and EMS etc.
2) If you want shipped by sea, pls inform us in advance.
3) Currently, we can do FOB HK/SHENZHEN and Ex-W SHENZHEN.
4) For any other delivery terms, please feel free to contact salesman leven.
Our Services
1. We can manufacture tools according to your needs(sample or drawing welcomed)
2. We can also manufacture spherical milling cutting tool.forming milling cutter,tungsten end mill,carbide end mill
3. Raw material from Kennametal (America) or Sumitomo (Japan) or guhring (Germany)
4. Application:Applied in aerospace, cars, horologe, stainless,glass,cellphone, electron and medical apparatus and instruments.
Contact Us
- Shenzhen Jinrui Precision Carbide Technology Co., Ltd.
- Contact nameJINRUI . Chat Now
- Phone86-755-29829868
- AddressRoom102 , Pengwang Industrial Zone, Liuyue Jinquan Road 2, No 3, Henggang ,Longgang District, Shenzhen, Guangdong
