Product Details
| Place of Origin | Jiangsu, China | Brand Name | Mochuan | |
| Model Number | MU2H-4TC |
Product Description

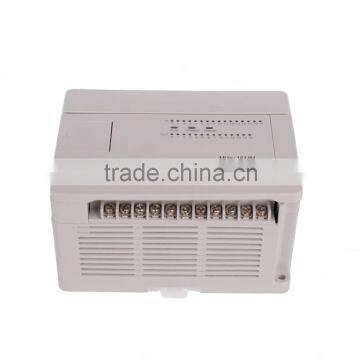

logical control PLC special function module from China
MU2H series is a small scale of PLC special function module to combine with computer technology, communication technology, automatic control technology and the result of the latest development of electronic technolog, widely used in printing ,electronic processing equipment, textile and chemical fiber, machine cable, packaging, construction machinery, lift, air conditioning and other industries to be great satisfaction industries customer demand for high-performance small PLC special function module .
| Technical Data 1 of PLC special function module | ||||
| MU2V | MU2H | MU1H | ||
| general performance | max logical I/O point | 512 | 512 | 256 |
| max number of special modules | 8 | 8 | 0 | |
| high-speed pulse output | 8X200Khz support 4 road differential output | 2X100kHz( transistor output type) | ||
| single-phase counting channel | 8X200Khz support 4 road differential input | 2X50kHz;4X10Khz | 2X50kHz;4X10Khz | |
| double-phase counting channel | 4X200kHz | 1X25kHz ;2X5kHz | 1X20kHz ;2X10kHz | |
| counting frequency comblined | 800kHz | 100kHz | 80kHz | |
| basic instruction execution time | 0.050μs | 0.084μs | 0.084μs | |
| time to a program's instructions | 0.6ms/1K step (1) | 1ms/1K step (1) | 1ms/1K step(1) | |
| real-time clock | support at least 3years when power supply drop | |||
| constant scanning way | support | |||
| digital filter function | 0.8 , 1.6 , 3.2 , 6.4 ,12.8 ,25.6 , 51.2ms to adjust | |||
| directive types | basic instruction | 31 pcs | 31 pcs | 31 pcs |
| step instruction | 2 pcs | 2 pcs | 2 pcs | |
| applied instruction | 264 pcs | 234 pcs | 174 pcs | |
| storage | user program | 32 k step | 24 K step | 12 k step |
| element holder | user set | user set | 2 K character | |
| components to keep time | keep battery back-up for 3 years | |||
| Technical Data 2 of PLC special function module | ||||
| MU2V | MU2H | MU1H | ||
| element resources | timer | 100ms 100ms precision:T0~T209 total 210 points (0.1~3276.7 secs) | ||
| 10ms 10ms precision:T210~T251 total 42 points (0.01~327.67 secs) | ||||
| 1ms 1ms precision:T252~T255 total 4points (0.001~32.76 secs) | ||||
| counter | 16 bit 16 bit more:C0~C199 total 200 points | |||
| 32 bit 32 bit minus: C200~C234 total 35 points | ||||
| high-speed counter | single-phase input single counting (32 bit) C235~C245 | single-phase input single counting (32 bit) C235~C245 | single-phase input single counting(32 bit) C235~C245 | |
| single phase input double counting (32 bit) C246~C250 | single phase input double counting (32 bit) C246~C250 | single phase input double counting (32 bit) C246~C250 | ||
| double phase input double counting(32 bit) C251~C255 | double phase input double counting(32 bit) C251~C255 | double phase input double counting(32 bit) C251~C255 | ||
| data register | D0~D32767 | D0~D7999 | D0~D3999 | |
| local data register | V0~V63 | V0~V63 | V0~V63 | |
| indexed addressing registers | Z0~Z63 | Z0~Z15 | Z0~Z15 | |
| a special data register | SD0~SD511 | SD0~SD511 | SD0~SD511 | |
| auxiliary relay | M0~M8191 | M0~M4095 | MO~M2047 | |
| local auxiliary relay | LM0~LM63 | LM0~LM63 | LM0~LM63 | |
| special auxiliary relay | SM0~SM511 | SM0~SM511 | SM0~SM511 | |
| state relay | S0~S1023 | S0~S1023 | S0~S1023 | |
| interrupt resources | internal timer interrupt | 3 pcs | 3 pcs | 3 pcs |
| external interrupt | 16 pcs | 16 pcs | 16 pcs | |
| high speed counter interrupt | 8 pcs | 6 pcs | 6 pcs | |
| serial port break | 12 pcs | 12 pcs | 8 pcs | |
| PTO output complete interrupt | 8 pcs | 2 pcs | 2 pcs | |
| power loss | 1 pcs | 1 pcs | 1 pcs | |
| communication resources | COM port | PORT0:RS232; PORT1:RS485 extensible RS232/RS485/CAN and network card | PORT0:RS232;PORT1:RS485;PORT2;CAN | |
| security policy | basic strategy | cryptography engineering ,application Passwords;Upload password, download password ,MTCN | ||
| advanced policy | Ban on formatting,Forbidden to upload;Password retry count limit (2) | |||
| (1)1K step standard benchmark program , the basic instruction is 60% ,application instructions is 40%. | ||||
| (2)password authentication retry within 30 secs more than 5 times lock password authentication function for 10 mins. | ||||
| All items of MU2H series PLC special function module | ||||
| Model | Input | Output | Output type | Size (L * W *H) |
| MU2H Main Module | ||||
| MU2H-1616MR | 16 | 16 | Relay output | 158*90*83 |
| MU2H-1616MT | 16 | 16 | Transistor output | 158*90*83 |
| MU2H-1616MT-CAN | 16 | 16 | Transistor output | 158*90*83 |
| MU2H-3232MR | 32 | 32 | Relay output | 226*90*83 |
| MU2H-3232MT | 32 | 32 | Transistor output | 226*90*83 |
| MU2H-3232MR-CAN | 32 | 32 | Relay output | 226*90*83 |
| MU2H-3232MT-CAN | 32 | 32 | Transistor output | 226*90*83 |
| I/O extension module- PLC special function module | ||||
| MU2H-0800ENN | 8 | 58*90*83 | ||
| MU2H-0808ERN | 8 | 8 | Relay output | 58*90*83 |
| MU2H-0808ENT | 8 | 8 | Transistor output | 58*90*83 |
| MU2H-1600ENN | 16 | 58*90*83 | ||
| MU2H-0016ETN | 16 | Transistor output | 58*90*83 | |
| MU2H-0016ERN | 16 | Relay output | 58*90*83 | |
| MU2H-1616ER | 16 | 16 | Relay output | 158*90*83 |
| MU2H-1616ET | 16 | 16 | Transistor output | 158*90*83 |
| MU2H-1616ERN | 16 | 16 | Relay output | 158*90*83 |
| MU2H-1616ETN | 16 | 16 | Transistor output | 158*90*83 |
| Special function modules- PLC special function module | ||||
| MU2H-2AD | 2 | Voltage , Current | 58*90*83 | |
| MU2H-4AD | 4 | Voltage , Current | 58*90*83 | |
| MU2H-2DA | 2 | Voltage , Current | 58*90*83 | |
| MU2H-4DA | 4 | Voltage , Current | 58*90*83 | |
| MU2H-2PT | 2 | thermal resistance | 58*90*83 | |
| MU2H-4PT | 4 | thermal resistance | 58*90*83 | |
| MU2H-2TC | 2 | thermocouple | 58*90*83 | |
| MU2H-4TC | 4 | thermocouple | 58*90*83 | |
| MU2H-8TC | 8 | thermocouple | 58*90*83 | |
| MU2H-2PG | 2 | pulse output | 58*90*83 | |
| MU2H-2HC | 2 | pulse output | 58*90*83 | |
| MU2H-4ADH | 4 | High precision voltage and current | 58*90*83 | |
| MU2H-4WT | 4 | Load sensor | 58*90*83 | |
| PLC Expansion cards- PLC special function module | ||||
| MU2H-CAN-BD | Support CAN2.0 A/B CAN2.0 hardware (isolated) support free oral agreement, MXLINK agreements. | |||
| MU2H-RS485-BD | Support hardware interface RS485. | |||
| MU2H-CAN-RS232-BD | Hardware support CAN2.0 / CAN2.0 B, RS232 interface. | |||
| MU2H-RS232-BD | Support RS232 interface hardware | |||
| MU2H-1PG-BD | 1 axial pulse output card (pulse + direction) | |||
| MU2H-ETH-BD | 10/100 m adaptation: support for TCP/IP protocol: programming port protocol and MODBUS TCP protocol (from a stand) | |||
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery; trade assurance from Alibaba with 10000dollars
2. MOQ: 1pcs
3. Warranty : change good for free for 3 months, free maintance for 12 months, and technical support for life
Why Choose Us?
1.More than 20 years' experience in bearing manufacturing PLC special function module:the complete industry chain: continuous material
suppliers,strong supply capacity, perfect system of freight forwarding.
2.Customization production:size, model, and package are per clients' demand.
3.Realizable quality: professional design team, strict quality control system and strong transportation cooperation.
4.First-class pre and after service: we ensure the well processing of the practice of our PLC special function module for customers.
Q1. Are your PLC special function module 's quality mature and stable ? And Wich are the industry has run successfully ?
Yes , of course . We have CE ,CCC ,and ISO90001 certification .
Mature applicable in printing ,pharmaceutical ,auto manufacturing ,electronic power , medical devices etc
Q2. How many the maximum points can up of your PLC special function module ? What is the maximum power of your frequency inverter ?
PLC special function module the main module at least 14 points ,maximum 60points ,can extend to 512 points .
The power of frequency inverter can up to 400KW .
Q3. How many voltage are of PLC special function module ? Whether the voltage can be customized according to customers ?
PLC special function module the input voltage AC110V ~AC240V ,DC24V .Or according to customer's custom.
Q4. What is guarantee of your PLC special function module?
All series PLC special function module of the company to provide one year warranty and lifetime maintenance
