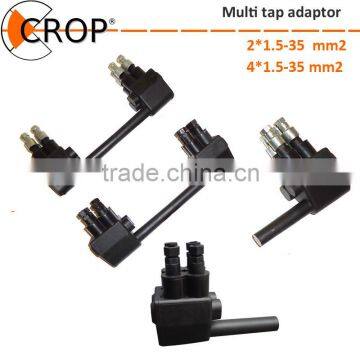

ABC accessory Low Voltage Adaptor 4x1.5-35mm2 --Muliti tap piercing connector

ABC accessory Low Voltage Adaptor 4x1.5-35mm2 --Muliti tap piercing connector

PRODUCT DESCRIPTION:
Low Voltage Adaptor  is used to turn multiple conductors of low voltage.Whole adaptor is inserted into the IPC with piercing teeths who penetrate through the insulation.This joint is 100% waterproof.
The adapter can be installed with any IPC who allows you to transfer the required voltage, and has the ability to carry the required number of conductors.ex PCT14 150-150.
On his body is 8 screw and 4 mounting holes,into which the wires 1.5-35mm2 where plugged.
It's allowed to use more smaller diameter conductors,provided that theri overall average does not exeed the 35mm2.In this case,we recommend to use pressing ferule.
The wires are inserted into the mounting hole,which is equipped with flexible rubber against moisture.
Then each wire is independently fixed by 2 screws with shear head.

Adaptor can be equipped with booth type of shear heads-plastic and zinc.

PRODUCT RANGE:

Wire:RE/RM 1.5-35MM2 CU/Al

USED MATERIALS:

Hi-conductivity aluminium,PVC UV resistant,rubber.

VARIANTS:
Product is manufactured in modifications :
4x1.5-35mm2 Tear head from plastic only or plastic+zinc alloy.

2x1.5-35mm2 Tear head from plastic only or plastic+zinc alloy.

STORANGE AND TRANSPORT:
Product do not have any specific requirements on storage. It is fire-resistant and it is not dangerous.
