Product Details
| Place of Origin | Zhejiang, China | Brand Name | CROP | |
| Model Number | NH NT series | Usage | Low Voltage | |
| Breaking Capacity | Other, Fuse Links | Safety Standards | IEC |
Product Description
Low Voltage Fuse Links /HRC fuse link/NH series/Cylindrical fuse link/screw fuse link D type-DIZD
IEC60269-1,IEC60269-2

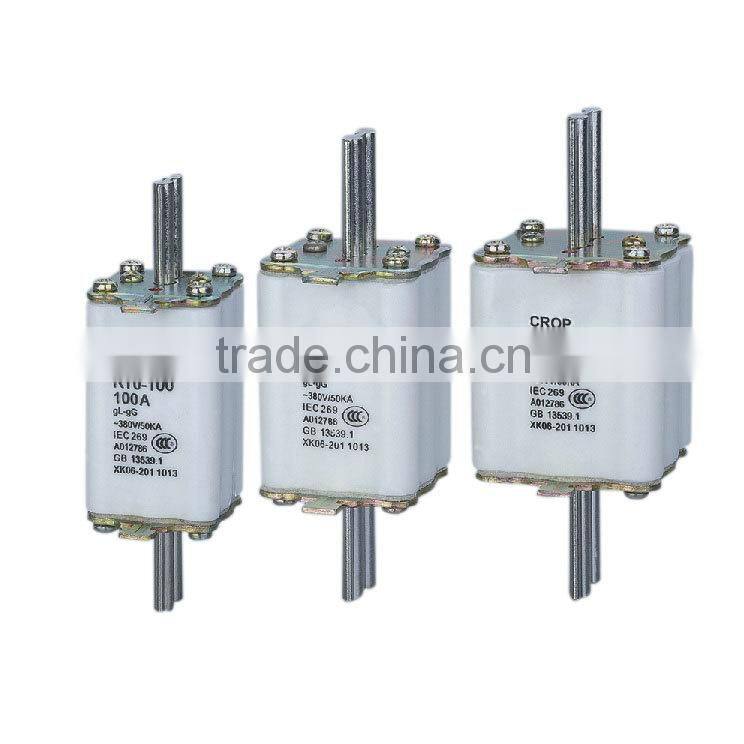

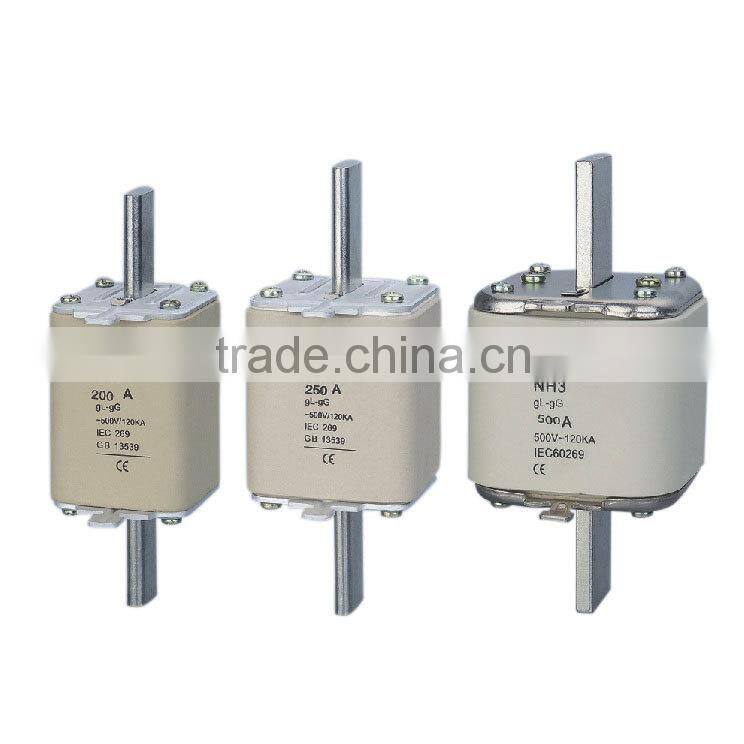

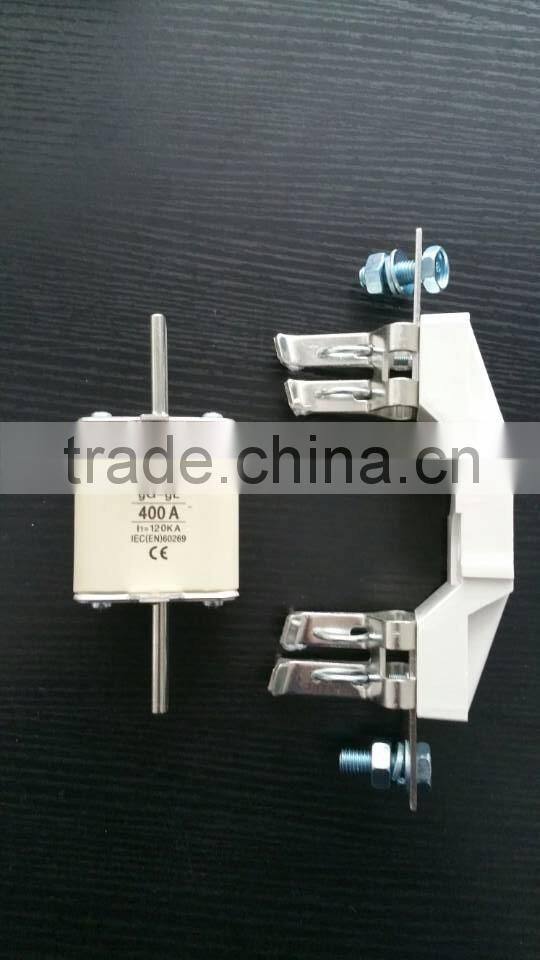

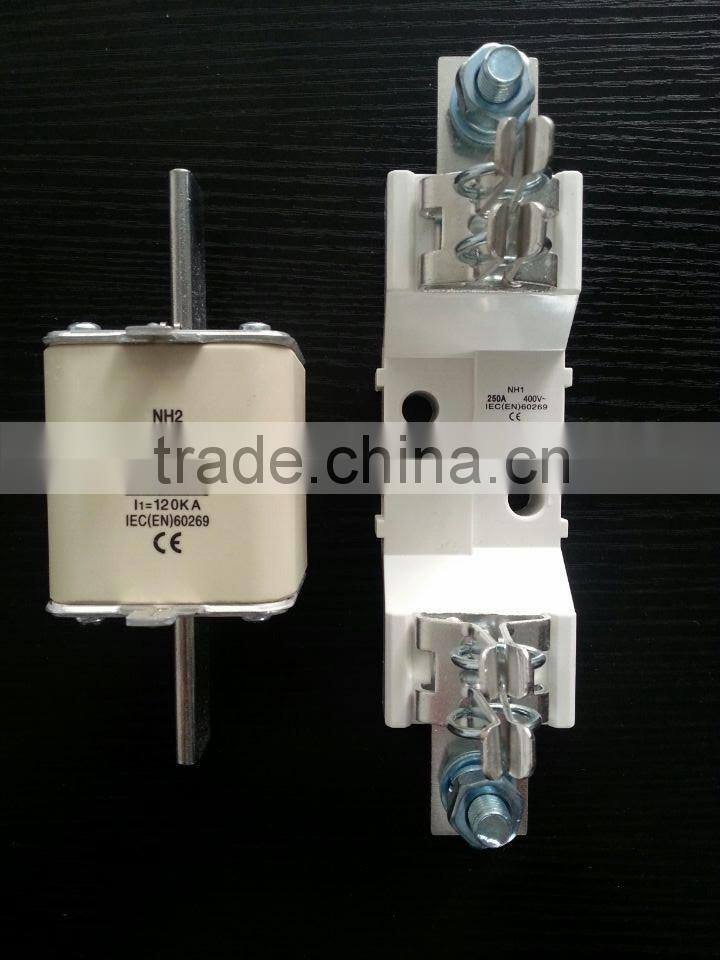

| Fuse size | Rated voltage(V) | Rated current(A) | Weight(g) |
(gG) General | |||
| NH00C | 690V,AC,80kA | 4,6,10,16,20,25,32,40,50,63,80,100 | 132 |

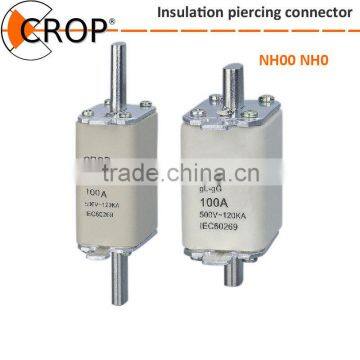

| NH00 | 10,16,20,25,32,40,50,63,80,100,125,160 | 180 | |
| NH0 | 6,10,16,20,25,32,40,50,63,80,100,125,160 | 267 | |
| NH1 | 32,40,50,63,80,100,125,160,200,224,250 | 447 | |
| NH2 | 80,100,125,160,200,2240,250,315,355,400 | 727 | |
| NH3 | 160,200,224,250,315,355,400,425,500,630 | 975 |
IEC60269-1,IEC60269-2| Size voltage(V) | Rated current(A) | Fuse size | Rated voltage | ||
| gG | aM | aR | |||

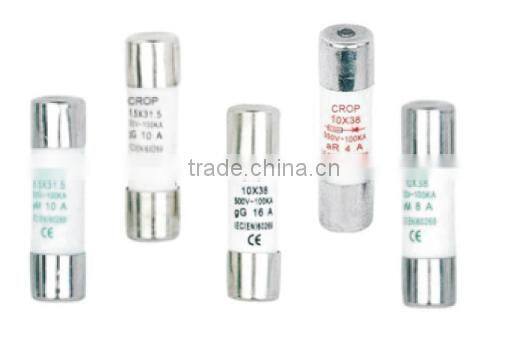

| 8.5*31.5 | 2,4,6,10,16,20 | G831 | M831 | R831 | 500V,AC,80kA |
| 10*38 | 2,4,6,10,12,16,20,25,32 | G1038 | M1038 | R1038 | |
| 14*51 | 2,4,6,10,12,16,20,25,32,40,50,60 | G1451 | M1451 | R1451 | |
IEC60269-1,IEC60269-2| Size voltage | rated current(A) | Fuse size | Rated voltage | |
| gG | aR | |||

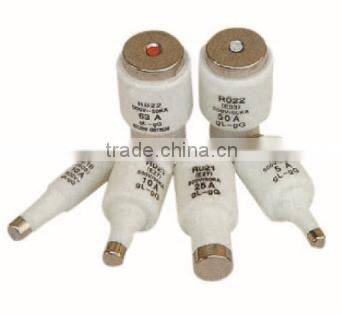

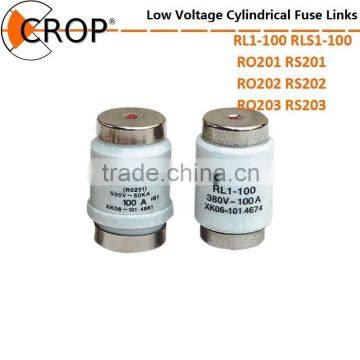

| DI | 2,4,6,10,16,20,25 | GDI | RDI | 500V,AC,50kA |
| DII | 2,4,6,10,16,20,25 | GDII | RDII | |
| DIII | 35,50,63 | GDIII | RDIII | |
| DIV | 80,100 | GDIV | RDIV | |
| DV | 125,160,200 | GDV | RDV | |
The product do not have any specific requiremrnts on storage.It is fire-resistant and it is not dangerous
1. The quoted price is always valid for 30days due to the fluctuation of raw material cost.
Please feel free to contact us for the catalogues or prices.
2. Please kindly inform us which items you are interested & the best price will be provided you upon
receipt of your new inquiry ASAP.
3. Samples will be offered to you for our future cooperation.
CROP started factory in 2001 from producing distribution box and ABC accessories , and then expands the whole line of ABC accessories and protection device for distribution box.
Lead the manufacturing of hospital furniture after 10 years' of development.
Export volume doubles every year. The dramatic growing speed enables us to set factory oversea.
Export to over 60 countries/region. Registered in EU, Russia, Panama, Costa Rica, Egypt, Kazakhstan, UAE, Algeria, Philippines etc.
Over 400 employees work in shift ensure the punctual delivery time.
R&D team is qualified to do customized project, OEM services.
Inspection is carried out all through the production process, warranty card provided.
Export sales team is professional to serve customers, quick respond and excellent after-sales.
Convenient and economy transportation, ship from Shanghai the biggest sea port of China, only 150KM away.
CE,ISO9001Certificate
