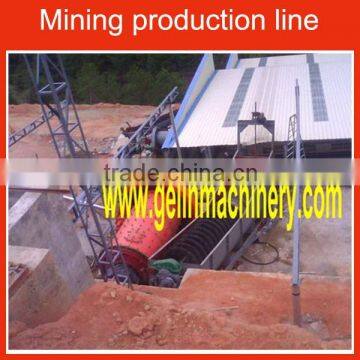

complete zirconium processing line for separating zirconium

Specifications

complete zirconium processing line for separating zirconium

 Production of Jaw crusher

Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.

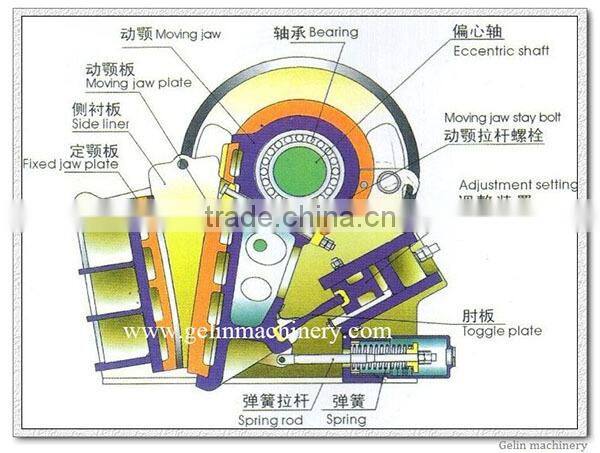

Working Principle of Stone Jaw Crusher

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

Stone Jaw Crusher Characteristics

High ratio of crushing, homogeneous final grain size, simple structure, reliable working condition, easy maintenance, low operating cost.

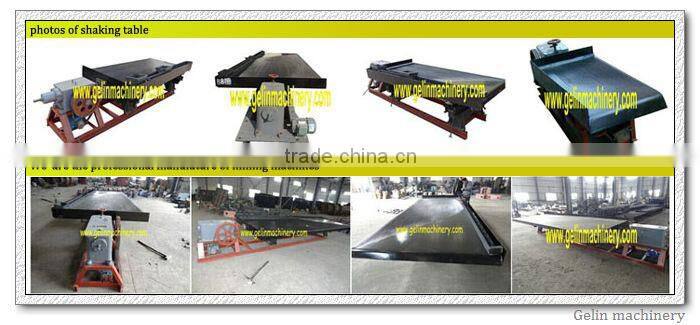

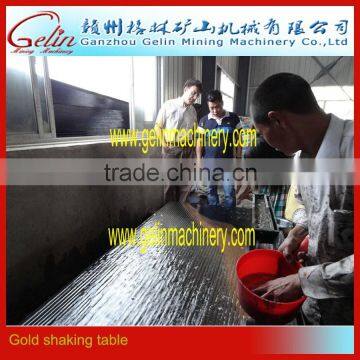

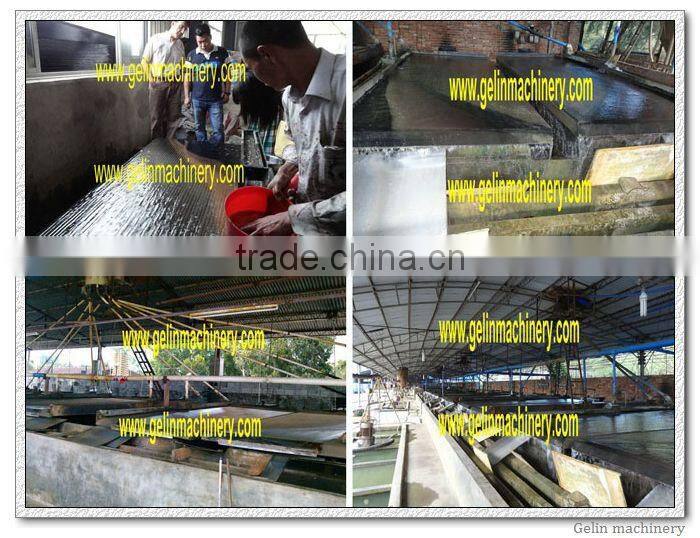

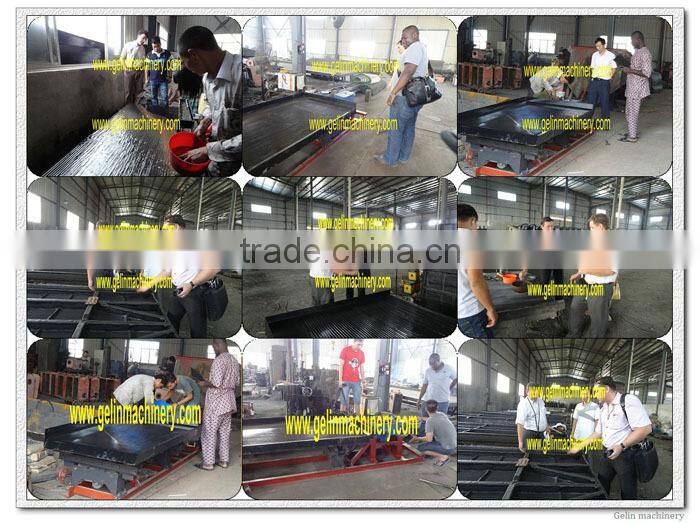

Description of vibrating table

Shaker table is widely use for separating Gold, Manganese, Chrome, Copper, Iron, Titanium, Zircon, Tungsten,

Tin, Tantalum, Barium, Lead, Mercury, Aluminum, rare metals and noble metal ore.

Features of vibrating table

♦  High recovery ratio

♦  High concentration ratio

♦  Easy installation

♦  Simple operation

♦  Deck constructed of fiber glass

♦  Three different decks to choose

♦  Long working life

♦  Adjustable stroke length and speed

Application of vibrating table

Shaker table is one of the main equipments of gravity concentration. Gravity Concentration Equipment is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.

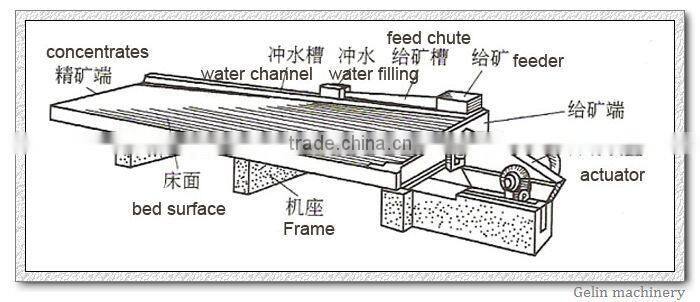

Structure Chart of vibrating table

Working principle of vibrating table

The working principle of shaking table for sale is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

Description of spiral classifier :

Spiral classifiers mainly include four types. They are high weir type single spiral classifier, high weir type double spiral classifier, immersed type single spiral classifier and immerse type double spiral classifier. A spiral classifier is composed of a transmission device, spirals, tanks, elevator mechanism, a bottom support (bearing bush) and a discharging valve.

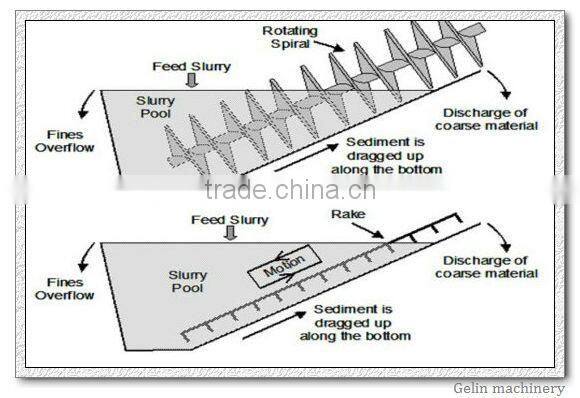

Working principle of spiral classifier :

Different grains have different specific gravity and sedimentation rates in slurry; Spiral Classifier allows fine ore to flow in the water, while coarse ore sinking to the bottom. Its spiral axle can filter materials and send coarse materials to the feeding mouth and discharge fine materials from the pipe.

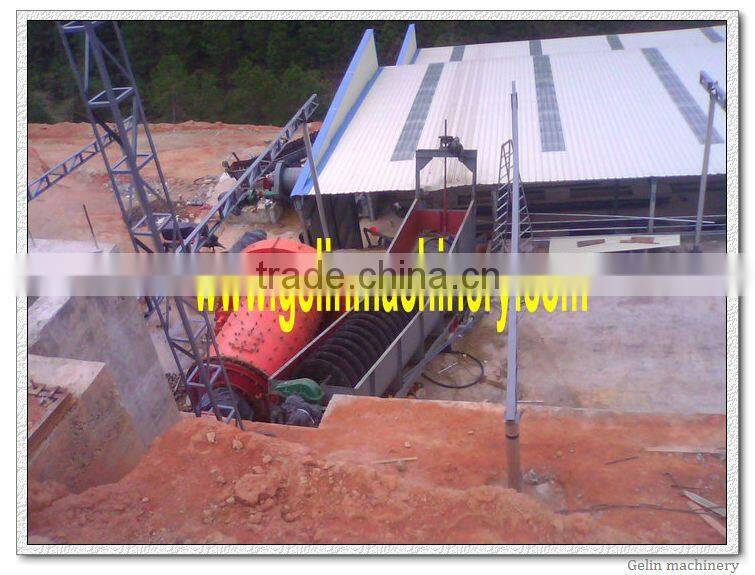

spiral classifier Application in mine sites:

Spiral Classifiers have widespread use in closed-circuit grinding operations and in the classification of products from ore-washing plants.

Here we could supply one-package service for every customer, from beginning to consult to whole machines trial running,including staff training. Customers just need inform what you have in hand & and what you want to get.The rest all we will supply & finish for you.

♦ Pre-sale services: Passion &thoughtful

We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

♦ Sale services: Oversea Technicians

Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.

♦ After-sale services: Faithfulness

One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

—We have passed ISO9001:2008 Quality System certification.

—Our products have obtained the title of "China High Quality Well-Known Products".

—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India,the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia.

—We have won high reputations from all of our clients for our machines and services.

1.Are you a manufactory or trading company?

We are manufacturer

2.Why buy from us?

1)Our factory covering an area of over 30,000 square meters

2)Our company having more than 30 sets of heavy processing equipment and with an annual output of more than 2000 sets of mining machinery

3)Our products are sold to more than 28 provinces/cities in China

4)Our products have exported to Russia,Africa,India,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada , Australia and so on

5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity

6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business

3.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.

1). What type is the mining? Is it rock stone? or it is sand?

2). If rock stone,What is the general particle size(mm) of the raw ore?

3). What is the handling capacity(tons per hour) you plan to work with?

4).What is the elements of the raw ore? How much percent % of each minerals?

4.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?

Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.

5.Can we vist your company?

Yes, our company warmly welcome clients to visit our company at anytime. we will prepare the VISA for you, and arrange hotel, traffic, translator in order to let you stay comfortable while you are visiting us. Moreover, during the visiting, you can check our factory and machinery, and take tour to some of the nearby mining project build by our company. Also, we can throughly discuss your project in order to build a flawless project in the future.

6. How long is the warrenty of your equipments? Does your company supply the spare parts?

The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.

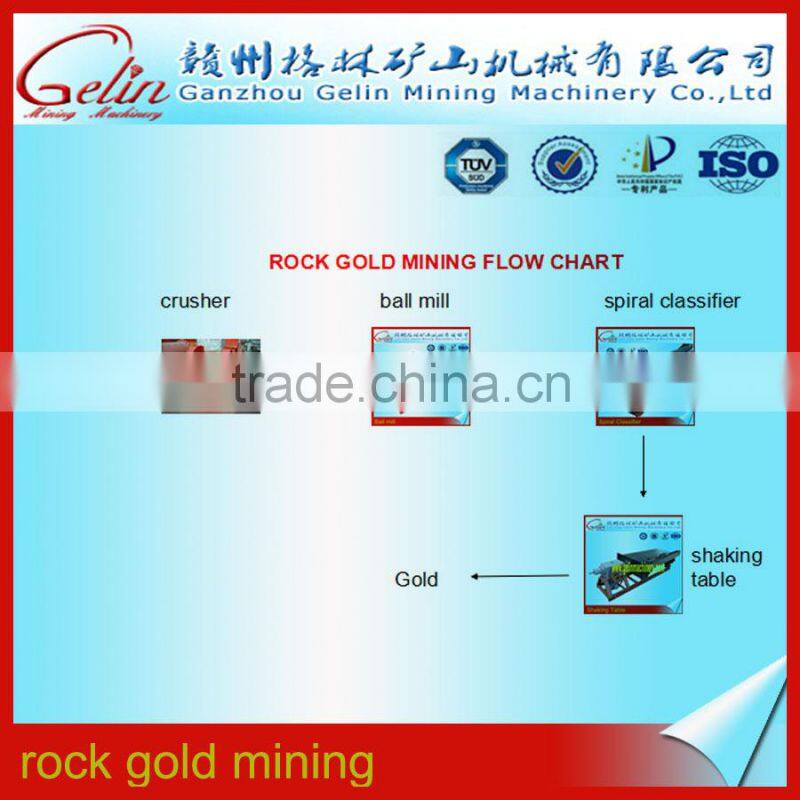

7. If i need the complete mineral processing line. is Gelin able to help us build it?

Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.

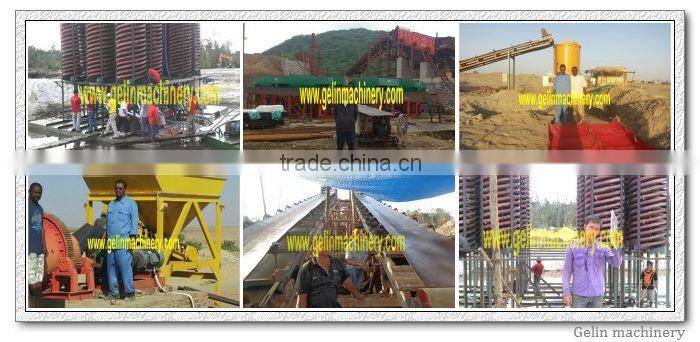

There is a rich experience engineer team of us.  we had already build many mining projects in China & Overseas.  You can believe our quality and service.
