Home > Products > ABC Accessories > H Parallel Groove Clamp Compression Type
H Parallel Groove Clamp Compression Type
- Shanghai/Ningbo China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | CROP | |
| Model Number | CRH | Type | Other | |
| Application | Power | Gender | Other |
Product Description

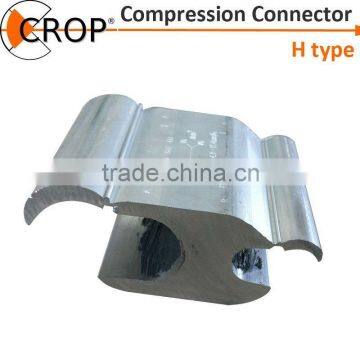

H parallel groove clamp compression type
For ACRS,aluminum and/ or copper conductors in various deadend terminal.
For cable taps and earth grid ring mains
Sector-shaped conductors must be rounded with round-forming dies.
| Type | Specification | Pressing Connection | Silicone | |||||
| Rubber | ||||||||
| Main conductor | Tap conductor | Press Mold | Times | Length | Cover | |||
| Diameter(mm) | Cross section(mm²) | Diameter(mm) | Cross section(mm²) | (mm+1) | Type | |||
| CRH11 | 4.8~8.2 | 16~35 | 4.8~8.2 | 16~35 | 0~0 | 2 | 44 | CRHZ-1 |
| CRH21 | 8.3~14 | 50~95 | 4.8~9.6 | 16~50 | 1~2 | 3 | 63 | CRHZ-2 |
| CRH22 | 13~22.4 | 50~95 | 8.3~14 | 50~95 | 1~2 | 3 | 63 | CRHZ-2 |
| CRH31 | 13~22.4 | 95~240 | 4.8~11.4 | 16~70 | 3~5 | 3 | 63 | CRHZ-2 |
| CRH32 | 16.2~22.4 | 95~240 | 11.6~16 | 70~150 | 3~5 | 3 | 63 | CRHZ-2 |
| CRH41 | 22.4~25.9 | 150~240 | 16.2~22.4 | 150~240 | 3~5 | 4 | 114 | CRHZ-3 |
| CRH51 | 22.4~25.9 | 300~400 | 10~14.5 | 70~120 | 3~5 | 3 | 89 | CRHZ-3 |
| CRH52 | 22.4~25.9 | 300~400 | 14.6~18 | 120~185 | 3~5 | 3 | 89 | CRHZ-3 |
| CRH53 | 22.4~25.9 | 300~400 | 18.9~22.4 | 185~240 | 3~5 | 4 | 118 | CRHZ-3 |
| CRH54 | 22.4~25.9 | 300~400 | 22.4~25.9 | 300~400 | 3~5 | 4 | 118 | CRHZ-3 |
CROP started factory in 2001 from producing distribution box and ABC accessories , and then expands the whole line of ABC accessories and protection device for distribution box.
Lead the manufacturing of hospital furniture after 10 years' of development.
Export volume doubles every year. The dramatic growing speed enables us to set factory oversea.
Export to over 60 countries/region. Registered in EU, Russia, Panama, Costa Rica, Egypt, Kazakhstan, UAE, Algeria, Philippines etc.
Over 400 employees work in shift ensure the punctual delivery time.
R&D team is qualified to do customized project, OEM services.
Inspection is carried out all through the production process, warranty card provided.
Export sales team is professional to serve customers, quick respond and excellent after-sales.
Convenient and economy transportation, ship from Shanghai the biggest sea port of China, only 150KM away.
CE,ISO9001Certificate
