2014 New Style Four Roller High Tension Electrostatic Separator Dry Type

Specifications

2014 New Style Four roller high tension electrostatic eparator dry type

Application

φ120(φ220,φ165)×1500 double Roller Electrical Sorter is one of the major equipment in electricity mineral separation. It is widely used in sorting titanium, zirconium, rutile, monazite, iron, tungsten, tantalum, niobium, tin and other precious minerals, It can separate material which’s particle size is from 0.1 to 2 mm and surface temperature is less than 1% of itself, It often works well with the single-disc magnetic separator and permanent magnetic sorting machine in the process of sorting ilmenite, zircon ore and other minerals.

Specification

Double roller electrical sorter machine, The machine has small size, simple structure, convenient operation and maintenance, safe, effective separation and so on, It has big amount of users in China, and they are mainly exported to Vietnam, Korea, Indonesia and other countries.

Working Principle

The Electrical sorting method used the differences of conductive of different mineral, Under the influence of electric field, mineral particles are subject to electrical and mechanical forces(centrifugal force, gravity, drag) role, then they produce different tracks that make them to be separated, so we can achieve the purpose of sorting.

When the temperature heated to 40°C-60°C after entered into the bin. the mineral particles enter into the power corona areas with the rotation roller shafts along the rotating feed roller(Grounding Electrode)surface, Corona current makes all the mineral particles(conductors and non-conductors) obtain negative charge, Because of low contact resistance. with the rotating feed roller, the conductor’s charges transfer by the roller away quickly, Under the action of mechanical forces, conductors escape away from the roller, and enter into the mineral hopper(conductors), At the same time, because of higher contact resistance with the rotating feed roller, the non-conductors’charges couldn’t transfer by the roller away as quickly as conductors’, so they are forced in the roller surface owing to the role of electrostatic force, with the rotating feed roller, the non-conductors enter into the back of the roller, and are unloaded under brush, Then they are collected in the excellent hopper(non-conductors), At last the Semiconductor mineral particles or failed to fully discharge the conductor mineral particles enter into the middle hopper(semiconductor mineral particles).

Performance Characteristic

♦ With the reasonable structure, advanced technology,

♦ convenient operation, complete protection,

♦ high degree of automation, safety and reliable, with better separating effect.

♦ Separation of high accuracy, can make the 120 mesh mineral to 2 mm.

♦ High degree of automation, to achieve the feeding, heating, speed adjustment, high-pressure discharge, with high security.

Structure

Double roller Electrical Sorter is formed mainly by ore equipment, grounded roller, electrode, corona electrode, deflection electrodes, divided mineral board, high voltage electron genetator and so on.

The main Technical Parameters of  Double roller electrical sorter machine

(Grounded roller electrode):

Quantity: two

Diameter: 120mm

Length: 1500mm

Speed: 120, 160, 200, 300, 400, 500r/min

120, 160, 200, 300, 400, 500 turn/min

Corona electrode: The diameter is 0.3mm, and each roller has one.

Deflection electrode: The diameter is 40mm, and each roller has one.

Operating voltage: 0~45kv, and the input is negative.

Particle size of mineral: Not more than 3mm.

Processing ability: 0.5~3 ton/hour.

Transmission power: 1.1~1.5kw, Speed variable motor.

Heating power: Y_4.5kw/_13kw.

Grounding resistance: Less than 10 Ohm.

Material heating method. Manual/Auto.

Host dimensions:

Length: 2090mm

Width: 1020mm

Height: 2855mm

Host weight: 1.9ton

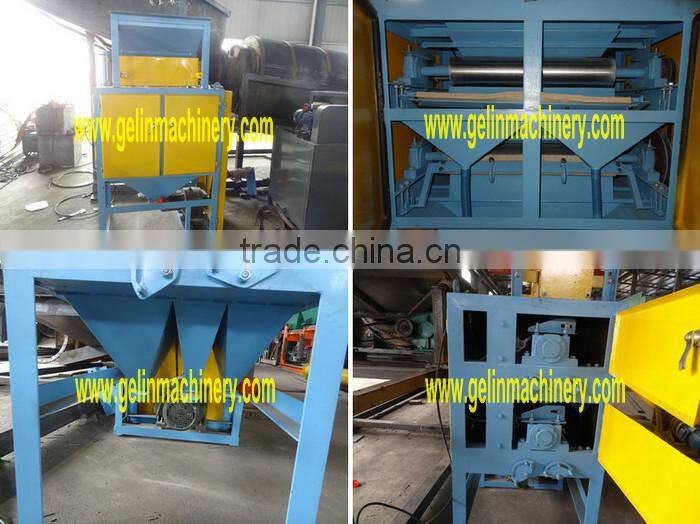

PHOTOS of Double roller electrical sorter machine

The main Technical Parameters of Four roller electrical sorter machine

Quantity: Four

Diameter: 120mm-220mm

Length: 1500mm

Speed: 0-500r/min

Corona electrode: The diameter is 0.3mm~0.5mm, and each roller has one.

Deflection electrode: The diameter is 40mm, and each roller has one.

Operating voltage: 0~45kv,and the input is negative.

Particle size of mineral: Not more than 3mm.

Processing ability: 0.5~3 ton/hour.

Transmission power: 1.1~1.5kw, Speed variable motor.

Heating power: Y_4.5kw/_13kw.

Grounding resistance: Less than 10 Ohm.

Material heating method. Manual / Auto.

Host dimensions:

Length: 2090mm

Width: 1020mm

Height: 4500mm

Host weight: 2ton.

Four Roller Electrical Sorter is formed mainly by ore equipment, grounded roller, electrode, corona electrode, deflection electrodes, divided mineral board, high voltage electron genetator and so on.

PHOTOS of  Double roller electrical sorter machine

Application: Zircon ore, rutile, monazite, ilmenite, tin, gold etc.

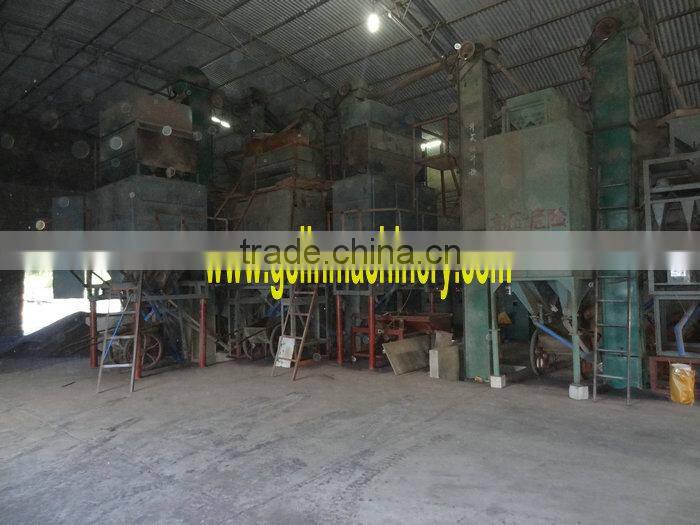

Our equipments used in large scale zircon, rutile, ilmenite minerals sand project:

One Stop Service

1. Start by running the mineral beneficiation experiment. To provide our clients with best solution accordinly.

2. Besides supply the flowchart design & equipments, we also provide the infrastructure design.

3. After the installation, debugging of the equipments, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

PER-SALE SERVICES

1. Based on clients' request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly.

2. Select equipments model, provide flowchart design for our clients.

3. Design & manufacture products according to clients' demands.

AFTER-SALE SERVICE

1. Pre-check and test the products before delivery.

2. Deliver the whole plant design for our clients which including:Infrastructure & Electrical system & Pipeline design.

3. Trace the status of the shipping until the products received.

4. Prepare required documents to let clients pass custom clearance.

5. Dispatch experts to carry out below service on site.

1). Installation & Debug of the machinery on site.

2). Train the first-line operators & technical personnel on site.

3). Carry out any other service clients may needed.

6. Provide technical exchanging & spare parts for life -long term.
