120tph capacity gold centrifuge stlb120

Specifications

120tph capacity gold centrifuge stlb120

 1.Introduction of gold centrifugal concentrator

Centrifuge is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

The STL Centrifuge will separate any heavy material from any light material so long as there is sufficient difference in the densities of the individual particles in question. The Concentrator can treat particle sizes from below 10 microns up to a maximum of 6mm and is most commonly used for recovery in Gold and Platinum. Other recovery uses include Mercury, Palladium, Tantalum, Copper, Silver and Diamond Indicator Minerals.

Rugged design and a high degree of quality manufacturing ensures that every Concentrator will provide many years of reliable, trouble-free operation in even the most severe operating environments.

2.Specification of gold centrifugal concentrator

3.Structure of gold centrifugal concentrator

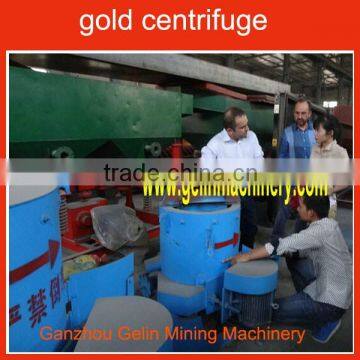

Water Jacket gold concentrator consists of pipelines, mainframe, tailing chute, drive motor, vertical shaft and separation device.

The separation device is cone unit includes two layers; the inner layer is made by stainless steel plate, with circle gratings and small holes on the wall, the outer layer is made by mild steel plate. The two layers form a close water jacket system.

4.Operation principle of gold centrifugal concentrator

The main shaft is a hollow shaft, the pressurize backwash water come from the shaft, then goes into the separation unit, the water spray from holes to the gratings. During the process, the pressure of the water shall be 0.06-0.15MPa.

The slurry which is mixed with water and grinded ore and sand will be injected to the mainframe. With the heavy centrifugal force, the slurry will be move upward along the cone body, the light particles will be extracted from the upper part of cone, then discharge through the tailing outlet. The heavy particles will be stay in the gratings of the inner layer.

5.Application of gold centrifugal concentrator

According to the experiments and application for years, the water jacket gold concentrator shows a high operation performance and low maintenance. The gold concentrator can completely replace the tradition amalgamation process in the gold separation plant. It is a environment-friendly technology.

Four models are available. Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of 0. 074mm, the recovery for the natural gold is expected up to 98%, For that natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours, and the upgrade ratio is up to 1,000 times. The equipment is patented in China.

Here we could supply one-package service for every customer, from beginning to consult to whole machines trial running,including staff training. Customers just need inform what you have in hand & and what you want to get.The rest all we will supply & finish for you.

♦ Pre-sale services: Passion &thoughtful

We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

♦ Sale services: Oversea Technicians

Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.

♦ After-sale services: Faithfulness

One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

—We have passed ISO9001:2008 Quality System certification.

—Our products have obtained the title of "China High Quality Well-Known Products".

—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India,the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia.

—We have won high reputations from all of our clients for our machines and services.

1.Are you a manufactory or trading company?

We are manufacturer

2.Why buy from us?

1)Our factory covering an area of over 30,000 square meters

2)Our company having more than 30 sets of heavy processing equipment and with an annual output of more than 2000 sets of mining machinery

3)Our products are sold to more than 28 provinces/cities in China

4)Our products have exported to Russia,Africa,India,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada , Australia and so on

5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity

6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business

7)Certificate---Our products has passed CE,ISO9001:2008

3.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.

1). What type is the mining? Is it rock stone? or it is sand?

2). If rock stone,What is the general particle size(mm) of the raw ore?

3). What is the handling capacity(tons per hour) you plan to work with?

4).What is the elements of the raw ore? How much percent % of each minerals?

4.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?

Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.

5.Can we vist your company?

Yes, our company warmly welcome clients to visit our company at anytime. we will prepare the VISA for you, and arrange hotel, traffic, translator in order to let you stay comfortable while you are visiting us. Moreover, during the visiting, you can check our factory and machinery, and take tour to some of the nearby mining project build by our company. Also, we can throughly discuss your project in order to build a flawless project in the future.

6. How long is the warrenty of your equipments? Does your company supply the spare parts?

The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.

7. If i need the complete mineral processing line. is Gelin able to help us build it?

Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.

There is a rich experience engineer team of us.  we had already build many mining projects in China & Overseas.  You can believe our quality and service.

Our factory can supply the complete mining equipments( such as shaking table,Jaw crusher, ball mill,flotation,magnetic separator,feeder,classifier,ore washing machine and lab equipment etc.) in separating gold,copper,manganese,chrome,tungsten,tin,nickel,iron,titanium,lead,zinc,tantalum and some non-ferrous metals like quart,zircon,barite,etc.
