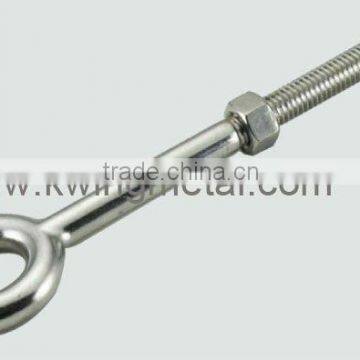

Stainless Steel Machinery Eye Bolt G291
Negotiable
1 (Min.Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | K-Wing | |
| Material | Stainless steel |
Product Description
Specifications
Stainless Steel Machinery Eye Bolt G291High Polished Stainless Steel - AISI 316
Stainless Steel Machinery Eye Bolt G291
High Polished Stainless Steel - AISI 316
| Art No. | G | L | L1 | D | WLL |
| (inch) | (inch) | (inch) | (lbs) | ||
| MR0636-0602 | 1/4" | 2.00 | 1.50 | 0.5 | 400 |
| MR0636-0604 | 1/4" | 4.00 | 2.25 | 0.5 | 400 |
| MR0636-0802 | 5/16" | 2.25 | 1.50 | 0.62 | 720 |
| MR0636-0804 | 5/16" | 4.50 | 2.50 | 0.62 | 720 |
| MR0636-1002 | 3/8" | 2.50 | 1.25 | 0.75 | 930 |
| MR0636-1004 | 3/8" | 4.50 | 2.25 | 0.75 | 930 |
| MR0636-1006 | 3/8" | 6.00 | 2.50 | 0.75 | 930 |
| MR0636-1203 | 1/2" | 3.25 | 1.50 | 1 | 1560 |
| MR0636-1206 | 1/2" | 6.00 | 3.00 | 1 | 1560 |
| MR0636-1208 | 1/2" | 8.00 | 3.00 | 1 | 1560 |
| MR0636-1210 | 1/2" | 10.00 | 3.00 | 1 | 1560 |
| MR0636-1212 | 1/2" | 12.00 | 3.00 | 1 | 1560 |
| MR0636-1604 | 5/8" | 4.00 | 2.00 | 1.25 | 3120 |
| MR0636-1606 | 5/8" | 6.00 | 3.00 | 1.25 | 3120 |
| MR0636-1608 | 5/8" | 8.00 | 3.00 | 1.25 | 3120 |
| MR0636-1904 | 3/4" | 4.50 | 2.00 | 1.5 | 4320 |
| MR0636-1906 | 3/4" | 6.00 | 3.00 | 1.5 | 4320 |
| MR0636-1908 | 3/4" | 8.00 | 3.00 | 1.5 | 4320 |
| MR0636-2205 | 7/8" | 5.00 | 2.50 | 1.75 | 6360 |
| MR0636-2208 | 7/8" | 8.00 | 4.00 | 1.75 | 6360 |
| MR0636-2212 | 7/8" | 12.00 | 4.00 | 1.75 | 6360 |
| MR0636-2506 | 1" | 6.00 | 3.00 | 2 | 8000 |
| MR0636-2509 | 1" | 9.00 | 4.00 | 2 | 8000 |
| MR0636-2512 | 1" | 12.00 | 4.00 | 2 | 8000 |
| MR0636-2518 | 1" | 18.00 | 7.00 | 2 | 8000 |
| MR0636-3208 | 1-1/4" | 8.00 | 4.00 | 2.5 | 12600 |
| MR0636-3212 | 1-1/4" | 12.00 | 4.00 | 2.5 | 12600 |
| MR0636-3220 | 1-1/4" | 20.00 | 6.00 | 2.5 | 12600 |
