Home > Products > PDC Bit > 3-8 Blades Matrix Body Oil Drilling Pdc Drill Bit API Standard Quality Choice
3-8 Blades Matrix Body Oil Drilling Pdc Drill Bit API Standard Quality Choice
- Tianjin
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | srf, SRF&Kingdream | |
| Model Number | Various | Type | Drill Bit | |
| Machine Type | Drilling Equipment | Certification | Other | |
| Material | Other | Processing Type | Casting | |
| Use | Well Drilling |
Product Description
3-8 blades matrix body oil drilling pdc drill bit API standard
1.PDC bits series:
1 steel body PDC bit
2 matrix body PDC bit
Registered Brand  | SuRuiFeng-SRF  |
Available sizes  | 4 5/8inch,5 1/2inch,5 5/8inch,5 7/8inch ,6inch,6 1/2inch,6 1/8inch,6 3/4inch,7 7/8inch,7 1/2inch,8 1/2inch,8 1/8inch,8 3/8inch,8 3/4inch,9 7/8inch,9 1/2inch,9 5/8inch,10 5/8inch,11 5/8inch,12 1/4inch,13 3/4inch,14 3/4inch,15 1/2inch,16inch,17 1/2inch  |
2.PDC bit size and code
Formation  | Lithology  | IADC  |
Very soft  | Clay  | M121  |
Mudstone  | M222  | |
Marl  | M222  | |
soft  | Marl  | M223  |
Rock salt  | M232  | |
Gypsum  | M232  | |
Sandstone  | M232  | |
Medium   | Shale  | M322  |
Sandstone  | M322  | |
Cretaceous   | M323  | |
Medium  | Shale  | M323  |
Mudstone  | M323  | |
Sandstone  | M323  | |
Limestone  | M323  | |
Medium  | Shale  | M422  |
Mudstone  | M333  | |
Sandstone  | M422  | |
Limestone  | M423  | |
Anhydrites  | M432  | |
hard  | Dolomite  | M432  |
Siltstone  | M433  | |
Limestone  | M433  | |
Dolomite  | M433  | |
Quartzite  |
  | |
Very hard  | Quartzite  |
  |
Basalt  |
  | |
Flint  |
  |
3.Application
1,Suit for drilling medium to medium-hard formations.
2,Evolute asymmetrical blade cutter design and balanced bit load so that bit whirl is prevented.
3,Composite gage protection and low torque design improve rate of penetration.
4,CFD hydraulic balance design results in better bit cleaning and cutting removal .
5,Combined utilization of high performance PDC compacts significantly prolongs bit life
6,Higher nozzle counts and/or fixed ports to best serve cleaning,cooling and cuttings evacuation
requirements with
available hydraulic flows.Allows for higher flow rates with minimal increase in pump pressure.
Feature:Diamonds are impregnated in the matrix behind the PDC cutters
Benefit:Increased footage drilled in abrasive applications.
4.Product Description-----high quality PDC drill bit :
1. Cutting structure is force balanced and bit blade is asymmetrically designed so that the load on
bit is balanced that
resulting better stability of the bit.
2. Main cutter are high performance PDC cutters to insure service life of the bit while improving ROP.
3. Cutter exposure is optimized to insure the bit can achieve higher ROP is soft to medium formations.
4. Shock absorbers are designed to make the bit capable of drilling through formations with hard strigers.
5. Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance
cleaning and
cooling effects of the bit to effectively prevent bit from balling.

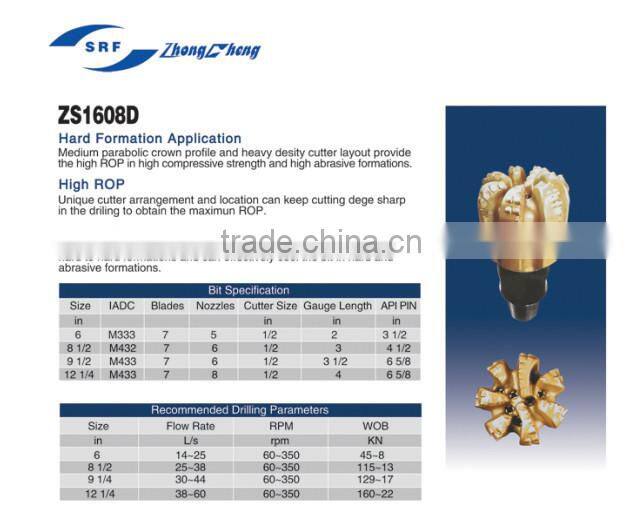

5.Detailed PDC bits
6.ZhongCheng Certificate

ZhongCheng Attend many exhibitions
ZhongCheng has customers from many countries:
Contact Us !

Contact Us
                - Hejian Zhongcheng Drill Bit Manufacture Co., Ltd.
 - Contact nameLeia Sun Chat Now
 - Phone0086-317-3223932
 - AddressFuyingmen6,Beihuan road, Cangzhou, Hebei
