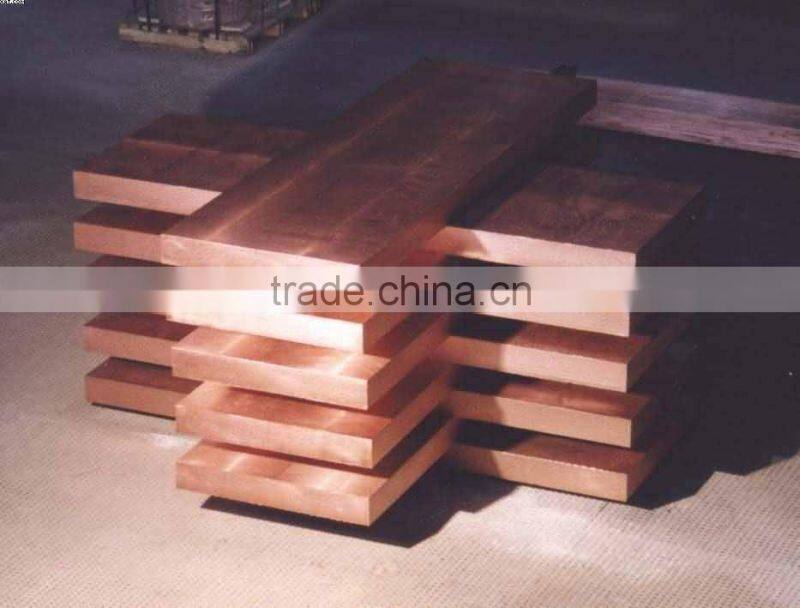

CuCd1Sn Sheet Cadmium Tin Copper Alloys

FOB Price

US$ 25 - 35 / Kilogram

100 Kilograms(Min. Order)

Port xiamen china
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	ALB-ALLOY
Model Number	C16500	Application	Electrical Conductor
Diameter	from dia.1mm to dia.50mm	Shape	Hexagonal
Length	3000mm	Grade	Copper
Cu (Min)	abt. 98.50%	Alloy Or Not	Is Alloy

Product Description

Specifications

CuCd1Sn Sheet Cadmium Tin Copper Alloys
1, high tensile strength
2,good electrical conductivity

CuCd1Sn Sheet Cadmium Tin Copper Alloys

CuCd1Sn-UNS.C16500 Cadmium Tin Copper alloys

A). CuCd1Sn-UNS.C16500 Cadmium Tin Copper alloys Details
CuCd1Sn-UNS.C16500 Cadmium Tin Copper alloys
CuCd1Sn-UNS.C16500 Cadmium Tin Copper alloy offers an excellent and difficult to acquire combination of high tensile strength and good electrical conductivity. The nominal composition of 98.6% copper with cadmium and tin gives this alloy excellent strength and wear characteristics while retaining good thermal and electrical conductivity. It also has good corrosion resistance.

Due to the content of Fe and Sn, the C16500 slightly stronger than C16200.

Meanwhile, C16500 Cadmium Tin Copper has good hot workability. Its cold working properties are excellent, and the alloy draws readily. It work hardens somewhat more readily than pure copper and may require intermediate annealing through an extensive set of cold working operations.

Typical Application for CuCd1Sn-UNS.C16500 Cadmium Tin Copper alloys:
Electrical Industry: Resistance Welding Electrodes, Circuit Breaker Switches, Stud Bases for Power Transmitters, Electrical Conductor Material
Consumer: Rod Extensions, Pencil-type, Light Soldering Guns, Tips
Industrial: Connectors, Solderless Wrapped, Welding Wheels, Trolley Wires

Available Sizes:
Custom Diameter & Sizes, Random Mill lengths

Available Products (forms):
Round bars, Flat bars, Square bars, Wires
Custom shapes are available upon request.

B).
CuCd1Sn-UNS.C16500 Cadmium Tin Copper

Chemical Composition:
Cd: 0.60-1.00%
Tin: 0.50-0.70%
Fe: 0.02% Max.
Cu: Reminder

C).
CuCd1Sn-UNS.C16500 Cadmium Tin Copper
Typical Physical Properties:
Density at 68°F: 0.321 Lbs./In.3
Specific Gravity: 8.90
Melting Point (Liquidus): 1070°C (1958°F)
Coefficient of Thermal Expansion per °F: 9.8 x 10-6 (77-212°F)
Electrical Conductivity at 68°F (volumetric): 90% IACS (aged and drawn)
Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 146
Modulus of Elasticity - Tension: 17,000 ksi
Note:
1). the units are based upon US Customary.
2). the typical physical properties apply to age hardened products.
D). CuCd1Sn-UNS.C16500 Cadmium Tin Copper
International Specification/Production Standards:
Rods/Bars/Wires: UNS.C16500, CDA 165, ASTM B105, ASTM B9
European Standards: CuCd1Sn, DIN 17666
Note:
ASTM: American Society for Testing and Materials
Note: Unless otherwise specified, material will be produced to ASTM.

E).
CuCd1Sn-UNS.C16500 Cadmium Tin Copper
Mechanical Properties:
The detailed Mechanical Properties will be available on request from customers.

F). CuCd1Sn-UNS.C16500 Cadmium Tin Copper
Most Commonly Temper Used:
Rods/Bars/Wires: 1/2 H (TD02), H (TD04), HT(TH04)
