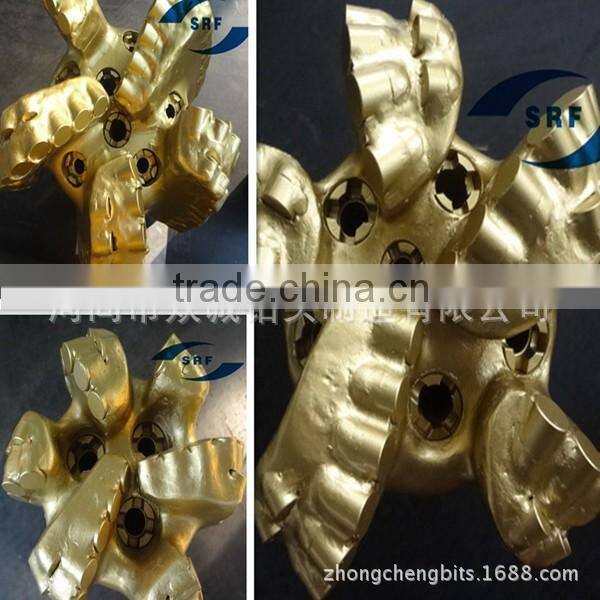

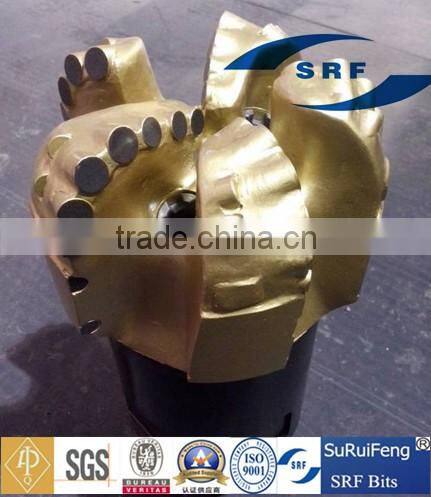

5 Blades Drill Bit , Steel Body PDC Bit High Quality With Best Price
US$ 1,000 - 10,000
/ Piece
1 Piece(Min. Order)
- Tianjin seaport or Beijing airport
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | SRF | |
| Machine Type | Drilling Tool | Material | Other, High Manganese Steel, Carbide | |
| Model Number | PDC drill bit | Processing Type | Forging |
Product Description
Product Description
Ø SOFT TO MEDUM FORMATION DRILLING
Parabolic profile with medium to lower cutter density helps to obtain better ROP in soft to medium formations with low compressive strength and small abrasive layers.
Ø DURASET GAUGE
Super strong material promotes gauge wear resistance to provide long bit life.
Ø UNIQUE BCKERACK DESIGN
The cutter’s back-rake has been unique design, reducing the bit torque and increasing aggressiveness.
Technical parameter
| Number of Blades | 5 |
| Number of Nozzles | 7SP |
| Total Number of Cutters | 42 |
| Primary Cutter Size | 16mm |
| Standard Gauge Length | 2.5’’(64mm) |
| Junk Slot Length | 16.2 in2(105cm2) |
| API Pin Connection | 4-1/2’’API Reg. |
| Hydraulic Flow Rate | 400~600 GPM/25~38 L/S |
| Rotation Speed | 60~350 RPM |
| Weight on Bit | 3~18Klbs/14~80KN |
| Maximum Weight on Bit | 18Klbs/80KN |
