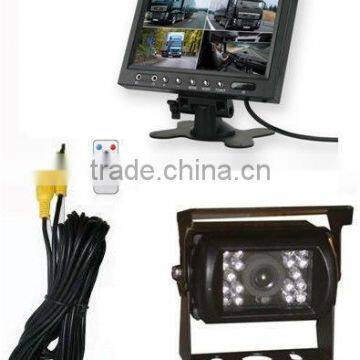

Bus rear view system
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Type | Reverse Camera | Voltage | Other, 12-24V | |
| Power | 5W | Car Make | bus/ truck/coach | |
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | BDRV-07S |
Product Description
Specifications
Bus rear view system1. 7 inch slip/quad monitor
3. working voltage 12-24V
Bus rear view system
Specifications:
TFT LCD Monitor
Screen size: 7"
Screen ratio: 16:9/ 4:3 switchable
Signal System: PAL/NTSC auto switching
Resolution: 1440(H) x 234 (V)
Brightness: 300CD
View angle: 90°
Operation Voltage: 12V DC
Power Consumption: 500mA
Operating temperature: -20C - +60C
Dimensions: 175mm x 130mm x 22mm
N. weight: 376g
Color CCD Camera
Image pick -up device: 1/4" Sharp CCD
Signal System: NTSC (or PAL)
Horizontal resolution :420TV Lines
Effective pixels: NTSC: 510(H) x 492(V) PAL: 510(H) x 582(H)
Sync System: Internal Synchronization
IR night-vision range: Approx. 10m
Min. Illumination: 1.0 lux or 0 lux (with IR on)
S/N Ratio: >= 48dB
Lens: 2.4mm glass lens
Operating temperature: -20C - +60C (RH 95% max.)
Storage temperature: -25C - + 85 C (RH 95% max.)
Power supply:12V DC, 400mA
N. weight: Approx.300g
Package contents:
1 7 inch TFT LCD Monitor
1 Camera
1 20m Waterproof Cable
1 Remote Control
1 Manual
