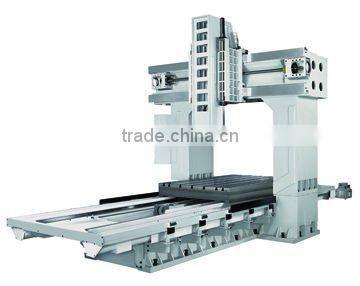

cnc gantry machine / planer milling machine / bridge type machining centerX/Y/Z travel: 4200 x 3100 x 1000 mm
cnc gantry machine / planer milling machine / bridge type machining center
Model: VMC-4231LG
(1) Main specifications:
Model | VMC-4231LG |
Table size | 4000 x 2500 mm |
T-slot (number x width x pitch) | 13 x 22mm x 200mm |
Max. load permissible | 15000 kgs |
X axis travel | 4200 mm |
Y axis travel | 3100 mm |
Z axis travel | 1000 mm |
Spindle nose to table | 225-1225 mm |
Distance between columns | 3100 mm |
Spindle taper | BT50 / DIN 69871A (option) |
Spindle speed | Two step variable gear head: 10-6000 rpm (standard), 10-4500 rpm (option) |
Spindle diameter | 100 mm |
X axis rapid feedrate | 12 m/min |
Y/Z axes rapid feedrate | 12 / 10 m/min |
Cutting federate (X/Y) | 1-7500 mm/min |
Ballscrew diameter & pitch (X/Y/Z) | ψ80/63/50 mm, P25/20/10 |
Ballscrew driven (X/Y/Z) | Gear / Belt / Belt |
Tool capacity | 32 tools (Opt. 40 tools) |
Max. tool diameter / adjacent tool | 125 / 215 mm |
Max. tool length | 350 mm |
Max. tool weight | 20 kgs |
Pull stud | MAS403 P50T-1 / DIN 69872 Form A (option) |
Spindle motor (cont. 30min rating) | 18.5/22 KW ( FAUUC A18/7000i) |
Max. spindle torque | 6000rpm: 564 Nm, (Opt. 4500rpm: 752 Nm) |
Servo motor X/Y/Z (Fanuc) | 6/7/7 KW (A40/A30/A30B) |
Cutting fluid pump | 0.75 KW |
Positioning accuracy (JIS 6338) | ±0.005/300 mm, ±0.015 length |
Positioning accuracy (VDI 3441) | P 0.025 mm |
Repeatability (JIS 6338) | ±0.003 mm |
Repeatability (VDI 3441) | Ps 0.020 mm |
Power capacity | 65 KVA, 220V, 3 phase 50/60 |
Air pressure capacity | 5 kg/cm² |
Coolant tank capacity | 750 liters |
3 Axes guide way | X 4 roller, Y 2 roller, Z Turcite box way |
Machine dimension (L) | 11000 mm |
Machine dimension (W x H) | 6050 x 4800 mm |
Machine weight | 43000 kgs |
(2) Machine structure introduction:
(a) X axis adopt linear guide; Y & Z axis adopt box way.

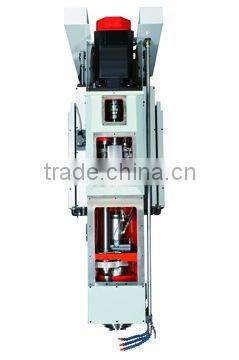

(b) Built-in spindle BT-40 & BT-50 are available.
(c) Multilayer enhanced rib on base and bridge plus heat treated and stress relief process
provides super rigid machine structure.
(3) Standard accessories:
1. Spindle oil cooler | 2. Semi splash guard |
3. Auto lubrication system | 4. Coolant system |
5. Double chain & screw type chip conveyor and cart | 6. Chain type 32T ATC |
7. Rigid tapping | 8. Work lamp |
9. Warming lamp | 10. Foot switch for clamping / unclamping |
11. RS-232 interface | 12. Leveling bolts and pads |
13. Remote MPG | 14. Heat exchanger for electric cabinet |
15. Auto power off (M30) | 16. Toolbox and adjustment tools |
17. Transformer | 18. Mitsubishi M70 controller |
19. Operation manual & test report |
|
(4) Optional accessories:
1. Fully enclosed splash guard | 2. NC rotary table |
3. Auto tool length measurement device | 4. Auto work piece measurement device |
5. Coolant through spindle | 6. Coolant through tool holder |
7. 30/45/90 degrees angular milling head | 8. Universal manual milling head |
9. Extended head | 10. 4500rpm two steps gear head |
11. 3-Axis linear scale | 12. Chain type 40T ATC |
13. Oil skimmer | 14. Fanuc 18i-MB / 0i-MD (only for LG series) controllers |
15. Mitsubishi M720 controller |
|
(5) Super Rigid Design (for LG series):
(a) Distance between guide ways of Y axis: 605 mm
(b) Distance from spindle center to Y axis: front 340 mm
(c) Spindle center to Z axis: guide way front 95 mm
