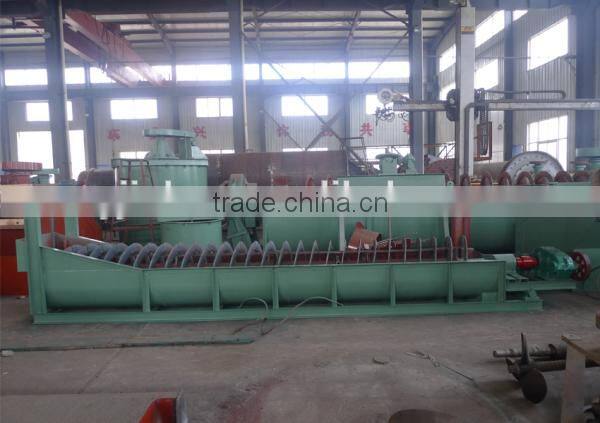

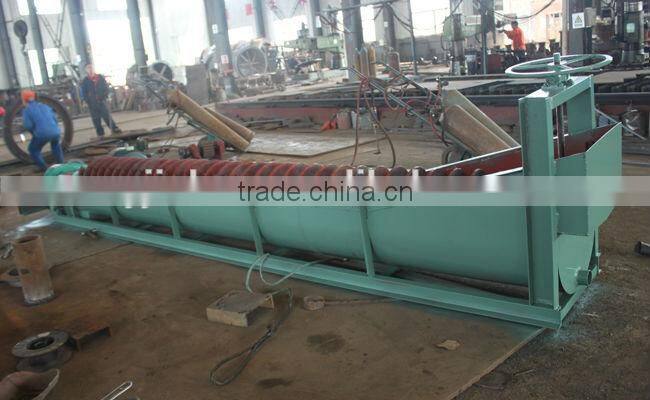

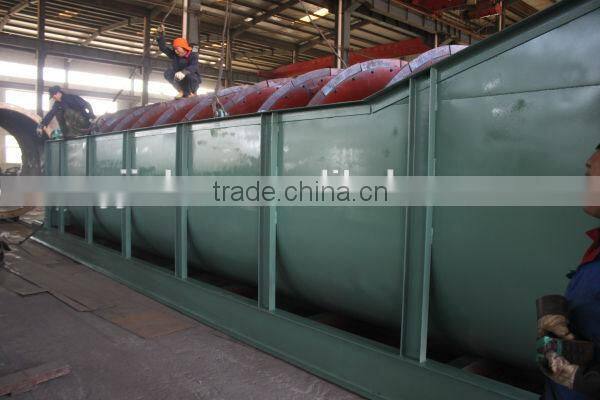

Gold Mining Equipment Ore Classifying Mining Spiral Classifier

gold mining equipment ore classifying mining spiral classifier

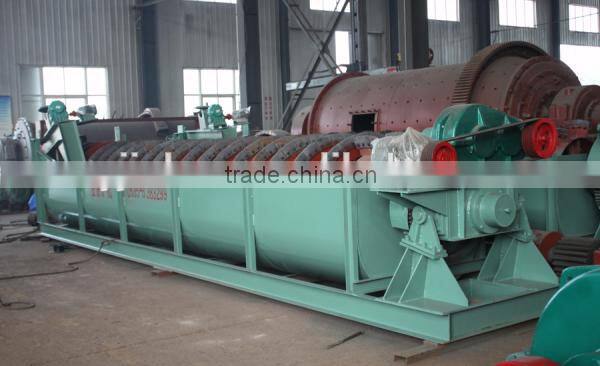

Working Principle of Ore Spiral Classifier:

This classifier can filter materials and send coarse materials to the feeding mouth and discharge fine materials from the pipe. The seat of the machine features channel steel material, while the body is armor plated and the spiral axle is made of cast iron for durability. The machine's lifting equipment can be used manually or electronically.

Product Details:

1.In order to match the drum feeder of the ball mill, a sand scraper is installed, which makes the ore pulp flow from the side to the drum feeder of the ball mill.

2.Some models of classifier adopt rolling bearing instead of the original sliding bearing, which reduces the frictional resistance and avoids the frequent replacement and maintenance of bearing. In addition, the ZQ or ZL reducer is used for reducing the time of installation and maintenance.

3.The lubrication parts have been improved and the large-size products equipped with grease pumps to make the lubrication reliable.

Pruduct Remark:

1.While placing order, please specify the type, quantity, especially the spiral direction of classifier.

2.In order to be good matching with relevant ball mills, the lengthened type of classifier(lengthening the sand return zone, lengthening the settling zone) can be designed and made according to customer demands, and the length should be indicated.

3.This classifier has several revolutions, if there is no special requirement, the normal rotate speed classifier will be provided.

Technical Parameters of Spiral Classifier:
