Spiral Ore Classifier Mining Machine Cyclone Separator

FOB Price

US$ 5,000 - 85,000 / Set

1 Set(Min. Order)

Port Yantai;Shanghai;Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Sprial Separator
Place of Origin	Shandong, China	Brand Name	JI XIANG
Model Number	FL	Certification	ISO9001:2008
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

cyclone separator mining machine cyclone separator

Products details:

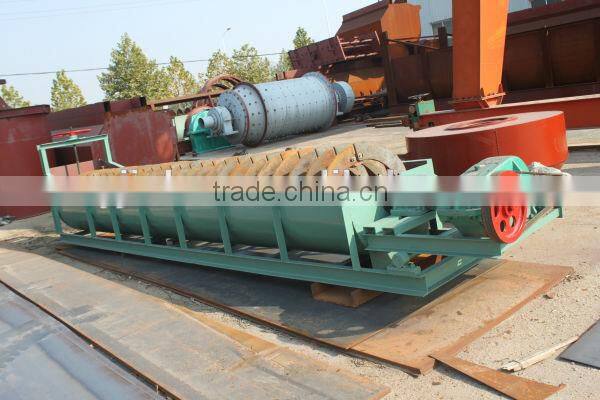

Spiral Classifier— Introduction

Classifying equipment takes use of the different sedimentation speed of the solid particle in slurry.

Spiral Classifier— Product improvement

An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.

Spiral Classifier— Product Application

The overflow spiral blade is higher than overflow level, and the overflow spiral center is lower than overflow surface. The high wire spiral classifier is applied in the classification of ore with particle size 0.83-0.15mm.

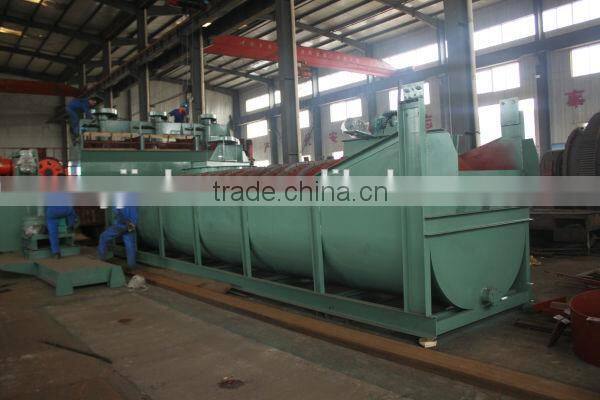

Spiral Classifier— Working Principle

The grinded pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow weir is above the bearing center which is under screw shaft, and is underneath overflow end.

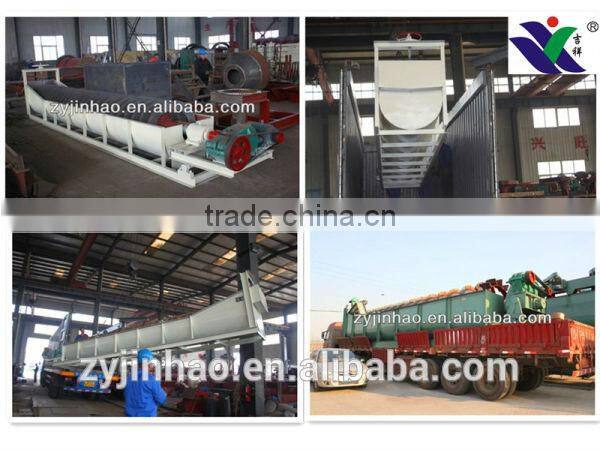

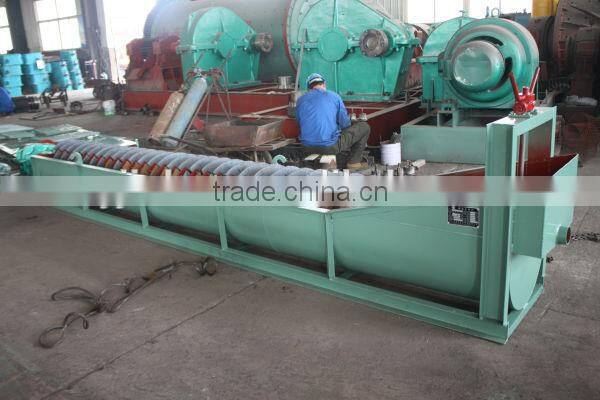

Spiral Classifier— Product Structure
High weir spiral classifier as the ancillary equipment of grinding to pre-classifying and check classifying is also applied in de-mudding and dewatering.

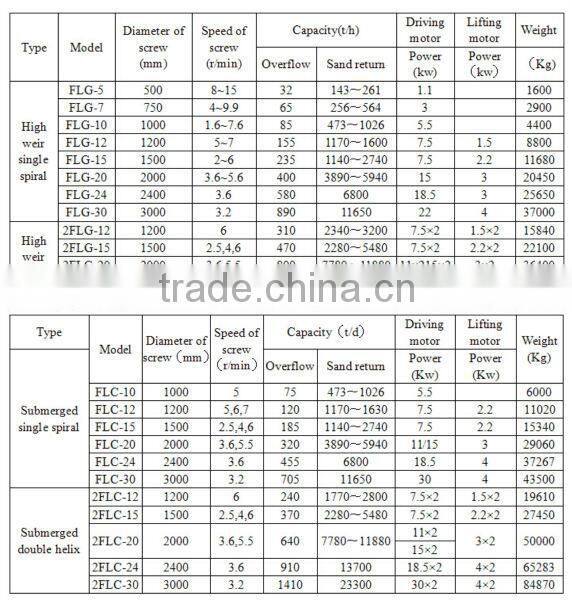

FLG spiral classifier technology parameter table

model	standard	screw diameter (mm)	Speed of Screw (r/min)	water tank (mm)		angle of bank (°′)	Production Capacity (t/d)		Driving Motor		winding motor		weight(kg)
model	standard	screw diameter (mm)	Speed of Screw (r/min)	length	width	angle of bank (°′)	Weir loading	Circulating Load	model	powerkw)	model	power(kw)	weight(kg)
FLG-5	φ500	500	8~15	4500	555	14°~18°30′	32	143~261	Y90L-6	1.1	hm		1600
FLG-7	φ750	750	4~9.9	5500	830	14°~18°30′	65	256~564	Y132S-6	3	hm		2900
FLG-10	φ1000	1000	1.6~7.6	6500	1112	14°~18°30′	85	473~1026	Y132M2-6	5.5	hm		4400
FLG-12	φ1200	1200	5~7	6500	1372	14°~18°30′	155	1170~1600	Y160M-6	7.5	Y90L-4	1.5	8800
FLG-15	φ1500	1500	2~6	8265	1664	14°~18°30′	235	1140~2740	Y160M-6	7.5	Y100L1-4	2.2	11680
FLG-20	φ2000	2000	3.6~5.6	8400	2200	14°~18°30′	400	3890~5940	Y160L-4	15	Y100L2-4	3	20450
FLG-24	φ2400	2400	3.6	9130	2600	14°~18°30′	580	6800	Y180M-4	18.5	Y100L2-4	3	25650
FLG-30	φ3000	3000	3.2	12500	3200	14°~18°30′	890	11650	Y180L-4	22	Y113M-4	4	37000
2FLG-12	φ1200	1200	6	6500	2600	14°~18°30′	310	2340~3200	Y160M-6	7.5×2	Y90L-4	1.5×2	15840
2FLG-15	φ1500	1500	2.5,4,6	8250	3200	14°~18°30′	470	2280~5480	Y160M-6	7.5×2	Y100L-4	2.2×2	22100
2FLG-20	φ2000	2000	3.6,5.5	8400	4280	14°~18°30′	800	7780~11880	Y160L-6/4	11×215×2	Y100L2-4	3×2	36400
2FLG-24	φ2400	2400	3.67	9130	5100	14°~18°30′	1160	13600	Y180M-4	18.5×2	Y100L2-4	3×2	45874
2FLG-30	φ3000	3000	3.2	12500	6300	14°~18°30′	1785	23300	Y180L-4	22×2	Y112M-4	4×2	73030

Ore dressing process

Raw ores→ Raw ore bin/storage → Chute feeder → Jaw crusher(First crushing) →Belt conveyor → Jaw crusher(Second crushing) → Belt conveyor → Raw ore bin/storage →Feeder(Choose one in Swaying feeder or disk feeder) →Ball mill → Spiral classifier → RJ agitation tank → BSK flotation(crude selected)→ SF flotation(fine selected)→ 50PNJ pump → Thickener → agitation tank → dual impeller agitation tank→ Desorption electrolytic equipment
