Home > Products > Gravity Seperation Equipment > Simple/Compact Strong Convenience Diaphragm Jig
Simple/Compact Strong Convenience Diaphragm Jig
- 30 Set / Sets per Month
- Qingdao;Yantai;Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 98% | Place of Origin | Shandong, China | |
| Brand Name | JI XIANG | Power(W) | 1.1-2.2 kw | |
| Weight | 745-1400 kg | Certification | ISO9001:2008 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

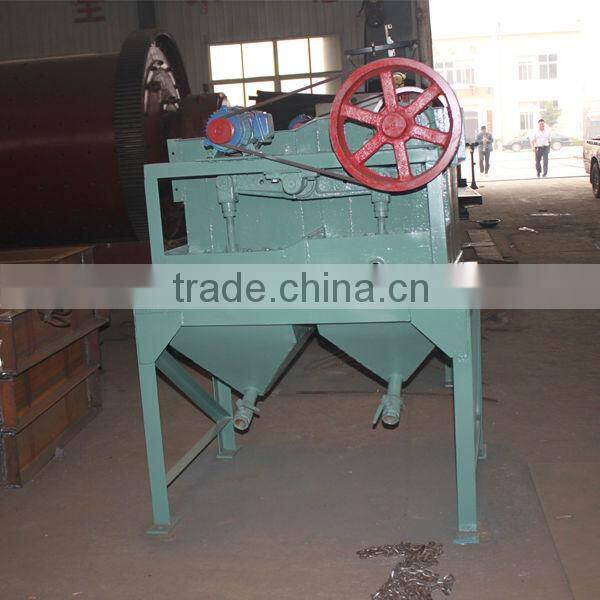

Simple/Compact Strong Convenience Diaphragm Jig
Diaphragm jig is a type of side moving (upper moving) rectangular model.With good separation
effect and convenient maintenance, it is widely used for recovering valuable ore with fine grain size
in the gold separation plant, separating rough concentrate in the gold placer,and recovering monomer
coarse gold in advance by being arranged in the grinding classification loop of the rock gold ore
dressing.According to the size of the ore was treated,you can change the connecting rod stroke and
choose different stroke, in order to obtain the best effect of jig.The method of changing the stroke is
replace small belt wheel,there are two kinds of stroke:322 t/min; 420t/m.
Our diaphragm jig is divided into two types:single ducket and double ducket.The jig is fixed sieve
type.It is suitable for grading metal ores,such as tungsten,gold ores,tin and other selected,not only
can be used for the separation of fine materials,but also can be used for selection of coarse materials,
the maximum feed size is 68mm,but in some cases selected the sands,the maximum size is 12mm.
Contact Us
- Yantai Jinhao Mining Machinery Co., Ltd.
- Contact nameAlva Lee Chat Now
- Phone86-535-8381910
- AddressNo.389 of JinLong Road, ZhaoYuan, ShanDong Province, Yantai, Shandong
