Flotation Mining Machine Xjk New Designed Flotation Cell
- Qingdao Yantai Tianjin
- T/T
You May Like
-
Copper Ore Flotation Machine Xjk Beneficiation Flotation Machine
-
Flotation Machine Xjk Customers Flotation Tank
-
Copper Ore Flotation Equipment Xjk New Designed Laboratory Flotation Machine
-
Copper Floatation Machine Xjk Featured Products Froth Flotation Machine
-
Fine Selection Floatation Machine Xjk 2016 Flotation Machine
-
Flotation Mining Machine Xjk Mining Equipment
Product Details
| Condition | New | Type | Flotation Separator | |
| Production Capacity | 100T/h | Place of Origin | Shandong, China | |
| Brand Name | JIXIANG | Model Number | XJK | |
| Voltage | Request | Power(W) | Power | |
| Dimension(L*W*H) | Size | Weight | single groove MIN 1.1T | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
cheap price XCF type new designed flotation cell
Product Details:
The new designed flotation cell is the main device to achieve the flotation process, the ore particles after wet grinding has been basic monomer dissociation is modulated into a certain concentration, fully used with flotation agentia in a stirred tank ,then fed to the new designed flotation cell , in which have the aeration and mixing, making ore grain in the surface has been affected by the collector to the bubble attachment, mineralized foam layer is formed in the pulp surface, scrapping off with a scraper, can achieve a foam product of fine mine.powerful design and development, manufacturing, installation and commissioning, technical maintenance, unscheduled return visit, strict quality assurance and efficient after sales service of Kefan Heavy bf new designed flotation cell , slime new designed flotation cell , mining new designed flotation cell , xcf new designed flotation cell , inflatable new designed flotation cell , every aspect have done the meticulous arrangements, and solve a series worries of customer.
Working principle of new designed flotation cell :
When the impeller rotating, may produce vortex in the vertical tube and the draft tube,the vortex formate negative pressure ,inhale air into the trachea, and mixed with ore pulp inhaled through diversion pipe in the impeller and the stator region . The mixture stream of plasma gas form a tangential direction by the impeller to move, and then converted into a radial movement by the stator, and evenly distributed in the new designed flotation cell . Mineralized bubbles rise to the foam layer, unilateral or bilateral scrapings is the product of the bubble.


Product Structure

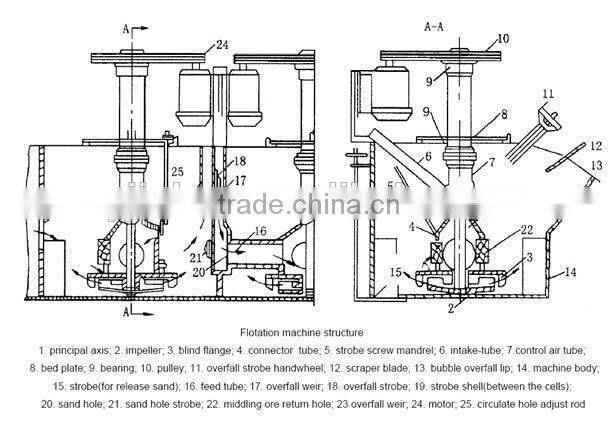

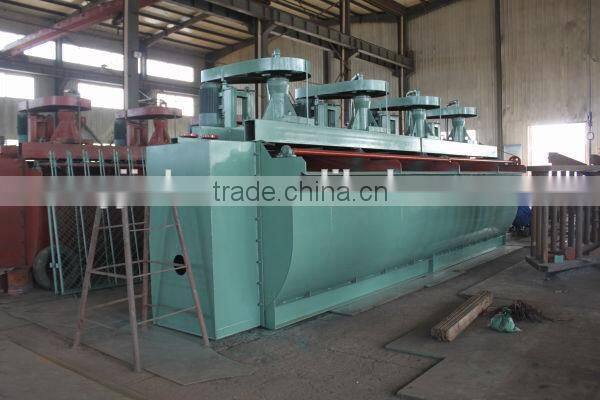

Flotation machine is mainly made up of the tank, the impeller, stator, dispersed cover, false bottom, draft tube, vertical tube, adjustable ring. The new designed flotation cell of Kefan Heavy Industry advanced technology and high quality is of big inspiratory capacity , low power consumption. Each tank have triple features of inhaling air , inhaling pulp and flotation , forming flotation circuit, without any auxiliary equipment, level configuration, easily for process changing. Circulation of ore pulp is reasonable and reduce precipitation of coarse sand farthest . There is controlled device of pulp surface, easily to adjust. Impeller with backward inclined top and bottom blade. Top blade produce pulp cycle up,bottom blade pulp cycle down.

Technical Parameters
XJK(A) type new designed flotation cell technical parameter table
model | Volume tank (m3) | Impeller Diameter (mm) | Production Capacity (m3/min) | Impeller speed (r/min) | Driving Motor | Scraper motor | Inner Dimension (mm)(L×W×H) | Weight of single tank (kg) | ||
model | power(kw) | model | power(kw) | |||||||
XJK-0.13 | 0.13 | 200 | 0.05~0.16 | 593 | Y90L-4 | 1.5 | Y80M2-4 | 0.75 | 504×520×700 | 266 |
XJK-0.23 | 0.23 | 250 | 0.12~0.28 | 504 | Y100L2-4 | 3.0 | Y80M2-4 | 0.75 | 604×620×820 | 389 |
XJK-0.35 | 0.35 | 300 | 0.15~0.5 | 500 | Y90L-4 | 1.5 | Y80M2-4 | 0.75 | 700×700×906 | 430 |
XJK-0.62 | 0.62 | 350 | 0.3~0.9 | 400 | Y132S-6 | 3.0 | Y90L-6 | 1.1 | 820×900×1156 | 630 |
XJK-1.1 | 1.1 | 500 | 0.6~1.6 | 330 | Y132M2-6 | 5.5 | Y90L-6 | 1.1 | 1100×1100×1269 | 1300 |
XJK-2.8 | 2.8 | 600 | 1.5~3.5 | 280 | Y160L-6 | 11.0 | Y100L-6 | 1.5 | 1750×1600×1450 | 2325 |

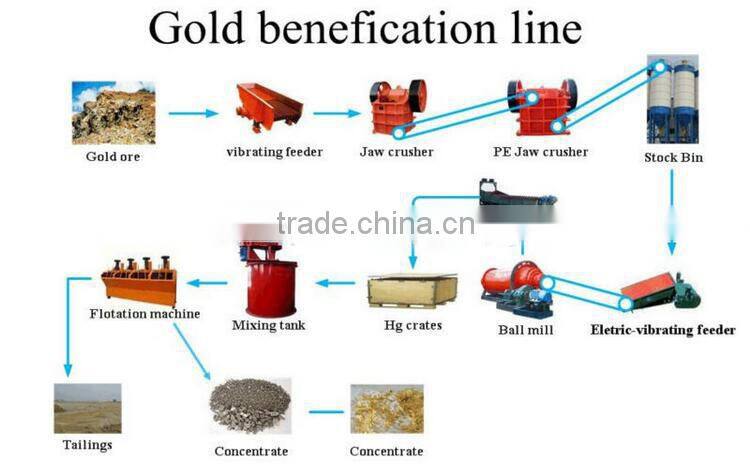

Raw ores→ Raw ore bin/storage → Chute feeder → Jaw crusher(First crushing) →Belt conveyor → Jaw crusher(Second crushing) → Belt conveyor → Raw ore bin/storage →Feeder(Choose one in Swaying feeder or disk feeder) →Ball mill → Spiral classifier → RJ agitation tank →SF flotation(crude selected) →BSK flotation(fine selected)→ 50PNJ pump → Thickener → agitation tank → dual impeller agitation tank→ Desorption electrolytic equipment

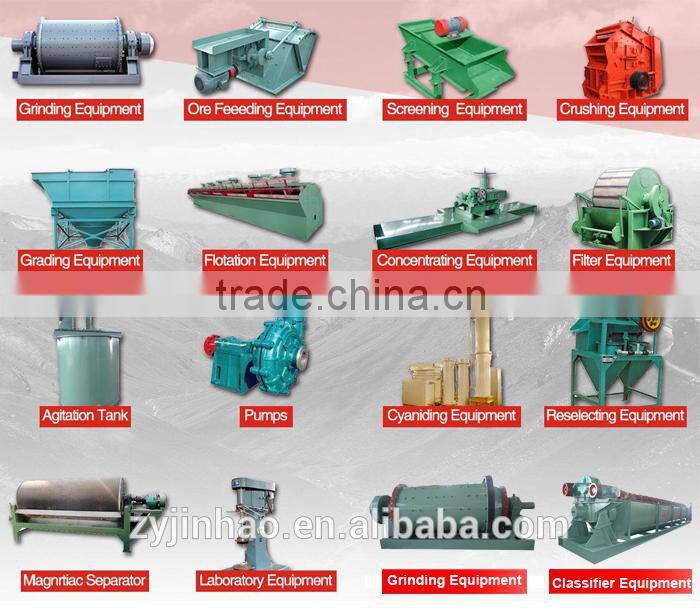

- Feeding equipment
- Screening equipment
- Crushing machine
- Grinding equipment
- Spiral classifier
- Floating equipment
- Stirred tank
- Thickening equipment
- Cyaniding equipment
- Gravity separation equipment
- Magnetic separator
- Hydrocyclone
- Filter equipment
Our company take lead in getting the ISO9001: 2008 international quality management system ccertification. Ball mill was named " Famous Brand of Shandong province”. Our products has Exported to over 30 countries and always hold the leading position in the mining machinery industry. Our company enjoyed a reputation of "civilized Integrity of Private Enterprises", "Trustworthy Enterprises", "Consumer Satisfaction Enterprise", "Private Enterprise Bright Star " , "Management Units ", and "Advanced Unit in Financial Contribution "
Business Scope
We provide all set of machinery for ore dressing and relevant service including ore test, beneficiation plant design, installation support and commissioning maintenance service . These products are widely appled in crushing machinery, screening machinery, milling equipment, classifying equipment, floatation cell, agitation tank, gravity separation equipment, magnetic equipment, thickening equipment, filtration equipment, leaching equipment for gold mine selection, gold-smelting equipment, dressing equipment for non-ferrous ore, cement equipment, feeding equipment and other mining equipment.

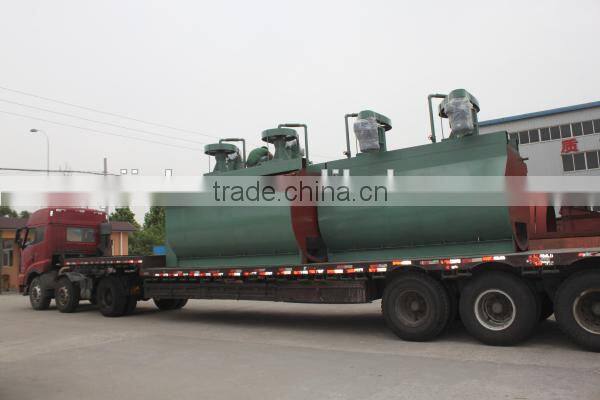

Payment Terms & Shipment

Pre-sale services
We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale services
We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After-sale services
We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Welcome to contact us for more information
Contact Us
- Yantai Jinhao Mining Machinery Co., Ltd.
- Contact nameAlva Lee Chat Now
- Phone86-535-8381910
- AddressNo.389 of JinLong Road, ZhaoYuan, ShanDong Province, Yantai, Shandong
