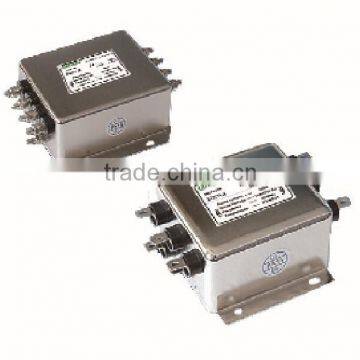

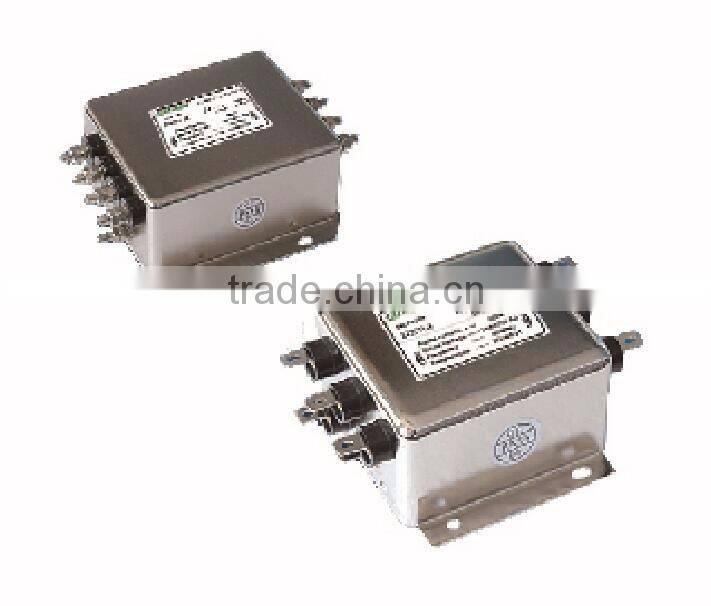

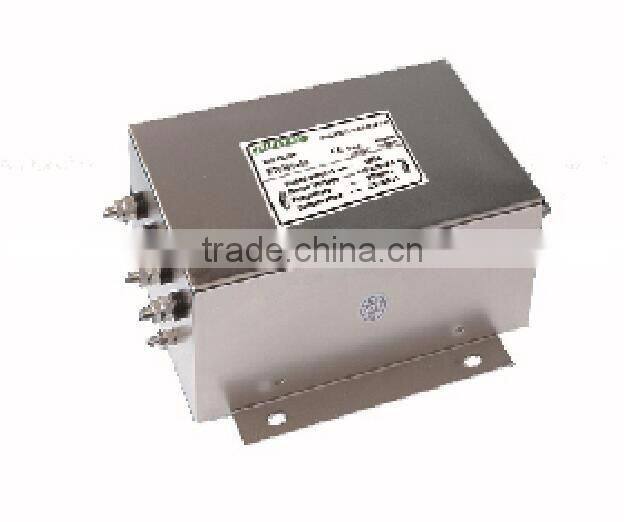

EMC AC 3 Phase 4 Line EMI Filters 2 Stage
- Qingdao. Shanghai
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


EMC AC 3 Phase 4 Line 3 Stage Series Anti-electromagnetic Interference Filters
 -


Hot Selling Antenna Filter With Low Price
 -


Professional Moca Rfi Filter With High Quality
 -


High-efficiency Industrial 3 Phase Inverter Electrical Filter With CE Certificate
 -


OEM Service Servo Drives Filter With Professional Design
 -


ODM Service Output rf Emc Filter High-end

Product Details
| Place of Origin | Shandong, China | Brand Name | EMC AC 3 Phase 4 Line EMI Filters 2 Stage | |
| Model Number | BT9201-10 |
Product Description
EMC AC 3 Phase 4 Line EMI Filters 2 Stage  | |



 Features & Applications
 - Low leakage current, good performance of suppressing common mode and differential mode interference.
 - Three-phase with neutral line
 - Widely used in machine tool device, inverter power supply, inverter equipment, industrial equipment, medical appliance and so on.
 - Certification :
  | |
Technical data
Rated Voltage  | Rated Current@40℃  | Test Voltage  | Climatic Category  | Operating Frequency  | ||
440VAC  | 1 – 400A  | Line-line  | Line-neutral  | Line-ground  | 25/085/21  | 50/60Hz  |
2250VDC  | 1760VDC  | 2700VDC  | ||||
Product Overview  | |||||
Part No.  | Rated Current@40℃  | Leakage Current 250VAC/50Hz@20℃  | Termination  | ||
Stud  | |||||
BT9201-10  | 10A  | <2.0mA  | M4  |
  | |
BT9201-20  | 20A  | <2.0mA  | M4  |
  | |
BT9201-50  | 50A  | <4.0mA  | M6  |
  | |
BT9201-100  | 100A  | <8.0mA  | M8  |
  | |
BT9201-150  | 150A  | <12.0mA  | M10  |
  | |
BT9201-200  | 200A  | <12.0mA  | M10  |
  | |
BT9200-6  | 6A  | <2.0mA  | M4  |
  | |
BT9200-10  | 10A  | <2.0mA  | M4  |
  | |
BT9200-20  | 20A  | <4.0mA  | M4  |
  | |
 BT9200-50  | 50A  |  <4.0mA  | M6  |
  | |

Certifications  | |||
After-sale Service  | |||

 You can contact our after-sale service dept. within 24 hours a day by by telephone, email or online.

  |
Packing & Delivery  | ||
 Delivery Detail:
 - The lead time will be within 14 to 30 working days after your deposit.
 - We could provide transport service by sea or by air, including to-door service. We have our channel discount with many express companys.


 Packaging Details:
 1. safe export carton with strong partition board to aviod hit 2. non fumigation pallet 3. carton+pallet to be safe enough 4. 2 or 3 layers corrugated inner carton box; wooden box available upon request with extra cost 5.customized designs for packings are also warmly welcomed.
  | ||
Our Company  | |
 Idpro put a high value on developing and applying new sci-tech. We have our own R&D dept. so to ensure that we bring new-tech into our producing in time. Our service covers manufacturing, marketing and technical consulting of products in EMC field.
 We could provide you:
 - Military and civilian EMI filters - OEM & ODM products - Ideal EMC solutions and reliable EMC practice experience - High-efficiency EMC products
  | |
  |
