Product Details
| Place of Origin | Shandong, China | Brand Name | BTEREMC | |
| Model Number | BT7103i-1 |
Product Description

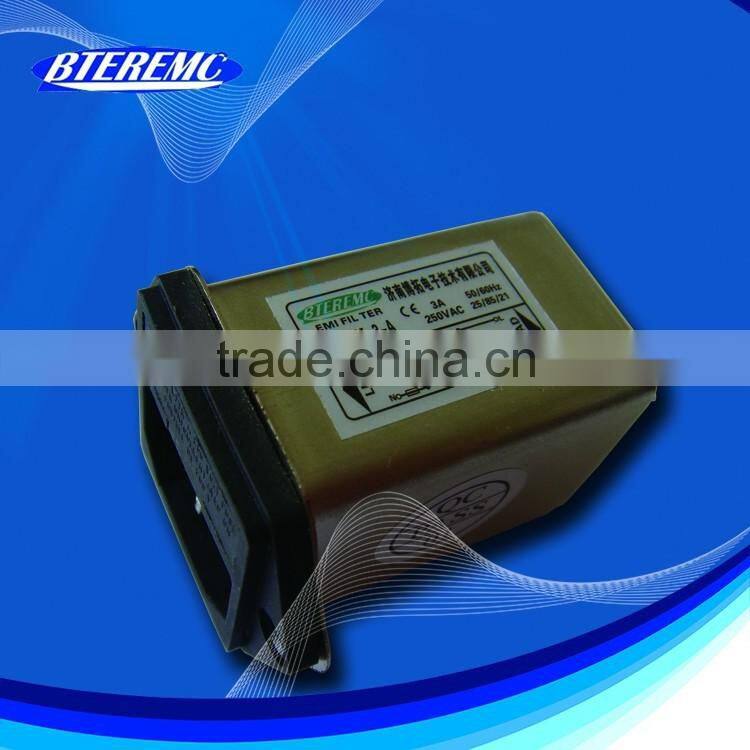

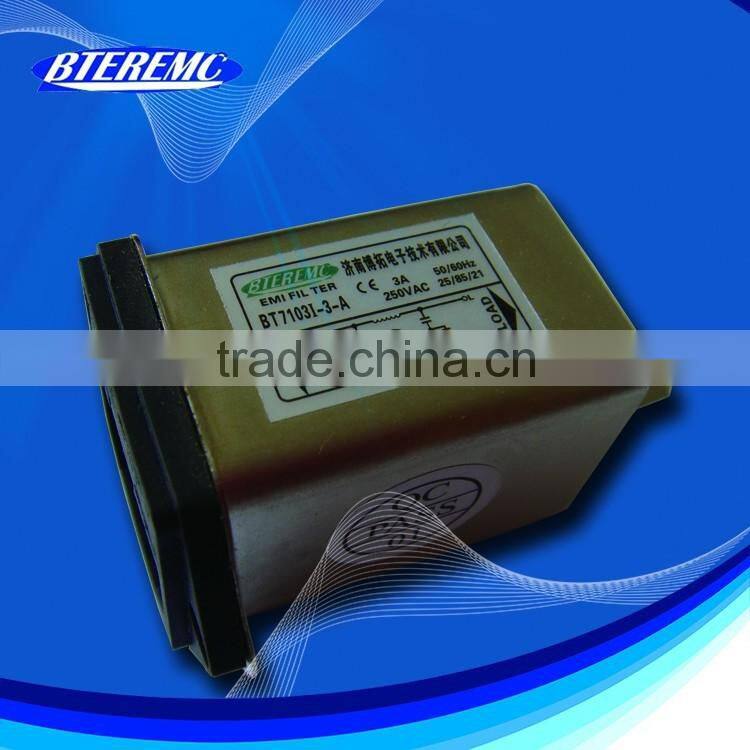

IEC Socket Serifes Filters for Medical Appliances EMI Filter  | |


 Features & Applications
 - Specially designed for IEC standard connector.
 - Small size, compact structure, easy to install and cost-effective.
 - Medical appliances optional.
 - Certification :   | |
Technical data
Rated Voltage  | Rated Current@40℃  | Test Voltage  | Climatic Category  | Operating Frequency  | |
110/250VAC  | 0.5 – 16A  | Line-line  | Line-ground  | 25/085/21  | 50/60Hz  |
1500VDC  | 1500VAC  | ||||
Product Overview  | |||||
Part No.  | Rated Current@40℃  | Leakage Current 250VAC/50Hz@20℃  | Termination  | ||
BT7103i-1  | 1A  | <0.5mA  | O  | ----  | ----  |
BT7103i-3  | 3A  | <0.5mA  | O  | ----  | ----  |
BT7103i-6  | 6A  | <0.5mA  | O  | ----  | ----  |
BT7103i-10  | 10A  | <0.5mA  | O  | ----  | ----  |
BT7103i-15  | 15A  | <3.0mA  | ----  | O  | ----  |
BT7103i-16  | 16A  | <3.5mA  | ----  | ----  | O  |

Certifications  | |||
After-sale Service  | |||

 You can contact our after-sale service dept. within 24 hours a day by by telephone, email or online.

  |
Packing & Delivery  | ||
 Delivery Detail:
 - The lead time will be within 14 to 30 working days after your deposit.
 - We could provide transport service by sea or by air, including to-door service. We have our channel discount with many express companys.


 Packaging Details:
 1. safe export carton with strong partition board to aviod hit 2. non fumigation pallet 3. carton+pallet to be safe enough 4. 2 or 3 layers corrugated inner carton box; wooden box available upon request with extra cost 5.customized designs for packings are also warmly welcomed.
  | ||
Our Company  | |
 Idpro put a high value on developing and applying new sci-tech. We have our own R&D dept. so to ensure that we bring new-tech into our producing in time. Our service covers manufacturing, marketing and technical consulting of products in EMC field.
 We could provide you:
 - Military and civilian EMI filters - OEM & ODM products - Ideal EMC solutions and reliable EMC practice experience - High-efficiency EMC products
  | |
  |
