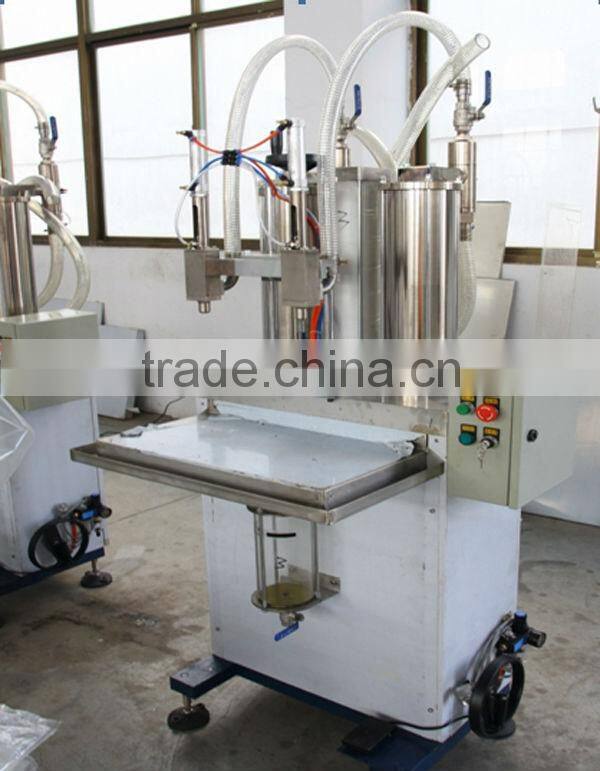

Semi-automatic Filling Machine / Bottling Machine for Oil

Specifications

Semi-automatic filling machine / bottling machine for oil
1.Filling capacity:800-40000b/h
2.Filling size:0.5L-25L
3.CE ISO

Introduction:

This machine is widely used for the quantitative packaging for vegetable oil, lubricants, chemical products; applicable to filling of multiple varieties, with simple operation, unique design, superior performance.

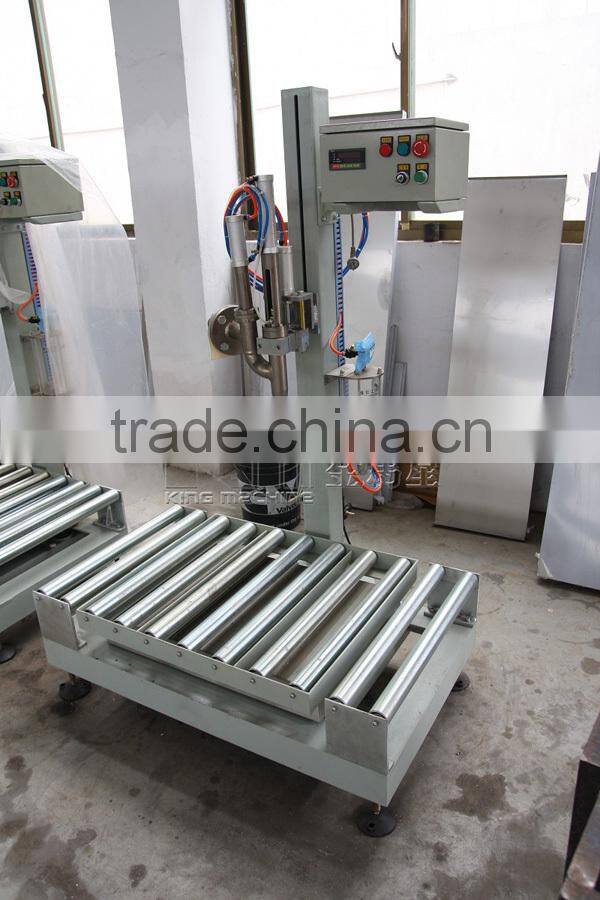

Model SZ SERIES Weighing fixed amount filling machine is a product integrating mechanical electrical,apparatus which have combined filling,electronic weighing & measuring,electronic display,Which have introduced international technique after national order of forbidding use of lever scales.
All weighing sensors and intellectual meters of this machine are products of METTlER TOLEDO of U.S.A.The filling head of our co. has obtained national patent with patent number of 972356762.
This machine has applied fluorescent screen,which has good brightness.light touch film type key board has applied durable resin material which has good property of resisting physical or chemical damages.It can show the increasing weight until fixed(set)amount.Such data as set amount,rapid filling amount and pre-filled amount are adjustable.The application scope is rather wide,it can be used for large size and medium size barrel filling of viscous or non-viscous,erosive or nonabrasive liquid.

Parameter:

1. Output : Vacuum filling ways: the capacity will be 300 litre/h

2. Precision standard of filling: ≤0.5%(calculate as 1000ml, actual filling precision can reach to ≤0.3% )

3. Viscosity range: 0-2500 centipoises

4. Controlled by plc made in Japan.

5. The machine has leakage prevention device which has “National patented” leakage prevention filling head.

6. Filling heads: 1 or 2 heads

7. Power: 380/220V , 90w

8. Air resource ≥0.5mpa , 0.3 m³/min

9. Bottle shape : round bottle or square bottle or more special design

10.Bottle size : from 0.5L to 50L

11.The filling machine dimension : 800x700x1800 mm

12.The weight of the filling machine : 200kg

13.Specification on Electronic components

Configuration:

Picture:

Certificates:
