Home > Products > Juice Filling Machine > High Quality Small Orange Juice Production Machine / Plant Quality Choice
High Quality Small Orange Juice Production Machine / Plant Quality Choice
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage, Food, Other, Beverage, Food, Machinery & Hardware, Alcohol / wine | |
| Packaging Type | Bottles, Cans | Packaging Material | Glass, Metal, Plastic | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 3PHASE | Power | 4.2KW | |
| Place of Origin | Jiangsu, China | Brand Name | kingmachine | |
| Model Number | SYY | Dimension(L*W*H) | 2500*2000*2350mm | |
| Weight | 2500kg | Certification | CE,ISO,SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
red wine filling machine
High Quality Small Orange Juice Production Machine / Plant
High Quality Small Orange Juice Production Machine / Plant

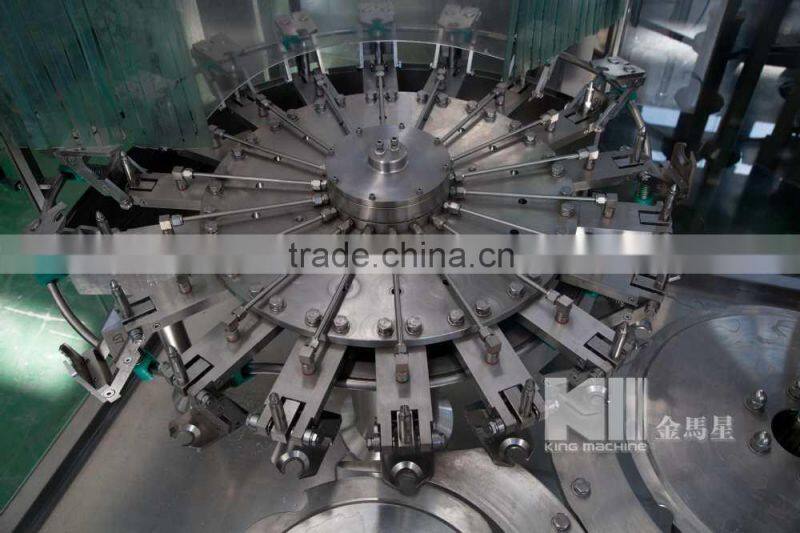

This RCGF Wash-filling-capping 3-in-1unit:Vodka Machinery is used to produce alcoholic beverage machinery and other non-gas beverage machinery in glass bottle ,The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

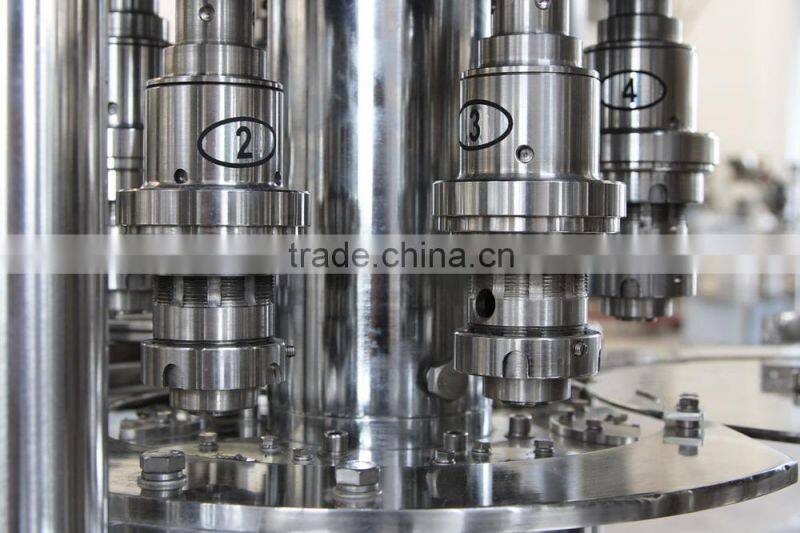

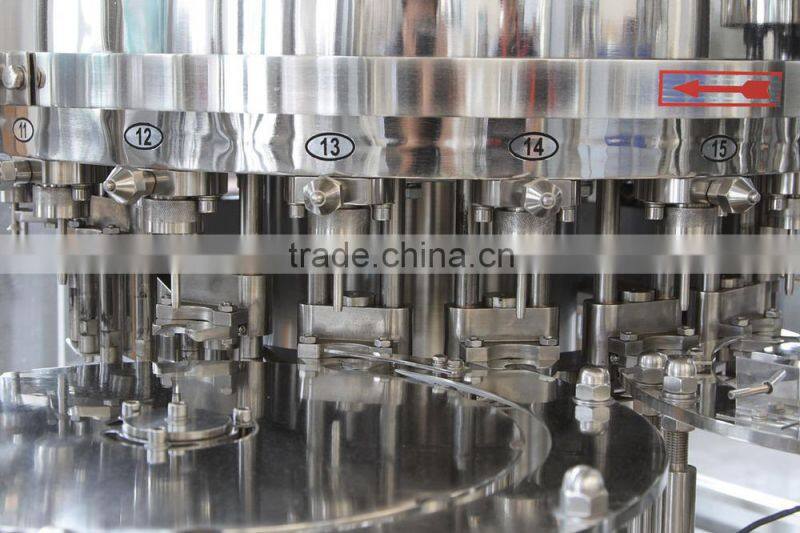

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical parameters:
Model | Washing heads | Filling heads | Capping heads | Capacity(b/h) 500ml | Motor power (KW) | Overall dimension (mm) |
BFG6-6-1 | 6 | 6 | 1 | 500-700 | 1.5KW | 2100x1400x2500 |
BFG14-12-4 | 14 | 12 | 4 | 1500-2000 | 2.2KW | 2460x1720x2650 |
BFG16-16-5 | 16 | 16 | 5 | 2500-3000 | 3KW | 3100x2100x2650 |
BFG18-18-6 | 18 | 18 | 6 | 4000-5000 | 4KW | 3500x2500x2650 |
BFG24-24-8 | 24 | 24 | 8 | 6000-8000 | 7.5KW | 4600x1800x2650 |
BFG32-32-10 | 32 | 32 | 10 | 10000-12000 | 9.5KW | 5200x4500x3400 |
1.Your inquiry related to our product & price will be replied within 24hours
2.Well-trained & experienced staff are to answer all your inquiries in English of course.
3.Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
4.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
5.Your business relationship with us will be confidential to any third party.
6.Good after-sale service offered, please get back if you got question.
Company Name:Zhangjiagang King Machine Co., Ltd.
Address:No.1 Haixin North Road, Electromechanical Economic Development Zone, Nanfeng Town, Zhangjiagang City, Jiangsu Province, China.
Website: / http://kingmachine.en.china.cn/
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
