Full Automatic Plastic Pipe Socket Machine /Expanding Machine
- Shanghai
- T/T L/C
You May Like
-
Full Automatic PVC Pipe Socket Machine /Expanding Machine
-
Full Automatic PVC Pipe End Forming Machine/Expanding Machine
-
Manual Type Pet Bottle Blowing Machine / Making Machine Quality Choice
-
Automatic Oil Bottle Blower Making Machine / Production Line
-
Automatic 4 Cavities Blowing Machine / PET Bottle Blower
-
Automatic Bottle Blowing Machine / Equipment
Product Details
| Type | Pipe Belling Machine | Pipe Material | PVC | |
| Application | Energy Supply Pipe | Place of Origin | Jiangsu, China | |
| Brand Name | KINGMACHINE | Model Number | ZSJ | |
| Certification | CE,ISO |
Product Description
Specifications
Plastic pipe socket machine1. semi and automatic for choice
2. R, Z, U type mould
3.Used for pvc ,pe ,pp pipe
4.CE,ISO
plastic pipe socket machine

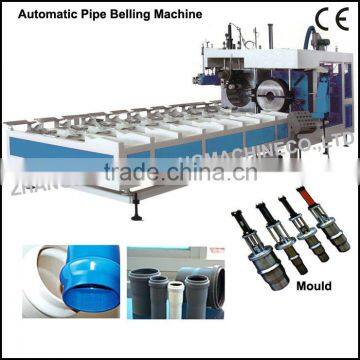

Automatic Plasitc Pipe Socket Machine/Expanding machine
Features and application:
Automatic belling machine,equipped with the the correspondent supporting material traction devices of the maine machine and the corresponding interface, it can use with the main machine with the crowned on -line and also as a single machine. Billing pipe all can translate with smooth movement and it will not damage the pipes. Heating furnace uses cycle hot fan ways to heat. Forming meathods all use head type fixed with correct pipe head fixed. This machine on the control panel has expansion solvent faucet ( direct jaws ) and expanded flexibility for the ring-type jack (R I) of the switch,the expansion of choice is very convenient method, process adaptability.The main electrical control devices are used imported components, stable and reliable system performance.
Technical parameters:
NO. | Name | Description |
1 | Apply to pipe spec. | Φ16, Φ20, Φ25, Φ32, Φ40, Φ50,Φ63 |
2 | Apple to pipe length | 4~6m |
3 | Oil pump motor power | 3KW |
4 | Oil pump specification | VP1-70 vane pump, rating pressure:7.0MPa, Flux of oil pump:40L/min |
5 | Oven electrical heating power | 12KW*2PCS |
6 | Max. Temperature of heating air | 320°C |
7 | Power of rotate pipe motor | 0.18KW*2PCS |
8 | Power of traction pipe motor | 0.55KW |
9 | Electrical control system | Adopt Japanese Mitsubishi FX1N-60MR PLC to Controlling |
10 | Oil Pump and oil valve | TAIWAN Famous Brand |
11 | Main electricity part | Schneider Middle relay , breaker and AC contactor |

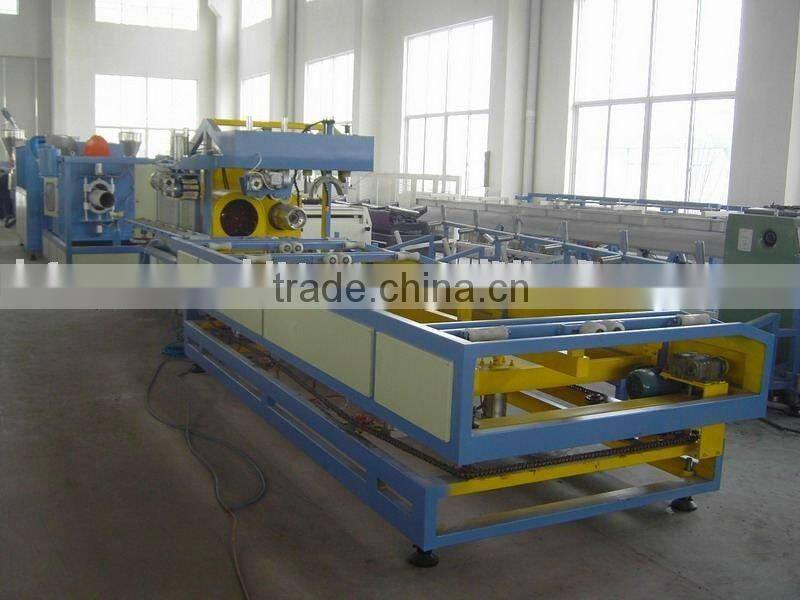

Photos:
