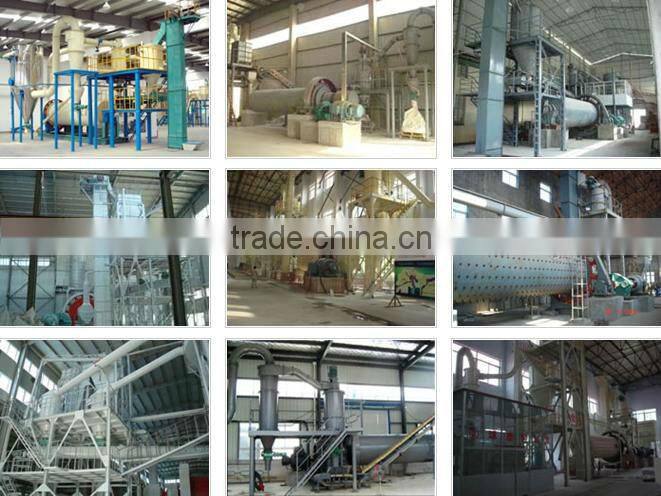

2100*3600 Shanghai DingBo Black Metal Ball Mill From Professional Manufacturer
- Shanghai
- T/T
You May Like
-
Ball Mill for Iron Oxide Red, Iron Oxide Red Processing Plant
-
Glass Ceramics Ball Mill From Professional Manufacturer
-
Forged Steel Balls for Ball Mill,small Ball Mill,ball Mill Balls
-
Ball Mill Construction,ball Mill Working,ball Mill for Glass
-
Rubber Fine Grinder,fine Powder Grinder,powder Grinder
-
Small Fine Grinder,fine Rubber Powder Grinder,fine Grinder Mill
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 15-800 kw | |
| Capacity(t/h) | 0.5-90 | Place of Origin | Shanghai, China | |
| Brand Name | Dingbo | Model Number | 900*1800-3200*4500 | |
| Weight | 3.4-137 t | Certification | CE& ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
ball mill Packing:The products will be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates-the big parts are wrapped by plastic sheeting
Product Description
Black Metal ball mill
Product Description
1 Ball mill is an efficient toll for grinding many materials into fine power. The ball mill is used to grind many kinds of mine and other material, or to select the mine.
2 It is widely used in building material, chemical industry, etc. there are two ways of grinding: the dry process and the wet process.
3 It can divided into tabular type and flowing type according to different forms of discharging material.
Ball Mill Application
The Ball Grinding mill can grind the following non-inflammable and non-explosive materials, such as:
a) Minerals: limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaoline, medical stone, rock phosphate, etc.
b) Metallurgy materials: manganese ore, iron ore, etc.
c) Chemical materials: active carbon, carbon black, etc.
d) Building materials: glass, ceram, fireproof materials, heat preservation materials, etc.

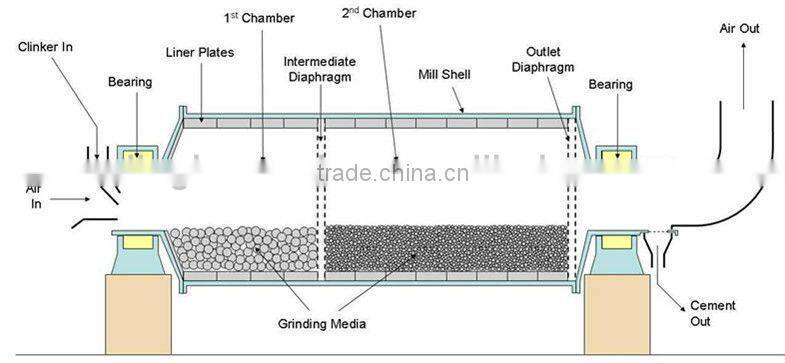

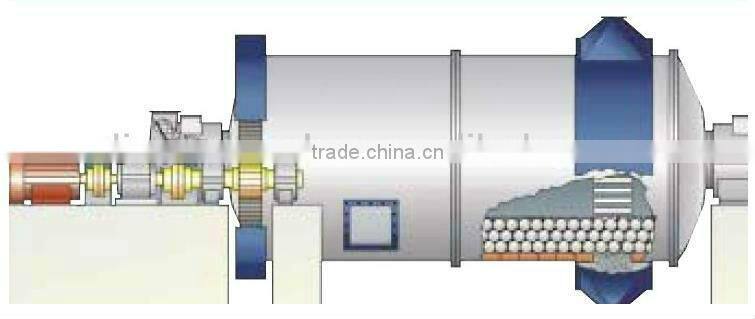

Working Principle
1. The ball mill, a horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside rens along gear.
2. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse, there is a ladder scale board or ripple scale board.
3. When the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to grind and strike the materials.
4. After being grinded coarsely in the first warehouse, the material then enter into the second warehouse for regrinding with the steel ball and scale board.
5. In the end, the power is discharged by output material board and the end products are competed.
Main Technical Parameter
| Model | Max.Feeding Size(mm) | Output Size(t/h) | Ball Load (t) | Rotary Speed (r/min) | Motor Power (kw) | Capacity (t/h) | Weight(t) |
| 900*1800 | ≤15 | 0.075-0.89 | 1.9 | 37 | 15 | 0.5-2 | 3.4 |
| 900*2100 | ≤15 | 0.075-0.4 | 2.3 | 37 | 18.5 | 0.4-2 | 3.9 |
| 1200*2000 | ≤25 | 0.075-0.4 | 3.85 | 35 | 30 | 1.1-2.5 | 7.78 |
| 1200*2400 | ≤25 | 0.075-0.4 | 4.6 | 35 | 30 | 1.3-3.2 | 8.65 |
| 1200*2800 | ≤25 | 0.075-0.4 | 5.4 | 35 | 37 | 1.5-3.7 | 10.02 |
| 1200*4500 | ≤25 | 0.075-0.4 | 8.6 | 35 | 45 | 2.7-6.79 | 14 |
| 1500*3000 | ≤25 | 0.047-0.4 | 9 | 29 | 75 | 3.3-8.2 | 14.122 |
| 1500*3500 | ≤25 | 0.047-0.4 | 10.5 | 29 | 75 | 3.3-8.5 | 15.636 |
| 1500*4500 | ≤25 | 0.047-0.4 | 13.5 | 29 | 90 | 4.5-12 | 20 |
| 1500*5700 | ≤25 | 0.047-0.4 | 17 | 29 | 110 | 2.6-14 | 25 |
| 1830*3000 | ≤25 | 0.047-0.4 | 13.5 | 24 | 135 | 4-15 | 28 |
| 1830*4500 | ≤25 | 0.047-0.4 | 20 | 24 | 155 | 4-19 | 32 |
| 1830*7000 | ≤25 | 0.047-0.4 | 31.5 | 24 | 210 | 6.22 | 37.5 |
| 2100*3000 | ≤25 | 0.075-0.4 | 18 | 22 | 210 | 6.4-28 | 40.79 |
| 2100*3600 | ≤25 | 0.047-0.4 | 21.5 | 22 | 210 | 7.6-28 | 43.454 |
| 2200*3600 | ≤25 | 0.047-0.4 | 25 | 20.7 | 245 | 5.2-32 | 44 |
| 2200*7000 | ≤25 | 0.047-0.4 | 46 | 20.7 | 380 | 15-38 | 54 |
| 2400*3600 | ≤25 | 0.047-0.4 | 28 | 19 | 320 | 8-60 | 47 |
| 2400*4500 | ≤25 | 0.047-0.4 | 35 | 19 | 380 | 8.5-60 | 65 |
| 2700*4000 | ≤25 | 0.047-0.4 | 40 | 20.7 | 400 | 12-80 | 94 |
| 2700*4500 | ≤25 | 0.047-0.4 | 48 | 20.7 | 430 | 12-90 | 102 |
| 3200*4500 | ≤25 | 0.047-0.4 | 65 | 18 | 800 | According to the process conditions | 137 |
Welcome to Shanghai DingBo

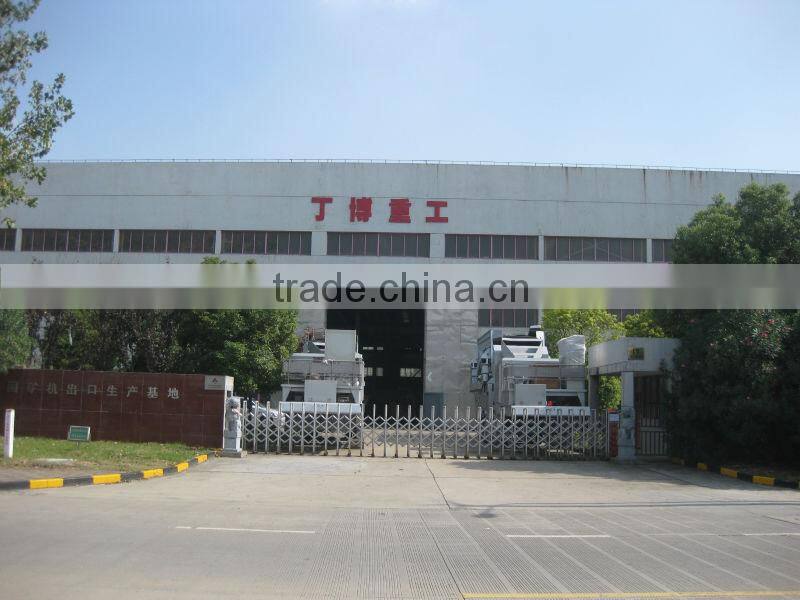

Company Profile
Shanghai Dingbo Heavy Industry Machinery Co., Ltd., located in Pudong New District of Shanghai, China, is a large enterprise specialized in the research, manufacture and sales of stone crushing and screening plants,coarse grinding mill and ultrafine powder mill equipments, covering an area of forty thousand square meters. As one of the pioneer manufacturers, we have been engaged in crushers and micron grinding mills for over 20 years. And we still insist on the communication and cooperation with prestigious scientific research institutions to strengthen the ability in machinery design, production, maintenance, testing and reform. With several years' efforts, Dingbo now grows to be a first-class manufacturer of machineries with a complete advanced production system for superb equipment. Our popular products include: 1) Stone crushers: jaw crushers, hammer crushers, impact crushers, roller crushers, cone crushers, fine stone crushers, vertical combination crushers, vertical impact crushers and so on. 2) Grinding mills: ball mills, cement mills, ceramic mills, raymond mills, micropowder mills and so on. 3) Ore beneficiation machines: magnetic separators, flotation machines, spiral chutes, spiral classifiers, shaking tables, mixed barrels, jiggers, centrifugal separators and so on. 4) Screens: vibrating screens, drum screens, rotary screens, linear screens and so on.
