Home > Products > casting grinding ball > High Cr Casting Steel Ball

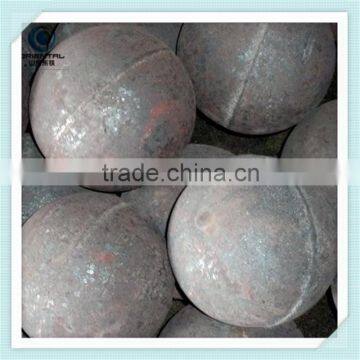

High Cr Casting Steel Ball
- Qingdao
- T/T
You May Like
-
Oriental cast iron grinding ball/grinding media/steel balls
-
Oriental medium chrome grinding balls
-
Oriental wear resistant grinding media balls for cement/ coal power
-
(17-150mm)High/middle/low chrome casting steel ball for cement plants
-
Low chrome casting steel balls(17-150mm)
-
(17-150mm)middle chrome casting steel ball
Product Details
| Place of Origin | Shandong, China | Brand Name | Oriental | |
| Model Number | Dia17-150mm | Application | Mines,Cement Plants,Power Stations,Chemical Industries Ect | |
| Material | Steel | Dimensions | Dia17-150mm |
Product Description
Chemical elements:
NAME | BRAND | CHEMICAL ELEMENTS % |
| |||||||
C | Si | Mn | Cr | Mo | Cu | Ni | P | S | ||
HIGH Cr CASTING IRON BALL | ZQCr26 | 2.0~2.8 | ≤1.0 | 0.5~2.0 | 22~28 | 0~1.0 | 0~2.0 | 0~1.5 | ≤0.10 | ≤0.06 |
HIGH Cr CASTING IRON BALL | ZQCr20 | 2.0~2.8 | ≤1.0 | 0.5~2.0 | 18~22 | 0~2.5 | 0~1.2 | 0~1.5 | ≤0.10 | ≤0.06 |
HIGH Cr CASTING IRON BALL | ZQCr15 | 2.5~3.2 | ≤1.0 | 0.5~2.0 | 10~17 | 0~3.0 | 0~1.0 | 0~1.5 | ≤0.10 | ≤0.06 |
MIDDLE Cr CASTING IRON BALL | ZQCr8 | 2.1~3.2 | 0.5~2.2 | 0.5~2.0 | 6~10 | 1~1.0 | 0~0.8 | 0~1.5 | ≤0.10 | ≤0.06 |
LOW Cr CASTING IRON BALL | ZQCr2 | 2.2~3.6 | ≤1.2 | 0.5~2.0 | 1.0~3.0 | 0~1.0 | 0~0.8 | - | ≤0.10 | ≤0.10 |
BAINITE DUCTILE CASTING IRON BALL
| ZQSi3 | 3.2~3.8 | 2.0~3.5 | 2.0~3.0 | - | - | - | - | ≤0.10 | ≤0.03 |
Mechanical Properties:
NAME | BRAND | SURFACE HARDNESS(HRC) | ENDURANCE IMPACT TEST(TIMES) | |
QUENCHED | UNQUENCHED
| |||
HIGH Cr CASTING IRON BALL | ZQCr26 | ≥56 | ≥45 | ≥8000 |
HIGH Cr CASTING IRON BALL | ZQCr20 | ≥56 | ≥45 | ≥8000 |
HIGH Cr CASTING IRON BALL | ZQCr15 | ≥56 | ≥49 | ≥8000 |
MIDDLE Cr CASTINGIRON BALL | ZQCr8 | - | ≥48 | ≥8000 |
LOW Cr CASTING IRON BALL | ZQCr2 | - | ≥45 | ≥8000 |
BAINITE DUCTILE CASTING IRON BALL
| ZQSi3 | ≥50 | - | ≥8000 |
Characteristics:
High Hardness Good Wear Resistance No Breakage Even Wearing
Production process:
Applide field:
Mines Cement Plants Power Stations Chemical Industries
Packages of casting iron balls:
(1)1000KG BAGS
(2)STEEL DRUMS(850-900KGS/DRUM)
1.Free sample for your test before orders;
2.Soonest delivery time ;
3.Cooperate with many famours shipping companies,and sent the goods to your port in time;
4.Any feedback after sales would get our soonest reply
Certification:
