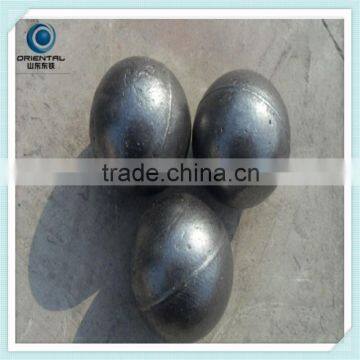

China Oriental Chrome Steel Balls with Oil Quench
- Qingdao
- T/T
You May Like
Product Details
Place of Origin | Shandong, China | Brand Name | Oriental | |
Model Number | Dia17-150mm | Application | Mines,Cement Plants,Power Stations,Chemical Industries Ect | |
Material | Steel | Dimensions | Dia17-150mm |
Product Description
A.Chemical elements:
(1)Low Chromium Casting Grinding Ball
Hardness: HRC45-55
Chemical Elements: C:2.2-2.5 Si:≤1.2 Mn:0.5-2.0 Cr:1.0-5.0 S:≤0.05 P:≤0.05
(2)Middle Chromium Casting Grinding Ball
Hardness: HRC52-60
Chemical Elements: C:2.2-3.3 Si:≤1.2 Mn:0.5-2.0 Cr:5.0-9.0 S:≤0.05 P:≤0.05
(3)High Chromium Casting Grinding Ball
Hardness: HRC60-65
Chemical Elements: C:1.6-3.3 Si:≤1.0 Mn:0.5-2.5 Cr:10-16 Mo:0.3-1.5 Cu:0.2-1 S:≤0.01 P:≤0.01
B.Characteristics:
High Hardness Good Wear Resistance No Breakage Even Wearing
C.Production process:
D.Applide field:
Mines Cement Plants Power Stations Chemical Industries
F.Mechanical Properties:
NAME | BRAND | SURFACE HARDNESS(HRC) | ENDURANCE IMPACT TEST(TIMES) | |
QUENCHED | UNQUENCHED | |||
HIGH CHROME CASTING IRON BALL | ZQCr26 | ≥56 | ≥45 | ≥8000 |
HIGH CHROME CASTING IRON BALL | ZQCr20 | ≥56 | ≥45 | ≥8000 |
HIGH CHROME CASTING IRON BALL | ZQCr15 | ≥56 | ≥49 | ≥8000 |
MIDDLE CHROME CASTINGIRON BALL | ZQCr8 | - | ≥48 | ≥8000 |
LOW CHROME CASTING IRON BALL | ZQCr2 | - | ≥45 | ≥8000 |
BAINITE DUCTILE CASTING IRON BALL | ZQSi3 | ≥50 | - | ≥8000 |
Packages of casting iron balls:
(1)1000KG BAGS
(2)STEEL BRUMS(850-900KGS/DRUM)
1.One of the largest manufacturers and exporters for forged steel ball products in China
2.The high quality of the products,Output:10000tons/mouth
3.Advanced production equipment and technology, The best credit guarantee
4.The most outstanding R & D team. Experienced development personnel,professional designers,salesman and skilled workers
1.Free sample for your test before orders;
2.Soonest delivery time ;
3.Cooperate with many famours shipping companies,and sent the goods to your port in time;
4.Any feedback after sales would get our soonest reply
Certification:
