China low price alloyed casting iron balls
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Oriental | |
| Model Number | Dia17-150mm | Application | Mines,Cement Plants,Power Stations,Chemical Industries Ect | |
| Material | Steel | Dimensions | Dia17-150mm |
Product Description

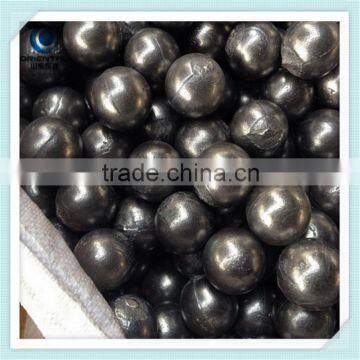

China low price alloyed casting iron balls:
Specifications:
1.Sizes:DIA17-150mm
2.Hardness: HRC58-67
3.Chemical elements:C . Si . Mn . P . S . Cr
4.Impact toughness: 3-6j/cm2
5.Endurance impact test: >12000
Our products:
1.HIGH CHROME CASTING IRON BAL
2.MIDDLE CHROMECASTINGIRON BALL
3.LOW CHROME CASTING IRON BALL
Characteristics:
High Hardness Good Wear Resistance No Breakage Even Wearing
Chemical elements:
Model | Chemical composition | |||||||
C | Si | Mn | Cr | Mo | Cu | P | S | |
Low-chromium casting strip | 2.2-3.5 | ≤1.2 | ≤1.5 | 0.8-3.5 | ≤1.0 | ≤0.5 | ≤0.15 | ≤0.15 |
Medium-chromium casting strip | 2.0-3.3 | ≤1.2 | ≤1.8 | 4.0-9.0 | ≤1.5 | v1.0 | ≤0.15 | ≤0.15 |
High-chromium casting strip | 1.6-3.3 | ≤1.0 | ≤2.5 | 10-18 | ≤1.0 | ≤1.5 | ≤0.10 | ≤0.10 |
Super high-chromium casting strip | 2.0-3.3 | ≤1.0 | ≤2.5 | 22-25 | ≤2.0 | ≤1.5 | ≤0.10 | ≤0.10 |
Mechanical Properties:
NAME | BRAND | SURFACE HARDNESS(HRC) | ENDURANCE IMPACT TEST(TIMES) | |
QUENCHED | UNQUENCHED
| |||
HIGH CHROME CASTING IRON BALL | ZQCr26 | ≥56 | ≥45 | ≥8000 |
HIGH CHROME CASTING IRON BALL | ZQCr20 | ≥56 | ≥45 | ≥8000 |
HIGH CHROME CASTING IRON BALL | ZQCr15 | ≥56 | ≥49 | ≥8000 |
MIDDLE CHROME CASTINGIRON BALL | ZQCr8 | - | ≥48 | ≥8000 |
LOW CHROME CASTING IRON BALL | ZQCr2 | - | ≥45 | ≥8000 |
BAINITE DUCTILE CASTING IRON BALL
| ZQSi3 | ≥50 | - | ≥8000 |
Sizes of casting balls:
ITEMS | SIZES | ||||||||||||||
f10 | f15 | Φ20 | Φ25 | Φ30 | Φ40 | Φ50 | Φ60 | Φ70 | Φ80 | Φ90 | Φ100 | Φ110 | Φ120 | Φ130 | |
TOLERANCE | +1.0 | +2.0 | +3.0 | +3.5 | |||||||||||
-0.5 | -1.0 | -1.0 | -1.5 | ||||||||||||
DIFFERENCE BETWEEN MAX DIAM AND MIN DIAM | ≤1.0 | ≤2.0 | ≤3.0 | ≤4.0 | |||||||||||
Applide field:
Mines,Cement Plants,Power Stations,Chemical Industries Ect
Packages of casting iron balls:
(1)1000KG BAGS
(2)STEEL BRUMS(850-900KGS/DRUM)
Production workshop:
Certification:
1.Free sample for your test before orders;
2.Soonest delivery time ;
3.Cooperate with many famours shipping companies,and sent the goods to your port in time;
4. Any feedback after sales would get our soonest reply
1.One of the largest manufacturers and exporters for forged steel ball products in China
2. The high quality of the products,Output:10000tons/mouth
3.Advanced production equipment and technology, The best credit guarantee
4. The most outstanding R & D team. Experienced development personnel,professional designers,salesman and skilled workers
