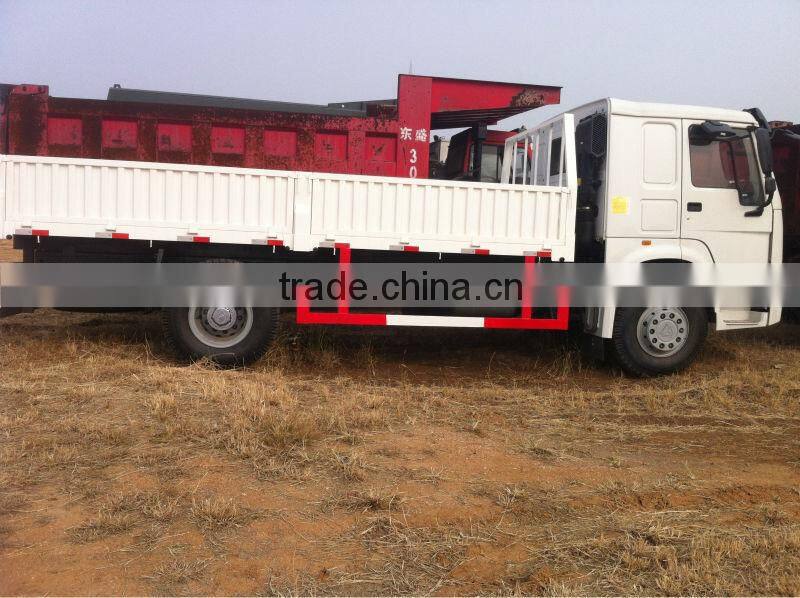

Chinese SINOTRUK 4*2 Cargo Truck 336HP With Powerful Engine

FOB Price

US$ 30,000 - 45,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Professional supplier with many years experience.
2. Standard materials make users comfortable.

Respective vehicle mumber		ZZ1167M4617C
Cab	Modle	HW76
	Type	Extended Cab, single berth, up/down and front/back adjustable steering wheel, VOD instrumentand control module, double locking safety belt, exterior sun visor.
Engine	Modle	WD615.95E
	Type	Six cylinders inline, two valve, supercharge intercooler, supercharge postposition.
	Displacement L	9.26
	Maximum torque (Nm)	290
Clutch		430diaphragm spring clutch, Hydraulic control air assisted
Transmission		SINOTRU HW series 10 gears Transmission, Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.
Suspension		Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer rear suspension is disconnected type with transverse stabilizer.
Steering system		ZF8098 steering gear, ZF steering oil pump, system pressure 18Mpa
Braking system		Service brake: dual circuit compressed air brake.
		Parking brake(emergency brake): spring energy, compressed air operating on rear wheels
		Auxiliary brake: engine exhaust brake
		Option: ABS
Electrical system		Voltage: 24V generator: 1540W battery: 12V/165Ah, 2 piece
Wheelbase (mm)		1800+5600
Front/rear suspension (m)		1.500/1.710
Gross Mass (kg)		50000
Kerb weight(vehicle/chassis)kg		9720
Maximum loading capacity(kg)		40000
*Complete vehicle External dimension(LWH) mm*		876524983290
*Body volume (mm): 560023001190*
