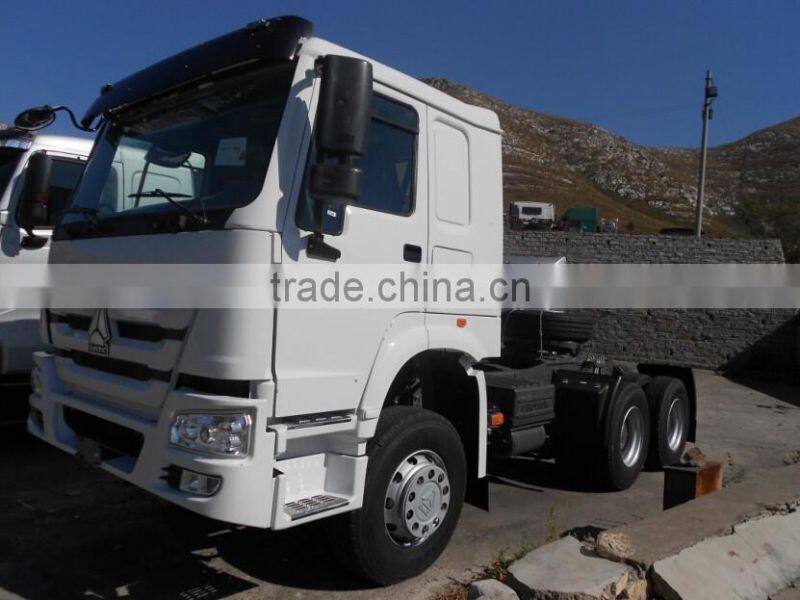

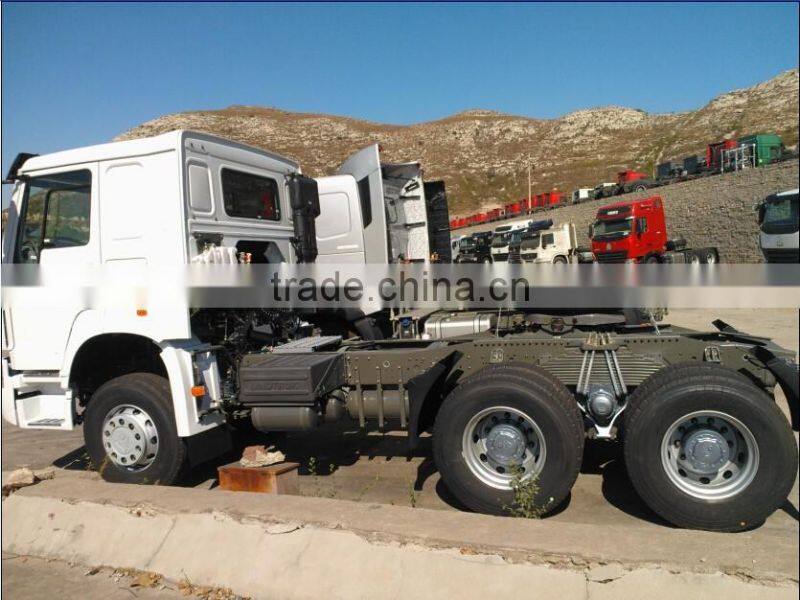

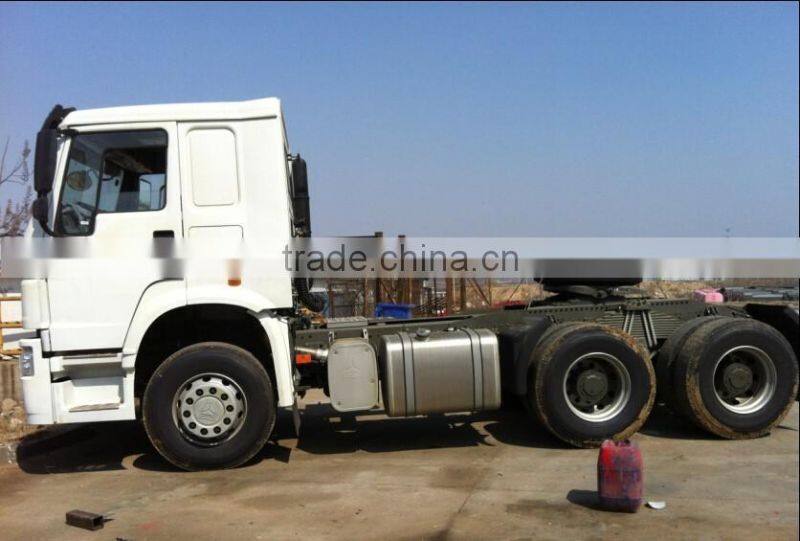

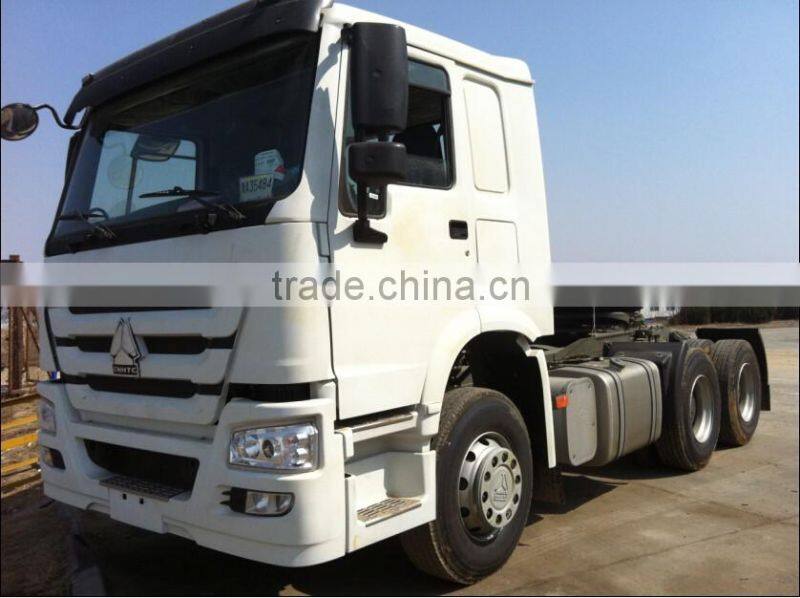

HOWO 6X4 Tractor Head

Item

SINOTRUK HOWO 6X4 420HP TRACTOR TRUCK

Chassis model

ZZ4257V3241W  2015 New Truck

Driving type

Left hand drive (LHD)

Color

Optional (yellow, red, black, white, blue, grey, green)

Engine

Model

SINOTRUK brand, WD615.69, 336hp, Euro II, Diesel.

Type

Six cylinders inline, water cooling, 4 stroke, supercharge intercooler

Engine net weight (kg)

850

Rated Power (kw/rpm)

247/2200

Maximum Torque (Nm)

1350N.m

Maximum Torque speed

1100~1600RPM

Compression ratio

17:01

Bore X Stroke

126x130mm

Displacement  L

9.726

Cabin

HW76, plat-roof cab, with one sleeper (berth), air-conditioner, MP3, safety belts, curtain. Adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers etc.

Transmission

HW19710, 10 F and 2 R, manual.

Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.

Front Axle

HR7, rated load 7000kg, disc brake.

Rear Axles

MCY13 rated load 13000x2, drum brake.

Steering

ZF8098 steering gear, ZF Steering pump, power steering with hydraulic system.

Brake system

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5 tire, plus one spare tire (totally 11 units)

Fifth wheel (towing pin)

90#

Fuel tank

400L volume

Towing Capacity

70T

External dimension

6800x 2500x3050 mm
