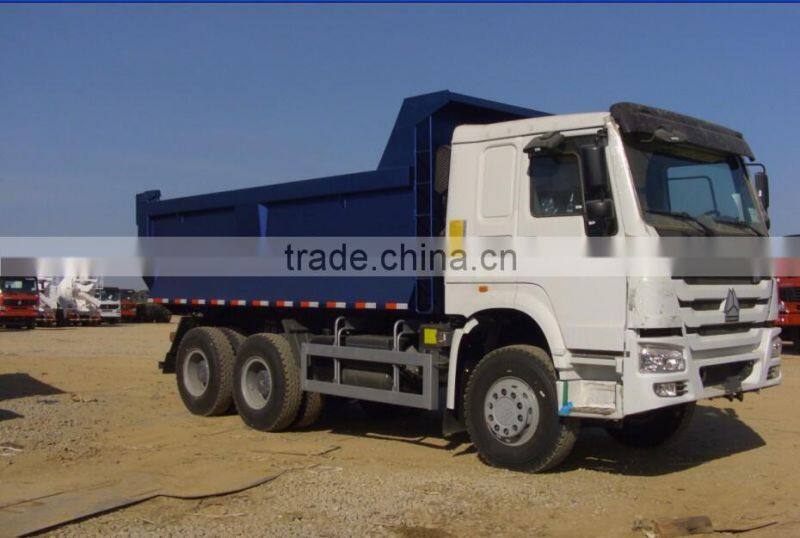

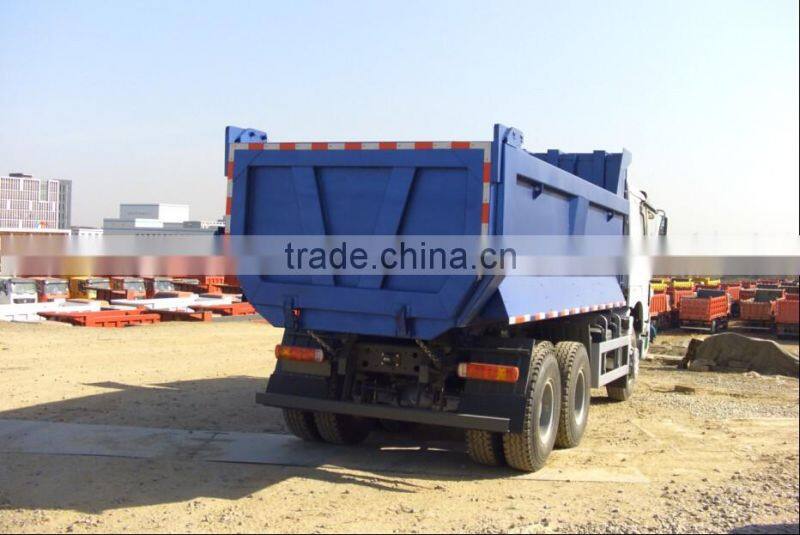

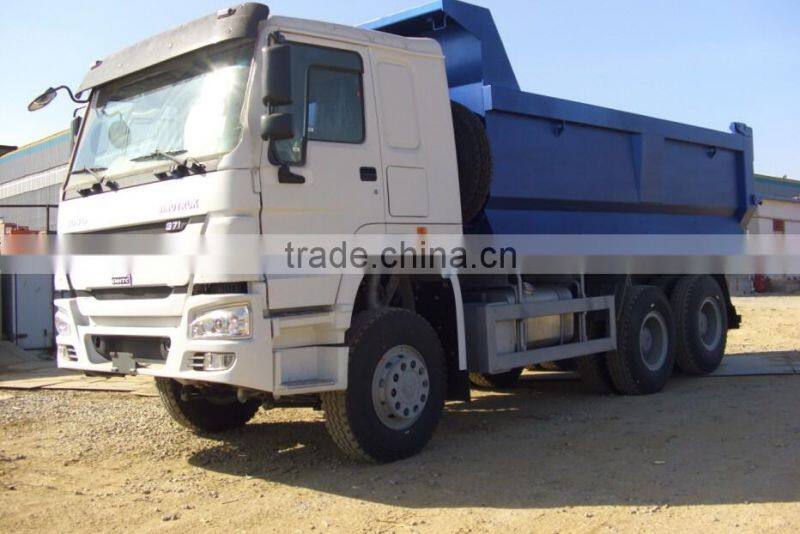

HOWO 6X4 Mining Dump Truck 336hp 371hp 380hp for Peru

Item

SINOTRUK HOWO 6X4 Mining Dump Truck

Color

Optional (Red, Black, Yellow, Green, White……)

Driving type

Left hand drive (LHD)

Engine

Make: SINOTRUK

Engine model: WD615.47, 371hp, Euro II

6-cylinder in-line with water cooling, turbo-charging and intercooling.

Cabin

HW76, extended cab, with one sleeper (berth), air-conditioner, numerical control instrument, MP3, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers, air suspension, etc.

Transmission

HW19710, 10 F and 2 R, manual,

Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.

Front Axle

HF9, rated load 9000kg, drum brake.

Rear Axles

AC16, rated load 16000kgX2. Speed ratio: 4.77

Wheelbase  (mm)

3200+1400

Steering

ZF8098, power steering with hydraulic system.

Braking System

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tire

12.00R20 steel radial tire, plus one spare tire (11 units)

Carriage box volume

5400X2300X1300 mm   Floor thickness: 8mm  Side thickness: 6mm

Lifting Model

Front Lifting or Ventral lifting

Fuel tank

300L volume

External dimension

8450x 2600x3450 mm
