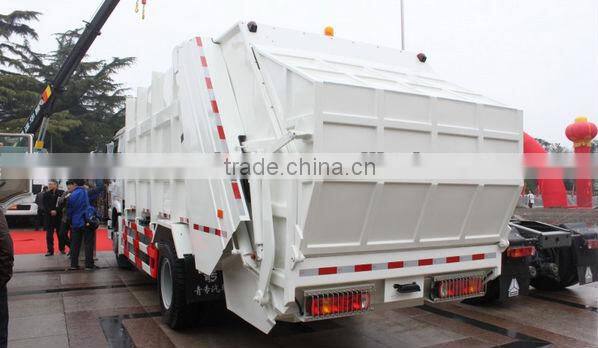

SINOTRUK 4X2 Compact Garbage Truck

Respective vehicle mumber

ZZ1167M4617C

Cab

Modle

                     HW76

Type

Extended Cab, single berth, up/down and front/back adjustable steering wheel, VOD instrumentand control module, double locking safety belt, exterior sun visor.

Engine

Modle

 WD615.95E

Type

Six cylinders inline, two valve, supercharge intercooler, supercharge postposition.

Displacement   L

9.26

Maximum torque (Nm)

290

Clutch

430diaphragm spring clutch, Hydraulic control air assisted

Transmission

SINOTRU HW series 10 gears Transmission, Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.

Suspension

Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer rear suspension is disconnected type with transverse stabilizer.

Steering system

ZF8098 steering gear, ZF steering oil pump, system pressure 18Mpa

Braking system

Service brake: dual circuit compressed air brake.

Parking brake(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Option: ABS

Electrical system

Voltage: 24V     generator: 1540W   battery: 12V/165Ah, 2 piece

Wheelbase (mm)

1800+5600

Front/rear suspension (m)

1.500/1.710

Gross Mass   (kg)

16000

Kerb weight(vehicle/chassis)kg

3720

Maximum loading capacity(kg)

15000

Complete vehicle External dimension(L*W*H)   mm

8765*2498*3290

Body volume (mm): 5600*2300*1190
