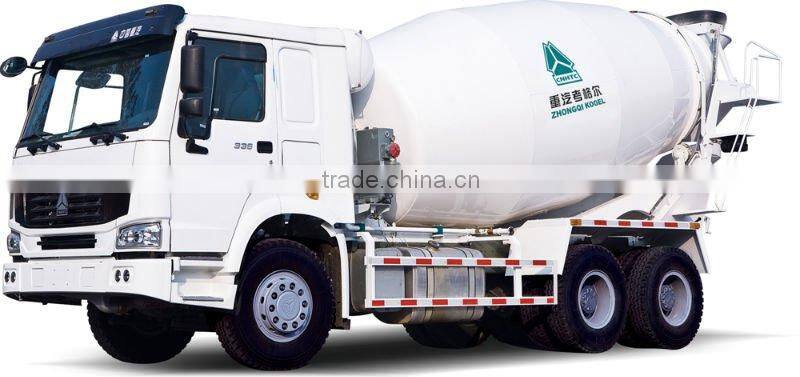

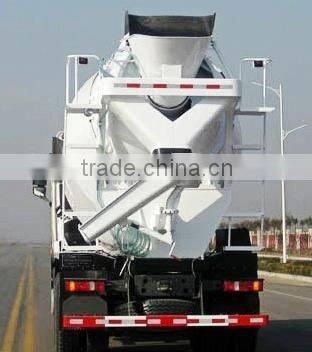

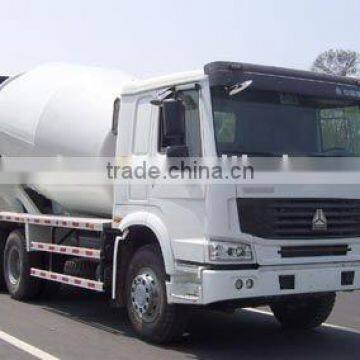

HOWO Concrete Mixer Trucks

Commodity

Chassis model

 ZZ1255M3645B

Cubage (CBM)

 9-10

Vehicle parameter

Overall dimension(length/width/height)mm

8765 ×2496×3850

Total mass (kg)

25000

Payload (kg)

11770

Kerb mass (kg)

13100

Approach/Departure angle (°)

20/26

Front/Rear Suspension (mm)

 1550/2240

Fuel type

diesel

100km fuel consumption (L)

Top speed

90

Engine parameter

Mode

WD615.62

Displacement/Power (kw)

9726/196,266HP

Manufacturer

CHINA NATIONAL HEAVY DUTY TRUCK GROUP CO., LTD

Type

Six-in-line supercharged inner-cooling diesel engine

Chassis discription

Drive type

6×4

Wheelbase (mm)

3625+1350

Tread(front/rear)

2022/1830

Front bridge

6.5 ton

Rear bridge

 16 ton double bridge

Steering gear

Steering power

transmission

Clutch

Power clutch

Braking system

Air-braking system

Cab

non-longheaded with cab

Number of spring axles(front/rear)

9/12,10/12

Tyre specification

11.00-20,11.00R20,12.00-20

Air condition

Choose to fix

Special capacity parameter

Mixer geometry cubage (CBM)

11-13

Mix cubage (CBM)

8-10

Max diameter of inner mixer (mm)

Mixer length (mm)

Tilting angle of mixer(°)

 15

Rotation speed (r/min)

 0~14

Slump (mm)

 70-260

Mixer material

High caborn steel

Mixer thickness

5mm

Leaves type

4.5mm

Ratation direction

Input clockwise, output un-clockwise

Leaves

Double spiral

Output capacity

5CBM/Hour

Discharge remain amount

1%Vertebroplasty dowm
