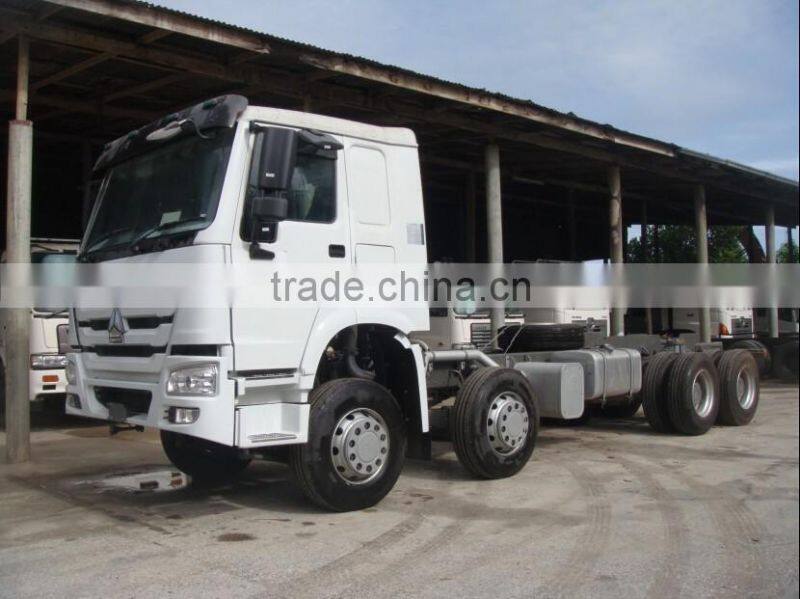

Heavy Duty HOWO 8x4 Truck Chassis

Item

SINOTRUK HOWO 8X4 Truck Chassis

Chassis model

ZZ1317N4667C  2016 New Truck

Driving type

Right hand drive (RHD)

Color

Optional (yellow, red, black, white, blue, grey, green)

Engine

Model

SINOTRUK brand, WD615.69, 336hp, Euro II, Diesel.

Type

Six cylinders inline, water cooling, 4 stroke, supercharge intercooler

Engine net weight (kg)

850

Rated Power (kw/rpm)

247/2200

Maximum Torque (Nm)

1350N.m

Maximum Torque speed

1100~1600RPM

Compression ratio

17:01

Bore X Stroke

126x130mm

Displacement  L

9.726

Cabin

HW76, plat-roof cab, with one sleeper (berth), air-conditioner, MP3, safety belts, curtain. Adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers etc.

Transmission

HW19710, 10 F and 2 R, manual.

Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.

Front Axle

HR9, rated load 9000kg, disc brake.

Rear Axles

HC16, rated load 16000x2, drum brake. Speed ratio: 4.42

Steering

ZF8118 steering gear, ZF Steering pump, power steering with hydraulic system.

Brake system

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12.00R20 steel radial tire, plus one spare tyre (totally 13 units)

PTO

Equipped with HW70 or HW50.

Fuel tank

400L volume

Loading Capacity

60T
