full stainless steel thermometer ss304 bimetal thermometer

FOB Price

US$ 5 - 50 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China	Brand Name	capillary bimetal thermometer
Model Number	WSS-511	Usage	Industrial
Theory	Bimetal Thermometer	Accuracy	±1.5℃
Temperature Range	-200 to 500℃

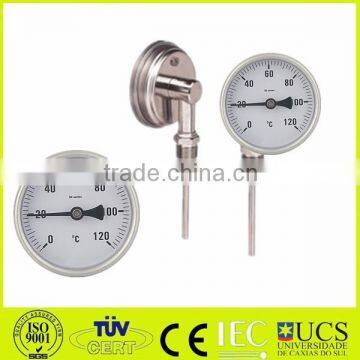

SS304 bimetal temperature thermometer

Detail Specification:

1. Bimetal Boiler Thermometer Probe
2.Dial Size: 100mm
3.Temperature:0-120C
4.Thread:1/2NPT
5.Stem Length:300mm
6.Stem Diameter:18.mm

7.back connection
other special details are customized

More Specification of Capillary Temperature Gauge

Dial:	2",2.5",3",4",5", and 6", aluminum
Case:	AISI 304 stainless steel
Lens:	Glass standard, Shatterproof Glass Len Is Available
Bezel:	AISI 304 stainless steel, hermetically sealed or detachable
Pointer:	Aluminum, painted black
Movement:	Bi-metallic coil
Stem:	AISI 304 stainless steel standard
Connection:	1/4"NPT standard on 2" dial, fixed centre back and bottom 1/2"NPT standard on 3", 4", 5" and 6" available, fixed centre back, bottom and adjustable angle.
Accuracy:	+/-1.5% full scale standard; +/-1% full Scale Available
Other:	With recalibrator-reset screw or without
Range:	From -80 C/0 C And 0 C/550 C

If you need more information about our products please feel free to contact me

Chongqing Haichen Instrument Co., Ltd.: Contact nameSerena Wang
Chat Now; Phone86-023-68261638; AddressNo. 10, Jinyun Rd.
