Minature PPTC resettable fuse
- 100000 Piece / Pieces per Month
- Shenzhen/HK
- T/T Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | REOMAX | |
Model Number | 0805 | Usage | Low Voltage | |
Breaking Capacity | Low | Safety Standards | IEC |
Blister taping package, color box packed outside
Product Description
Specifications
Minature PPTC resettable fuse* Electrical: 100mA-1A, 6V
* Approvals: UL/CSA/TUV
Minature PPTC resettable fuse
Features/Benefits:
Minature PPTC resettable fuse
> Directly solderable on printed circuit boards
> general purpose, PPTC resettable fuse
> electrical fuse
ELECTRICAL CHARACTERISTICS
SMD 0805 Resettable Series
Part Number |
|
|
|
|
| Maximum Time To Trip | Resistance | Agency Approval | |||
I hold (A) | Itrip (A) | Vmax (Vdc) | I max (A) | Pd max. (W) | Current (A) | Time (Sec.) | R min (Ω) | R typ (Ω) | R 1max (Ω) |
| |
SMD0805P010TF SMD0805P020TF SMD0805P035TF SMD0805P050TF SMD0805P075TF SMD0805P100TF | 0.10 0.20 0.35 0.50 0.75 1.00 | 0.30 0.50 0.75 1.00 1.50 1.95 | 15 9 6 6 6 6 | 100 100 100 100 40 40 | 0.5 0.5 0.5 0.5 0.6 0.6 | 0.50 8.00 8.00 8.00 8.00 8.00 | 1.50 0.02 0.10 0.10 0.20 0.30 | 1.000 0.650 0.250 0.150 0.090 0.060 | 3.500 2.000 0.750 0.500 --- --- | 6.000 3.500 1.200 0.850 0.350 0.210 | UL/CSA/TUV UL/CSA/TUV UL/CSA/TUV UL/CSA/TUV UL/CSA/TUV UL/CSA/TUV |
Gallery of Minature PPTC resettable fuse

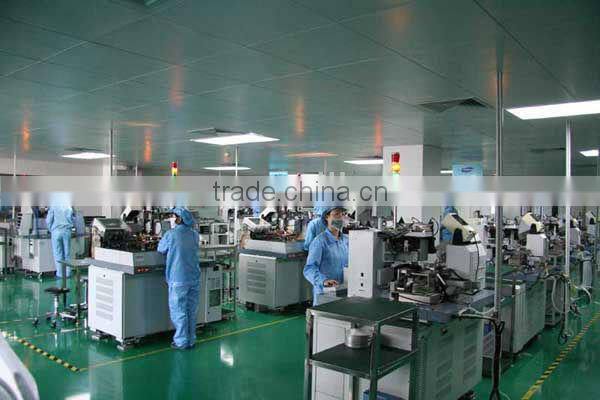

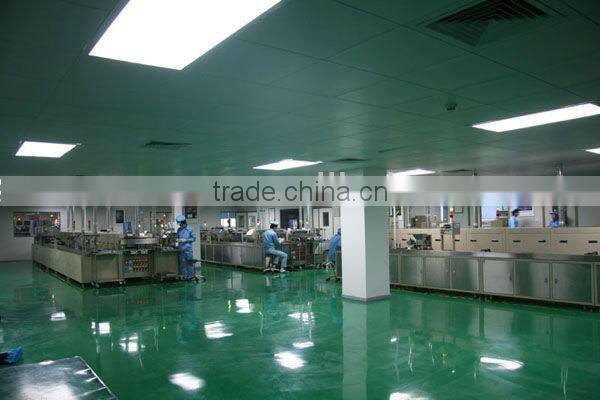

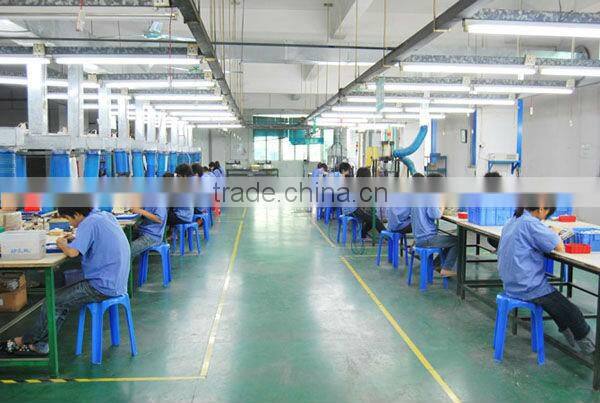

Factory Gallery
Specialist in the field of glass/ceramic tube fuse, auto fuse, thermal cutoffs, resettable fuse, Micro fuse, SMD fuse, fuse holder, fuse clip. Our factory adopts the high quality raw material from abroad and Taiwan region, with a number of advanced fuse manufacturing and testing equipments, perfect quality guarantee system is adopted to ensure that we produce each product safety and stability.
Company Profile

We are professional Manufacturer, Supplier, Exporter, Distributor of Circuit Protection Components in China. Main products include glass / ceramic tube fuses, thermal cutoffs, thermostats, automotive fuses, miniature fuses, SMD fuses, resettable fuses, fuse blocks, holders & clips. Dongguan Reomax Electronics Co.,Ltd.(REOMAX-HK) stepped into the mainland market in 1999. As a professional circuit protective components-fuses manufacturer, we own advanced equipments,scientific testing standards and high-quality staff team. To ensure the quality of products, the ISO9001:2008 quality management system operation was carried out. We have accumulated rich production experience after years of exploration and development.With the principle of "client first",constantly improving technology and perfect sales service,Reomax has won wide recognition of overseas customers. Reomax has brought in advanced equipments and excellent world advanced management experience.We take "the good faith,practical" as the enterprise management idea and "quality of survival,the product for development" as the enterprise principle. We focus on product safety and reliable performance, ensuring the product foolproof with safety performance. Our main products have passed UL,CUL,VDE,CCC,CQC,CE,PSE,KTL and ROHS and other international security authentication. Our products are widely used in power supply,switching power supply,chargers,transformers,computer,telephone,home appliances,communication products,lighting products,toys products,the LED energy-saving lamps,instruments and meters,electronic equipment,boards,all kinds of instruments and all kinds of electronic electric appliance connecting cables,motor products,IT,consumer electronics,automobiles and battery,etc. Reomax provides customers worldwide with excellent quality,competitive price,fast delivery and comprehensive after-sales service! In order to coordinate with the general customers conveniently, Reomax has set up dongguan factory to support mass production! Quality Concept: systematic manufacturing to ensure every product is high-quality goods. Market Concept: brand, service, honor. Service Tenet: To meet customer's requirements Service Aim: To provide "zero defect" products and thoughtful service for customers,which is the goal of the company even each employees unswervingly pursuing. The "reputation first, customer first, quality first" is always our service concept . With earnest and sincere cooperation,expanding innovation spirit of enterprise, we will do our best to make the products meet customers' requirements, and strive to be better and better. With the independent brand(Reomax fuse),we firmly believe that can offer you higher quality products and more professional circuit protection solutions,and we look forward to your inquiry and your calls;If you have any products and technical guidance demands,we will be zealous to provide our best services;waiting for your patronage!
