Hinged door with 3/8" thick glass shower door

Hinged door with 3/8" thick glass shower door

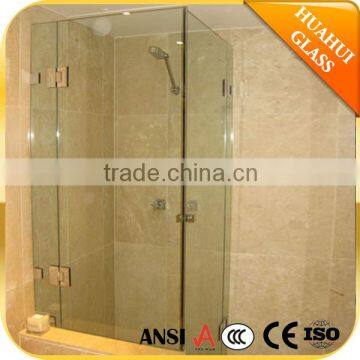

Hinged glass shower door

Size Specifications:

• The width of a single shower door can normally range between 22" (check your local code for a minimum width of a door for an entrance) and 36" is the maximum width due to the weight limits. Anything larger than 36" need to be divided into a door and a single pane adjacent to it, which would modify the configuration to an single shower door format.
• The height of the glass can range between the minimim size of your opening to maximum of 96". Standard height (most common maybe the better word) of a single glass shower door is 72". The maximum height of the door actually depends on the width as well and is closely related to the overall weight of the final product.

Frameless single shower doors, drawing

Hinged shower door Glass

Thickness Options

• 3/8" Thickness (standard) and 1/2" Thickness (heavy) are our most popular glass thickness options.
• Any glass thinner than 3/8" would need to be wrapped in aluminum extrusion to help stabilize the glass and therefore would be considered a framed shower door.

Shower glass thicker than 1/2" is not offered due to its weight being too heavy to be supported.

Hinged glass shower door

Most Popular Hardware Finishes

• Chrome
• Brushed nickel
• Oil rubbed bronze
• Brass

Glass Types

• Clear Glass
• Ultra-clear glass
• Acid etched or sand blasted glass
• Rain Glass
• Bronze Glass
• Gray Glass

Door Pull Types

• Shower door knobs
• Shower Door Handles
• Towel bar

Towel bar handle combo

Glass Works

Glass is cut to size and all sides are polished to a smooth high polish finish and if side hinges are being used, a mickey mouse cut is carefully cut into glass to hold the hinges and glass together. Depending on the size and location of the handle, a pull knob or a grab bar with various holes are drilled into the glass to provide for anchorage.
